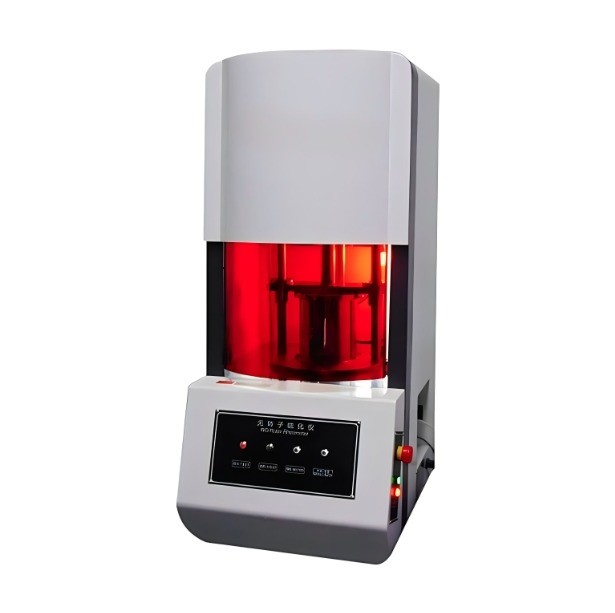

CF8536 Rotorless Vulcanization Tester for analyzing and measuring rubber vulcanization
Our Services
1. Ensure the high quality of the product.
2. Packaging can be done according to customer requirements and pictures can be attached before shipment.
3. Transport professional documents
4. Provide professional product consultation before sales, and we guarantee to answer any professional technical questions you may have within 48 hours; Provide timely product technical services after sales, and provide solutions within three working days.
5. Our engineers provide professional after-sales service
6. The warranty period is 12 months. During the warranty period, we are responsible for providing free maintenance, upkeep, and replacement of damaged and defective parts (under normal use) for the user's equipment. After the free warranty ends, service fees will be charged at your discretion.
7. Provide the fastest response to maintenance and assistance requests from users. After the user submits a maintenance request, ensure to provide professional technical support in the shortest possible time and in the fastest way possible.
Scope of application: Suitable for analyzing and measuring performance indicators such as scorch time, positive vulcanization time, vulcanization rate, viscoelastic modulus, and vulcanization flatness period during the rubber vulcanization process. It is a testing instrument designated by the state for the development of new products, research on rubber formula, and inspection of product quality.
Compliant with standards: accordance with GB/T16584 "Rubber - Determination of vulcanization characteristics using a rotor less vulcanization apparatus", ISO6502 requirements, and Italian standards T10, T30, T50, T60, and T90 data .
Technical specifications:
Temperature control range: 0-200 ℃
Temperature fluctuation range: ± 0.1 ℃
Temperature display resolution: 0.1 ℃
Heating time: Approximately ≤ 10 minutes to reach equilibrium at room temperature -200 ℃
Time setting range: 2min to 120min, any choice
Temperature fluctuation of the mold: ≤ ± 0.1 ℃%
Torque range: 0-20N. m
Swing frequency: 1.7Hz (100r. min-1)
Rotary swing amplitude: ± 0.5 °, total amplitude is ± 1 °
Power consumption: 800W
Mold cavity structure: Monsanto form
Report content: ML, MH, ts1, ts2, t10, t30, t50, t70, t90, vulcanization curve, temperature curve
Executive standard: ASTMD5289-95 ISO6502-1991 GB/T16584-1996
Power supply voltage: AC220V ± 10% 50HZ
External dimensions: 640mm × 580mm × 1300mm
Net weight 210Kg
Main features:
1. This instrument uses a truly enclosed mold cavity, similar to Alpha (formerly Monsanto) in the United States. Repeatability and test data are comparable to alpha. Leading position in the international industry.
2. This instrument is based on a large-scale database development platform, and the temperature control device is directly controlled and collected through software processing. This technology leads the international trend.
3. This instrument has functions such as statistics, analysis, storage, and comparison. Humanized design, easy to operate
