Home /Products/Fire Resistance Tester/UL746A Glow Wire Test Equipment GWFI Test For Solid Insulating Materials

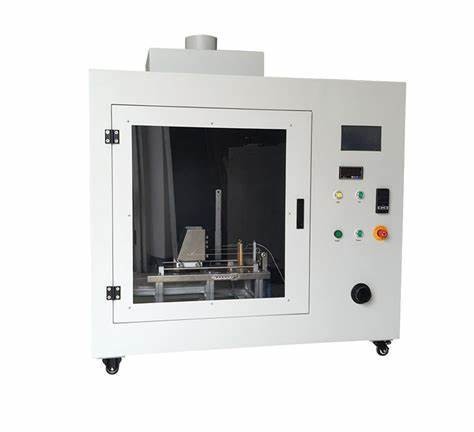

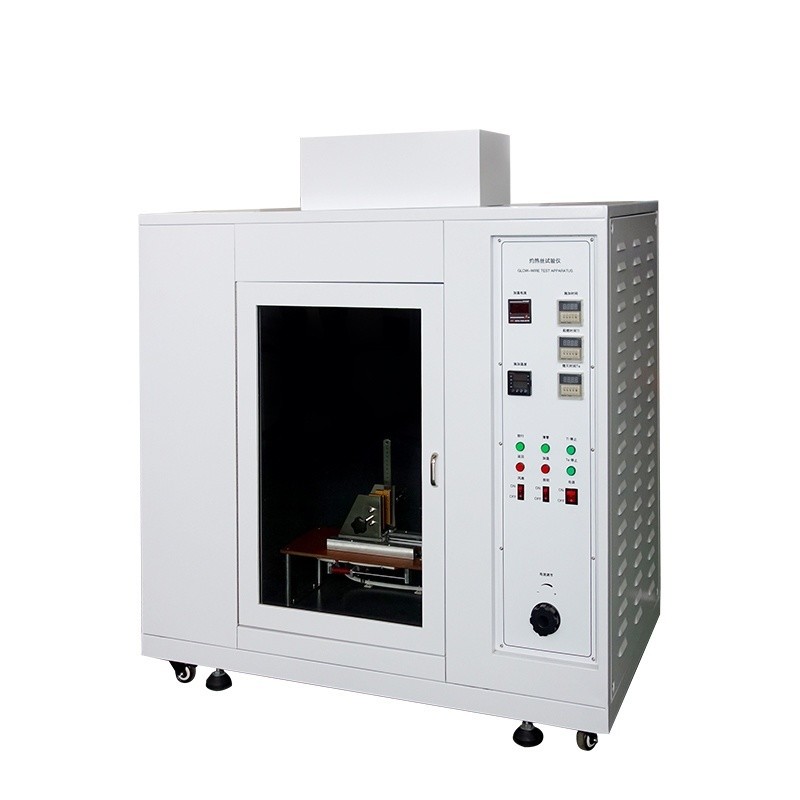

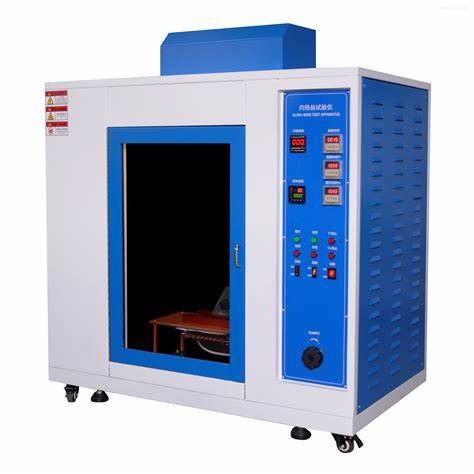

UL746A Glow Wire Test Equipment GWFI Test For Solid Insulating Materials

1 Set
MOQ
US$2000-$30000
Price
UL746A Glow Wire Test Equipment GWFI Test For Solid Insulating Materials
Features Gallery Product Description Chat Now
Features
Specifications
Model Number: CF7173
Product Name: Glow Wire Testing Machine
Keyword: Glow Wire Test Device
Hot Wire Temperature: 500 ~ 1000℃ Adjustable
Temperature Tolerance: 500 ~ 750℃ ±10℃, > 750 ~ 1000℃ ±15℃
Scorching Time: 0-99 Minutes And 99 Seconds Adjustable
Ignition Time: 0-99 Minutes And 99 Seconds
Blanching Depth: 7mm±0.5mm
Reference Standard: GB/T5169.10, GB4706.1, IEC60695, UL746A
Workroom Volume: 0.5 M3
Highlight:

Insulating Materials Glow Wire Test Equipment

,

Insulating Materials GWFI Test

,

UL746A Glow Wire Test Equipment
Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T,Cash,L/C,Western Union,MoneyGram
Supply Ability: 5 units per month
Product Description

UL746A Glow Wire Test Equipment GWFI Test For Solid Insulating Materials 0
UL746A Glow Wire Test Equipment GWFI Test For Solid Insulating Materials 1
UL746A Glow Wire Test Equipment GWFI Test For Solid Insulating Materials 2

Specification
Introduction:
The hot wire tester will heat the specified material (Ni80/Cr20) and shape of the electric heating wire (Φ4mm nickel-chromium wire) with high current to the test temperature (550℃ ~ 960℃) for 1min, and then vertically burn the test product for 30s at the specified pressure (1.0N). Determine the fire risk of electrical and electronic equipment products according to whether the test products and bedding are ignited or held for a long time; Determine the ignitability, ignitability temperature (GWIT), flammability and flammability index (GWFI) of solid insulating materials and other solid combustible materials.
Application:
 The glow-wire tester is suitable for the research, production and quality inspection departments of lighting equipment,
low-voltage electrical appliances, electrical instruments, and other electrical and electronic products and their components.
Equipment dimensions:
1000mm wide× 650mm deep × 1300mm high.
Technical parameters:
1. Hot wire temperature: 500 ~ 1000℃ adjustable
2. Temperature tolerance: 500 ~ 750℃ ±10℃, > 750 ~ 1000℃ ±15℃
3. Temperature measuring instrument accuracy ±0.5
4. Scorching time: 0-99 minutes and 99 seconds adjustable (generally selected as 30s)
5. Ignition time: 0-99 minutes and 99 seconds, manual pause
6. Extinguish time: 0-99 minutes and 99 seconds, manual pause
7. Thermocouple: Φ0.5/Φ1.0mm K-type armored thermocouple (no warranty)
8. Glow wire: Φ4 mm nickel-chromium wire
9. Glow wire applies pressure to the sample: 0.8-1.2N
10. Blanching depth: 7mm±0.5mm
11. Reference standard: GB/T5169.10, GB4706.1, IEC60695, UL746A
12. Workroom volume: 0.5 m3

Company Profile
UL746A Glow Wire Test Equipment GWFI Test For Solid Insulating Materials 3
UL746A Glow Wire Test Equipment GWFI Test For Solid Insulating Materials 4
Dongguan Chengfeng Testing Equipment Co., Ltd is Located in Dongguan City, Guangdong Province, China, we are a high tech enterprise which is specialized in development and manufacturing, The most professional OEM manufacturer in the country,we mainly produce Fire Testing Equipment, Construction Materials Testing Equipment, Plastic Testing Equipment, Wire Testing Equipment, Environmental Test Chamber, Tensile Testing Machine, and others CHENGFENG's testing equipment is widely used in various fields: scientific institutions, colleges, inspection institutions, auto parts, electronics, electronics, LEDs, photoelectricity, mobile, plastic rubber, telecommunications, chemical industry, aerospace, building materials and products, wire and cable, textile and fabric, etc .
All CHENGFENG testing equipment is designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, UL, TAPPI, AATCC, IEC, VDE, CSA, CEN, and so on

UL746A Glow Wire Test Equipment GWFI Test For Solid Insulating Materials 5
UL746A Glow Wire Test Equipment GWFI Test For Solid Insulating Materials 6
UL746A Glow Wire Test Equipment GWFI Test For Solid Insulating Materials 7

Customer Photos
UL746A Glow Wire Test Equipment GWFI Test For Solid Insulating Materials 8
1. Unique selling point: 12 years of professional research and development, only solving problems for customers.
2. Professional team: A technical research and development team with 12 years of experience, leading in professional knowledge and practical skills.
3. Quality assurance: The company strictly controls quality standards, meets customer standard requirements, and exceeds customer expectations.
4. Innovation ability: Develop products that meet customer needs, and years of experience make product development forward-looking and leading.
5. Competitive advantages: reliable quality, flexible and applicable equipment performance, reasonable equipment prices, high delivery speed, and guaranteed customer after-sales service.
6. Provide customized solutions for customers: fully understand customer needs, provide personalized solutions, and completely solve customer problems.
7. Reliability and credibility: The company operates steadily for a long time, winning the long-term trust of customers and solving their concerns.

Packing & Delivery
UL746A Glow Wire Test Equipment GWFI Test For Solid Insulating Materials 9

FAQ
Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?
A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
