ASTM E1886-2005 Curtain Wall Building Material Testing Equipment Anti Wind Debris Testing Equipment

ASTM E1886-2005 Building Curtain Wall Anti - wind Debris Testing Equipment

[Executive Standards]

GBT29738-2013 "Classification and Testing Methods for the Impact Resistance of Wind and Debris of Building Curtain Walls, Doors and Windows"

[Product Overview]

This device is a performance testing equipment designed and developed in accordance with the new standard "Classification and Detection Method of Wind and Debris Impact Resistance of Building Curtain Walls and Doors and Windows" modified in accordance with ASTM E1886-2005, ASTM E1996-2008 and other foreign standards. The test object is limited to the building curtain wall, external doors and windows and the storm protection device test piece itself, and does not involve the connection between the building curtain wall, external doors and windows, storm protection device and other structures. The device has a simple design, easy assembly, adjustable and controllable pressure, and adjustable emission height, which is convenient for experimental operation.

[Product Features]

This device uses two photoelectric sensors of the same model to record the time when the emitter passes through the two sensors through an electronic timer. The response frequency of the electronic timer is not less than 10KHz, and the reaction time is not more than 0.15ms. The velocity of the emitter is calculated as the distance between the two photoelectric sensors divided by the time counted by the electronic chronometer.

[Technical Parameters]

1. Ambient temperature: -10°C~50°C;

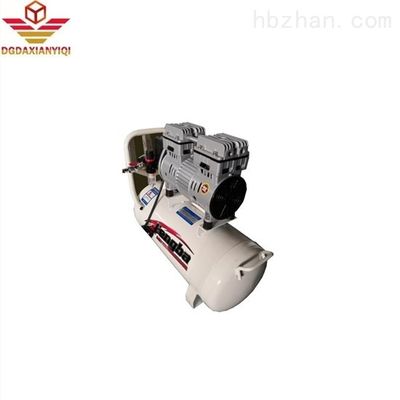

2. Air cannon working pressure: 0.4-0.8MPa;

3. Ambient temperature: -10°C~50°C;

4. Steel ball requirements: mass 2g±0.1g, diameter 8mm;

5. Launch speed of steel ball: 39.7m/s

6. Rated voltage of solenoid valve: AC 220V;

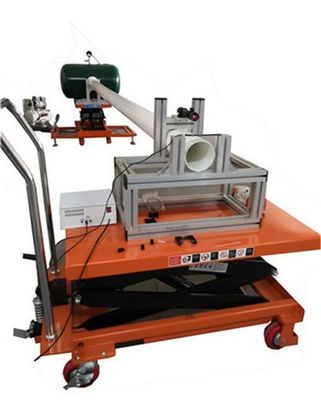

7. The detection device is composed of a projectile, a launching device, a velocity measuring device and a passive pressure box

8.The wood block is pine or softwood, dry density is 500kg/m3±25kg/m3, the cross-section height is 38mm±1mm, width is 89mm±1mm. One end of the wood block specimen is called the impact end, and the other end is the end;

Our advantages:

1. Professional technical support.

2. Rich experience in loading a large number of containers in Chinese seaports.

3. Fast shipping by well-known shipping company.

4. Best service with email after shipment.

5. We are a professional testing equipment manufacturer in China, with rich experience and skills, and also with the best quality products.

6. Timely after-sales service

After-sales service plan:

1. We guarantee that the goods fully comply with the quality, specifications and performance requirements stipulated in the contract;

2. Before delivery, we will conduct accurate and comprehensive testing of the products; Packing according to your requirements, pictures are attached before shipment for your confirmation, delivery is made on schedule, and professional shipping documents are provided;

3. We will provide you with quality service immediately, reply within 48 hours after receiving the quality message, and provide appropriate solutions within 3 working days;

4. After acceptance, our engineers will provide professional and technical services free of charge, such as video guidance and teaching, and on-site guidance and teaching if necessary;

5. We provide a 12-month warranty period, and in the event of quality problems during the product warranty period (not caused by human factors), we guarantee to provide free repair, maintenance and replacement of damaged and defective parts services;
