IEC61215 Photovoltaic Modules Hail Impact Testing Equipment Impact Tester

1 Set
MOQ
US$2000-$30000
Price
IEC61215 Photovoltaic Modules Hail Impact Testing Equipment Impact Tester
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM, OBM, Software Reengineering
Place Of Origin: Guangdong, China
Model Number: CF9182
Keyword: IEC61215 Photovoltaic Modules Hail Machine
Power Supply: 220V 50Hz
Impact Area: 2000x1000mm
Weight: 400kg
Highlight:

Photovoltaic Modules Hail Impact testing

,

IEC61215 Hail Impact testing

,

IEC61215 Impact testing Equipment

Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T,Cash,L/C,Western Union,MoneyGram
Supply Ability: 5 units per month
Product Description

IEC61215  Photovoltaic Modules Hail Machine Impact Test Equipment Impact Tester Standards Testing

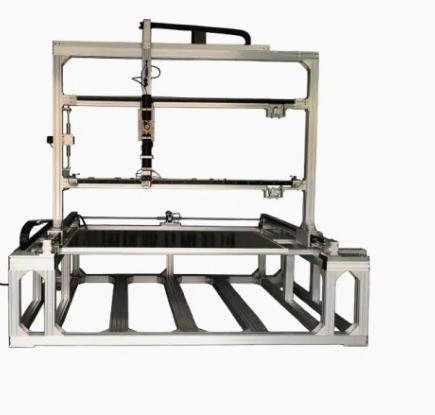

 IEC61215 Photovoltaic Modules Hail Impact Testing Equipment Impact Tester 0IEC61215 Photovoltaic Modules Hail Impact Testing Equipment Impact Tester 1IEC61215 Photovoltaic Modules Hail Impact Testing Equipment Impact Tester 2

IEC61215 Standard :

Photovoltaic Modules
IEC61215 Standards Testing
Hail Machine
Impact Test Equipment
Impact Tester
IEC61215 Solar Panel Hail Impigement Testing Machine
Anti-Hail Impact Testing Machine
Hail Impact Testing Apparatus
Ice Ball Impact Testing Machine



IEC61215 Testster Definitions:



Photovoltaic module hail impact testing machine use: to verify the ability of the module to resist hail impact, the artificial ice ball is used to simulate hail, and hit the module at a constant speed to simulate the impact of hail climate on the module.



IEC61215  Testster Specifications:

1. Launching device

a. The power source is compressed air of the air compressor

b. Air pressure: 6~8bar

c. Ice hockey pucks are manually single-shot loaded

d. The length of the barrel is about 940mm

e. The barrel can be replaced

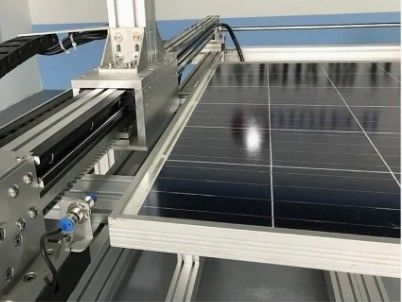

2. a mobile positioning device

a. The X-axis moving distance is about 2100mm

b. The Y-axis moving distance is about 1000mm

C. Positioning accuracy1mm

d. Impact area 2000x1000mm

e. The guiding mode is a high-quality imported guide rail

f. The driving mode adopts imported servo motor + synchronous wheel

j. The positioning control mode is the automatic positioning of the upper computer control

3. Speed measurement system and principle

a. By measuring the time when the puck passes through the infrared velocity sensor, and at the same time grabbing the time t when the infrared rays are blocked, the speed of the puck is calculated according to V=S/t

b. The speedometer adopts high-precision infrared speed sensor

C. The accuracy of infrared speed sensor ±5%

d. The speed grasping range is 0~40m/s

e. Ice hockey speed: 25mm diameter puck speed 23.0m/s±5%

35mm diameter puck speed 27.2m/s±5%

Diameter 45mm puck speed 30.7m/s±5%

4. Ice hockey preparation method and mold

a. Fill the ice hockey mold with water and put it in the refrigerator freezer, and after the water cools and freezes, take out the ice hockey ball separately and place it in the ice hockey storage box for later use.

b. The mold is made of special material that is not easy to expand and deform

c. The diameter of the inner cavity is 25mm<1%; 35mm<1%; 45mm<1%

d. 6 pucks in one mold; At least 2 sets of molds in one specification

e. The mold cavity processing technology is processed by high-precision CNC machine tools

f. The diameter of the ice hockey puck is 25mm<5%; 35mm<5%; 45mm<5%

g. The weight of the ice hockey is 7.53g<5%; 20.7g<5%; 43.9g<5%

h. Refrigerator -10 °C





Packaging & Shipping:

IEC61215 Photovoltaic Modules Hail Impact Testing Equipment Impact Tester 3



FAQ:

A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.Q:Are you factory or trading company?

Q:What kind of certificate you have?

A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?

A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?

A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?

A:1 year warranty,The engineer can teach the machine on the spot.
