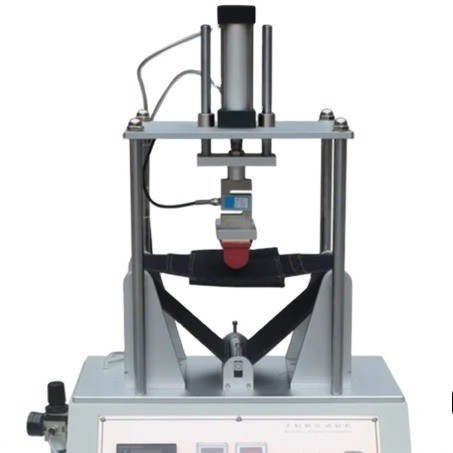

Soft Pressure Mobile Phone Testing Machine Customized YD/T1539-2006 Standard

Mobile phone soft pressure testing machine

1, Explanation:

This instrument is used for mobile phones and other products, imitating human repeated seat pressure life tests. A certain hardness of silicone is used as the pressure head, driven by a cylinder, and a certain pressure of 25kg is adjusted. After measuring the number of times it has been reached, the degree of damage is observed. Meets YD/T1539-2006 standard.

2, Technical parameters:

1) Testing station: 1 unit

2) Test the electrical sample: 200cm * 10cm, with adjustable height within 4cm

3) Use a cylinder to control rotation, with a cylinder diameter of ¥ 50mm and a stroke of 150mm. The cylinder's driving pressure adjustment range is 15-100kg, and the working pressure is 25kg

4) Working frequency 10-30 times/minute

5) Pressure head requirements, selecting elastic silicone

6) Overall dimensions of the machine: 370 * 500 * 1150mm

7) Weight: approximately 50kg

8) Power supply: AC220

3, Main configuration:

1) Machine body: 1 unit

2) Counter: 1

3) Touch screen PLC controller: 1 unit

4) SMC cylinder: 1

5) Controller and circuit: Ruitaier

6) Silicone pressure head: 1 piece

7) Power corrector (100kg); 1 set

8) Pressure plate requirements: Select silicone material
