CF8362 Single Combustion Tester Building Material Testing Equipment Customized

1, Applicable scope:

The method used to determine the fire response performance of building materials or products (excluding paving materials and products specified in EC Resolution 2000/147/EC) in a single unit combustion test (SBI).

2, Compliant with standards:

Complies with the requirements of GB/T 20284-2006 standard "Single Body Combustion Test for Building Materials or Products" and EN13823 "Single Body Combustion Test Method (SBI)" test standards.

3, Performance parameters:

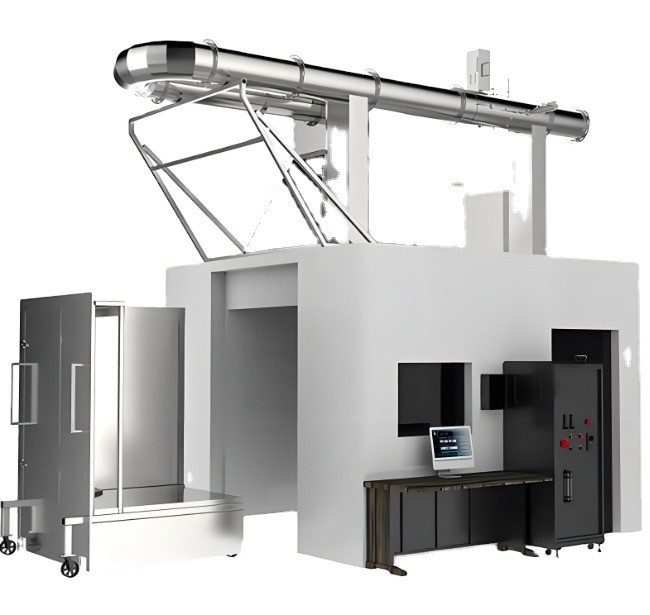

The equipment includes a combustion test room, a control room, a small cart, smoke exhaust pipes, a data collection and analysis device, and a gas supply control device.

1) Combustion test room: L3000×W3000×H2400 (MM), with a collection hood and smoke exhaust pipe connected to the sampling pipeline at the top of the room, and a space for natural air entry and exit below the small cart. During the experiment, the heat released by the combustion of the sample and the combustion products must be discharged from the exhaust pipe and built with brick walls.

2) The ignition source is a 31KW propane right angle sandbox burner placed in the vertical corner of the small cart (with a side length of 250mm and a height of 80mm).

3) A comprehensive sampling area is set up in the smoke exhaust duct for placing sensors and sampling pipes.

4) Smoke exhaust speed: 0.50 m³/s to 0.65m³/s.

5) Indoor environmental temperature measurement: K-type armored thermocouple with a diameter of 1mm, environmental pressure test: ± 200Pa.

6) Temperature measurement of exhaust duct: an imported K-shaped armored thermocouple with a diameter of 0.5.

7) Temperature measurement accuracy: 0.5 ℃.

8) High precision pressure sensor for smoke exhaust duct, with an accuracy of ± 2Pa

9) Time recording system accuracy: 0.1s.

10) Test time: 1-30 minutes can be set.

11) Smoke density measurement system, capable of measuring smoke density during the testing process.

12) The gas analyzer and key components are all original imported.

13) Equipped with embedded computer and 8.4-inch LCD display, with TCP/IP and RS-232 multiple communication interface options

14) Oxygen measurement: Measurement range: 0-25%

15) Signal output: 4-20mA;

16) Response time T90: ≤ 2S;

17) Environmental temperature: 0-45℃;

18) Relative humidity:<90% (no condensation);

19) Linearity:<±0.1% O2;

20) Zero drift: 0.05% O2 (one week);

21) Repeatability:<± 0.02% O2;

22) Carbon dioxide (CO2) measurement:

23) Measurement range: 0-10%

24) Reproducibility:<±1% Internal structure of control cabinet

25) Zero drift:≤2%/week

26) Range drift:≤2%/week

27) Linear deviation:<±1%

28) Response time: T90≤2 s

29) The data collection system can collect and record experimental data such as oxygen concentration, carbon monoxide concentration, temperature, smoke density, heat release rate, mass loss rate, etc., which can be saved.

Our Services

1. Ensure the high quality of the product.

2. Packaging can be done according to customer requirements and pictures can be attached before shipment.

3. Transport professional documents

4. Provide professional product consultation before sales, and we guarantee to answer any professional technical questions you may have within 48 hours; Provide timely product technical services after sales, and provide solutions within three working days.

5. Our engineers provide professional after-sales service

6. The warranty period is 12 months. During the warranty period, we are responsible for providing free maintenance, upkeep, and replacement of damaged and defective parts (under normal use) for the user's equipment. After the free warranty ends, service fees will be charged at your discretion.

7. Provide the fastest response to maintenance and assistance requests from users. After the user submits a maintenance request, ensure to provide professional technical support in the shortest possible time and in the fastest way possible.
