Features

Specifications

Model Number: HT-CJ-150L

Standard: GB/T2423.1-2001, GJB150.5-86, IEC68-2-14

Internal Dimensions: Width 600 * Height 500 * Depth 500mm

Exterior Dimensions (approx.): Width 1850 * Height 2150 * Depth 1550mm

Impact Temperature Range: -40°C~150°C

Temperature Fluctuation: ±1.0°C

Temperature Uniformity: ±2.0°C

Impact Return Time: -40~+150°C About 5min (no Load)

Inner Box Material: Stainless Steel Plate (SUS#304)

Highlight:

150L Thermal Shock Test Chamber

EIA 364-32 Thermal Shock Test Chamber

150L thermal shock testing machine

Basic Infomation

Place of Origin: China

Brand Name: CHENGFENG

Certification: ISO,CE

Payment & Shipping Terms

Packaging Details: Wooden cases

Delivery Time: 10 Work Days

Payment Terms: T/T,Cash,L/C,Western Union,MoneyGram

Supply Ability: 5 units per month

Gallery

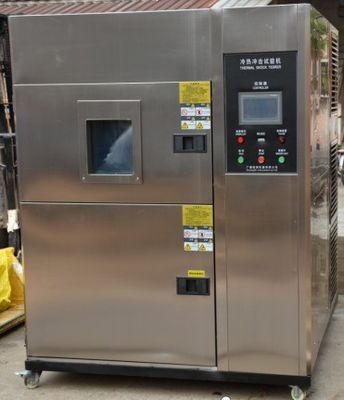

EIA 364-32 Thermal Shock Test Chamber Three Chamber Type 150L Specification

Product Description

Specification

Structure and material	1. Inner box material: stainless steel plate (SUS#304) Carton material: stainless steel plate or cold-rolled plate baking paint (optional) 2. Insulation material: High temperature tank: aluminum silicate insulation cotton Low temperature tank: high-density PU foaming 1. Heater: fin-type heat dissipation tubular stainless steel electric heater. a: High temperature tank 6.5 KW. b: Cryogenic tank 5.5 KW. 2. Air supply circulation system: a. Motor 1HP×2 sets b. Stainless steel elongated shaft c. Multi-wing fan blades (SIROCCO FAN) e. Specially designed fan forced air supply circulation system 3. Chamber door: test chamber monolithic door, left open. a. Recessed flat handle. b. Rear button: SUS#304. c. Silicone styrofoam strip.
Conditions for the use of equipment	1. Power supply: three-phase five-wire system 380V±10%; 50 Hz； AC3￠18KW 40 A Allowable value of voltage fluctuation: ±10% of rated voltage 2. Ambient temperature: 5~35°C;; 3. Ambient humidity: < 85%R.H(25°C); 4. Atmospheric pressure: 86~106Kpa; 5. Environmental conditions: no strong vibration, no strong electromagnetic field interference, no high concentration of dust and corrosive substances, no direct sunlight or other heat sources around the equipment site. 6. The equipment should be placed horizontally in a well-ventilated test room, and sufficient space should be left around for operation and maintenance. 7. Gas source: the user must provide the gas supply source.
Standard configuration	A. Power cord 10 mm B. 232 export terminal one C. Stainless steel SUS #304方型冲孔钢板置物架 D. 4 stainless steel adjustable spacing buckles E. One 11W energy-saving lighting window lamp H. One set of instruction manuals and one set of operating instructions for the controller
After-sales service	1. Free warranty for 12 months. (Except for damage caused by natural disasters, abnormal power supply, improper human use, improper maintenance, etc.) 2. During the warranty period, the supplier receives a call from the user, proposes a service plan and notifies the user within 48 hours, and if the door-to-door service is required, the supplier immediately sends someone to the door. (If there is a problem in the use of your device, Party A shall provide accessories free of charge during the warranty period, and Party A's maintenance time shall not exceed 2 days in principle)

Customer Photos

1. Unique selling point: 12 years of professional research and development, only solving problems for customers.

2. Professional team: A technical research and development team with 12 years of experience, leading in professional knowledge and practical skills.

3. Quality assurance: The company strictly controls quality standards, meets customer standard requirements, and exceeds customer expectations.

4. Innovation ability: Develop products that meet customer needs, and years of experience make product development forward-looking and leading.

5. Competitive advantages: reliable quality, flexible and applicable equipment performance, reasonable equipment prices, high delivery speed, and guaranteed customer after-sales service.

6. Provide customized solutions for customers: fully understand customer needs, provide personalized solutions, and completely solve customer problems.

7. Reliability and credibility: The company operates steadily for a long time, winning the long-term trust of customers and solving their concerns.

FAQ

Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?
A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
