ASTM D149 Voltage Breakdown Testing Machine Laboratory Rubber Testing Equipment

1 Set
MOQ
US$2000-$30000
Price
ASTM D149 Voltage Breakdown Testing Machine Laboratory Rubber Testing Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM, OBM, Software Reengineering
Power: 6KW
Accuracy: ≤ 5%
Voltage: 220V
Power Supply: 220V 50Hz/60 Hz
Weight: 230kg
Size: 1.4*1.2*1.7m
Highlight:

ASTM D149 voltage breakdown tester

,

laboratory rubber testing equipment

,

voltage breakdown machine for rubber
Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Model Number: CF8388
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T,Cash,L/C,Western Union,MoneyGram
Supply Ability: 5 units per month
Product Description

product overview: This testing machine is suitable for measuring the breakdown strength and withstand time of solid insulation materials such as plastics, films, resins, mica, ceramics, silicone, glass, insulation paints, etc. in air or liquid media at power frequency (48-62Hz) or corresponding DC voltage.

Scope of application: Suitable for continuous and uniform voltage boosting or step-by-step voltage boosting, apply AC/DC voltage to the sample until breakdown, measure the breakdown voltage value, and calculate the breakdown strength of the sample; Using a rapid voltage boost method, raise the voltage to the specified value and maintain it for a certain period of time until the sample does not break down. Set the specified value at this time as the withstand voltage value of the sample.

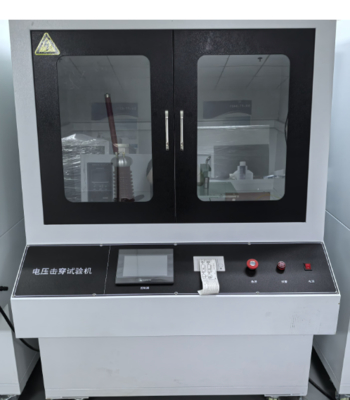

ASTM D149 Voltage Breakdown Testing Machine Laboratory Rubber Testing Equipment 0

ASTM D149 Standard :

  • Solid State Voltage Breakdown Tester

  • Voltage Breakdown Tester

  • Dielectric Strength Tester

  • High Voltage Tester

  • Insulation Breakdown Tester

  • Electrical Safety Tester

  • Dielectric Breakdown Voltage

  • Insulation Resistance Tester

  • High Voltage Testing Equipment

  • Breakdown Voltage Measurement

  • Solid State Insulation Tester

  • Electrical Breakdown Test

  • Voltage Endurance Tester

  • Dielectric Strength Test Equipment

  • High Voltage Insulation Tester



ASTMD149 Testster Definitions:

This tester is suitable for solid insulating materials such as:Plastic, film, resin, mica, ceramics, silica gel, glass, insulating paint, etc,In air or liquid medium,Measure the breakdown strength and withstand voltage time under power frequency (48 ~ 62Hz) or corresponding DC voltage.

ASTMD149Test Machine Specifications:

Test voltage

AC 0 ~ 50 kV, DC 0 ~ 50 kV

Transformer capacity

10 KVA
Power supply AC 220V, 50Hz
Breakdown voltage

0 ~ 50kV

Boosting speed

6 gears of 50, 100, 200, 500, 1000, 2000 (KV / S)
Voltage measurement accuracy

 ≤ 2%

Leakage current selection  1 ~ 20 mA
Dimensions

 L 1400 * W 1040 * H 1500 mm

Weight

230kg







 ASTM D149 Voltage Breakdown Testing Machine Laboratory Rubber Testing Equipment 1
