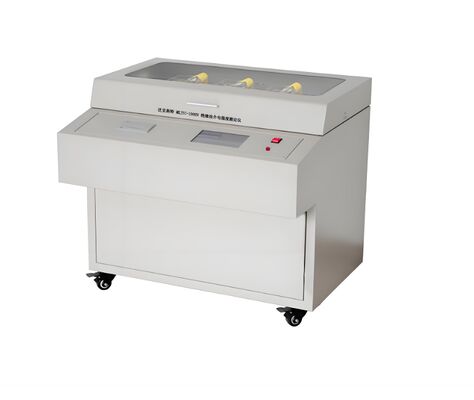

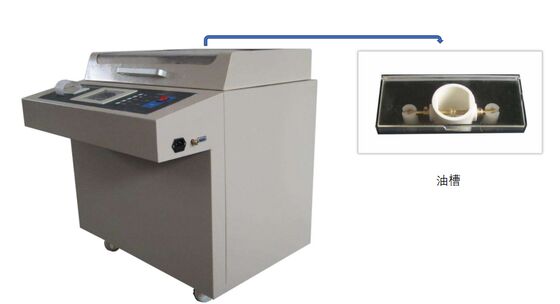

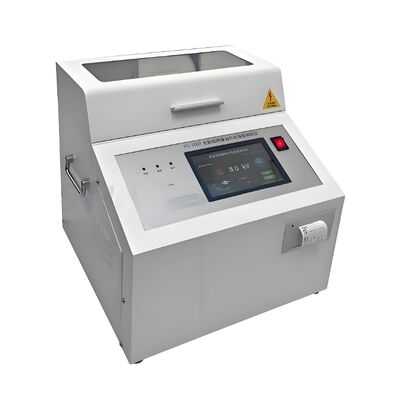

Insulating Oil Dielectric Strength Tester It is used for voltage breakdown and electrical strength testing of high-insulation oil ect

I. Product Overview:

The insulating oil dielectric strength tester is designed in accordance with the requirements of international IEC-156 and national standards such as GB507-86 "Insulating Oil Dielectric Strength Test Method", DL/T846.7-2004, IS6792/BS5874, ASTMD1816, ASTMD877, and ASTMD1816. It is used for voltage breakdown and electrical strength testing of high-insulation oil, insulating silicone oil and fluid insulating media, and is used to evaluate the electrical performance of insulating materials.

Ii. Product Features
This instrument is equipped with an automatic detection function. For instance, upon startup, it will automatically enter the reset state to execute the voltage regulator's return to zero.
2. A micro panel printer was adopted to automatically or manually print out the test results.
3. According to user requirements, the number of tests, stirring and standing time, sound and light control reminders, continuous printing and non-printing can be changed.
4. This instrument adopts fully automatic magnetic oscillator stirring to eliminate the unevenness and bubbles in the oil sample.

Iii. Product Parameters
Working power supply: AC380V ±10%, 50HZ ±5%
Standing time: 0-10 minutes and 39 seconds
Measurement range: AC 0-80KV
Operating conditions: Ambient temperature 5℃-40℃
Limit current: 50mA
Relative humidity: 1. ≤75% without condensation
Measurement accuracy: 1%
Oil cup clearance: 2.5mm(diameter of oil cup feeler gauge)
Voltage regulation speed: 2KV/S±10%, 0.5 to 5kv/S(adjustable)
Volume: 415×315×315mm
Preset Settings: 1 to 10 times
Weight: 28kg
Stirring time :0-1 minute and 39 seconds
