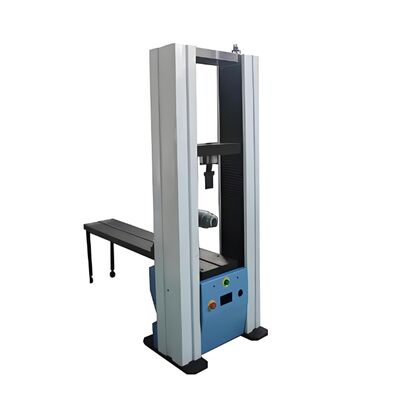

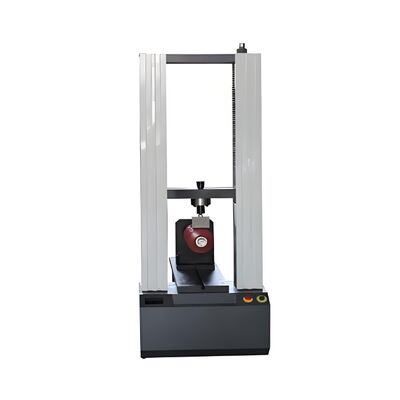

The Insulator Tensile Testing Machine Is Mainly Used To Test The Tensile Load, Tensile Strength, Tensile Failure Ect

Product Introduction
The insulator tensile testing machine is mainly used to test the tensile load, tensile strength, tensile failure, failure load, tensile deformation, bending load, bending failure and bending strength of various insulators in the power industry, such as suspension insulators, post insulators, porcelain insulators, glass insulators, composite insulators, low-voltage insulators, high-voltage insulators, dirt-resistant insulators and DC insulators Mechanical property tests such as degree, bending deformation, compressive strength, bearing capacity, compressive deformation, compressive load, and compressive load.

Product performance characteristics
This machine is mainly used for insulator bending tests. It can also be equipped with different test accessories to test the mechanical properties such as tensile, compressive, bending, shearing, tearing, peeling, compressive and flexural strength of metals, non-metals and composite materials.

Two Main technical indicators
Style: Microcomputer-controlled, gantry type
2. Maximum test force: 100kN (10T);
3. Test force range: Stepless speed regulation
4. Test range :1%-100%FS
5. Accuracy of test force; Plus or minus 1%
6. Displacement resolution: 0.1mm
7. Displacement speed control range: 0.1mm/min to 500mm/min
8. Displacement speed control accuracy: ±1%
9. Testing machine grade: Grade 1
10. Deformation indication error: ≤± (50+0.15L
11. Test space: The width of the test space is ≥380mm (customizable as required)
The distance from the crossbeam to the worktable is ≥500mm (customizable as required).
12. Appearance: It should comply with the requirements of GB/T2611
13. Completeness: Complies with standard requirements
14. Protection functions: Overload protection, limit protection, overcurrent, overvoltage, overheating and over-temperature protection of the electronic control system.
15. Net capacity of the machine: approximately 600Kg
16. Dimensions of the testing machine: approximately 860*520*2150 mm
17. Power supply: 220V, 50Hz
