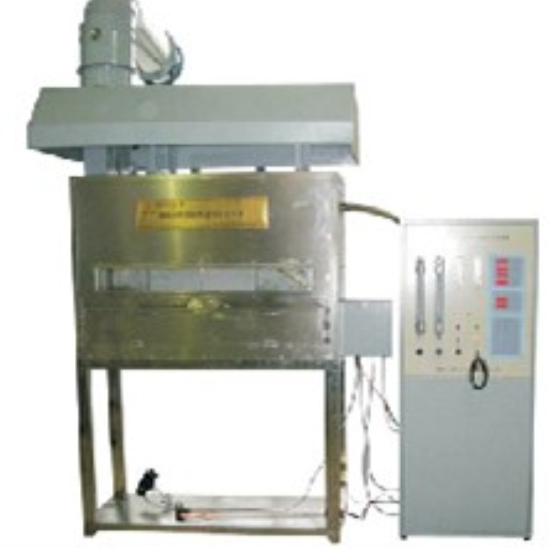

CF8401 Flooring Material Radiation Heat Flux Testing Device

1 Set
MOQ
US$2000-$30000
Price
CF8401 Flooring Material Radiation Heat Flux Testing Device
Features Gallery Product Description Chat Now
Features
Specifications
Measurement Range Of Heat Flux Meter: (0-15) Kw/m²
Accuracy Of Heat Flux Meter: ± 0.2Kw/m²
Heat Flux Meter Accuracy: <± 3%
Thermal Radiation Pyrometer Range: 400-600 ℃, Accuracy Of ± 0.5 ℃
Blackbody Temperature Error: ± 5 ℃
Smoke Exhaust Speed: (2.5 ± 0.2) M/s
Smoke Exhaust Capacity: (39-85) M³/min
Porous Refractory Material Radiation Plate Size: 300mm×450mm, Able To Withstand High Temperatures Of About 900 ℃
Highlight:

Flooring material flammability tester

,

Radiation heat flux testing device

,

CF8401 flammability testing equipment
Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Model Number: CF8401
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T, Cash.L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5 units per month
Product Description

Applicable scope:

Suitable for testing flooring materials placed horizontally with small flames ignited under specified conditions and exposed to inclined thermal radiation fields. Suitable for various paving materials. For example, textiles, carpets, cork boards, wooden boards, rubber boards, plastic flooring, and floor spray materials. This device can reflect the combustion performance of the flooring material, including the substrate used. Changes in the backing material, bottom layer material, or other aspects of the flooring material may affect the test results. It is used to test and describe the combustion characteristics of the flooring material on the thermal reaction of fire under controlled laboratory conditions.



Compliant with standards: Meet the requirements of GB/T11785-2005 and ISO9239-1 "Determination of combustion performance of paving materials - Radiation heat source method" test standards.
