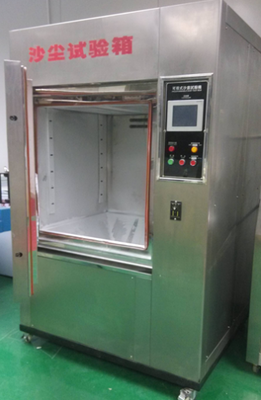

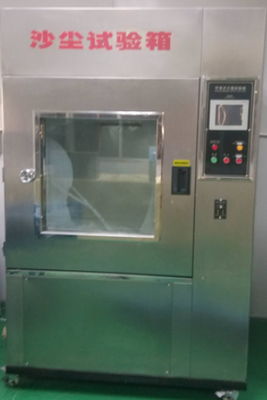

Sand And Dust Test Chamber Scheme Is Mainly Used To Assess Whether The Enclosures And Seals Of Electronic And Electrical Products Can Ensure The Good Condition Of The Equipment

I. Model and Specification
Inner box dimensions: H800*D800*W800(mm)
Outer box dimensions: H1980*D1060*W1300(mm)

Ii. Equipment Application:
This test chamber is mainly used to assess whether the enclosures and seals of electronic and electrical products can ensure the good condition of the equipment and components during the sand and dust prevention test
Good working performance.

Iii. Standards Implemented by this equipment:
La and Lb in GB2423.37-89; GB 4208-98; IEC60529.
The test chamber is manufactured in accordance with the following standard requirements
The dust-proof test chamber is designed and manufactured in accordance with GB4208-93(equivalent to IEC60529-2001) "Enclosure Protection Class (IP Code)", and is suitable for conducting sand and dust tests on electrical products with the first characteristic digit being 5 and 6(IPX5 and IPX6).
This test chamber, in accordance with the standard requirements, uses artificial simulation of a dust environment to test the dust-proof capability of the tested items. The specific requirements and qualification determination standards should comply with GB4208-93(IEC60529-2001) or the relevant standards of the product.
Note: This test chamber can meet the requirements of GB2423, GB4706, GB4208, DIN for household appliances, low-voltage electrical appliances, automotive and motorcycle parts
Test requirements for shell protection grade. This device cannot meet the requirements of the sand and dust test with air source as stipulated in GJB150.

Iv. Technical Parameters
Inner box dimensions: H800*D800*W800(mm)
The outer box dimensions are approximately: H1980*D1060*W1300(mm)
2 Inner box material: High-grade stainless steel plate SUS304
3 Outer box material: High-grade stainless steel plate SUS304
4 Box door: Large tempered glass observation window
5 Air duct system: The unique air duct design ensures that the box generates a non-layered vertical circulation airflow
6 Box temperature: RT+10 to 50°C
7 Relative humidity inside the box 45%~75%RH
8 Nominal wire diameter of the net: 50 μ m
10 Nominal spacing between lines; No more than 70 μ m
11 The dust content inside the box is 2Kg/m ³
twelve Airflow velocity: ≤2m/s
13 Dosage of talcum powder: 2kg to 4kg per cubic meter
fourteen Dust-blowing time: 0 to 9999.9 hours can be set
15 Control system: Imported high-precision PID digital display instrument
16. PT100 test sensor
17. Safety protection devices
a). Instrument over-temperature protection function
b). Power phase loss protection
c). Leakage circuit breaker protector
18 Power supply: AC220V 50Hz

Iv. Environmental Conditions
Air temperature :0-35℃
Relative humidity :25% to 75%RH
Power supply
Rated voltage :AC220V
Rated frequency :50HZ
Input power: approximately 2KW
The dosage of talcum powder is 2kg/m ³
Test sample power supply
AC220V,50HZ(with test leads available)
3. Structure and Materials
Material: Inner tank: Made of SUS#304 high-grade stainless steel plate
Test piece power socket: Dust-proof socket
Controller: Touch screen Taiwan Weilun programmable controller communication control (This controller has the following multiple arbitrary setting control functions)
a. The dust-blowing time (stop, blow) is adjustable
b. Cycle period: Arbitrarily adjustable
c. Preset test time: Adjustable freely from 0.1H to 9999.9H
d. Power on: Off - on - off
e. It has an overload function and a power-off protection function
Hair dryer: All-plastic centrifugal fan
V. Main Configuration List
Vortex air pump ZHB410A01, German Haokaide
Vibration motor M3-45, ASBA, Taiwan
SSR T48D25 Taiwan Kaitong
Differential pressure switch TEB, China Tianen Instrument TEB
Differential pressure gauge MAPRESSURE, China East Asia Instrument
Air flowmeter LZT15-M, China East Asia Instrument
Taiwan Weilun controller
