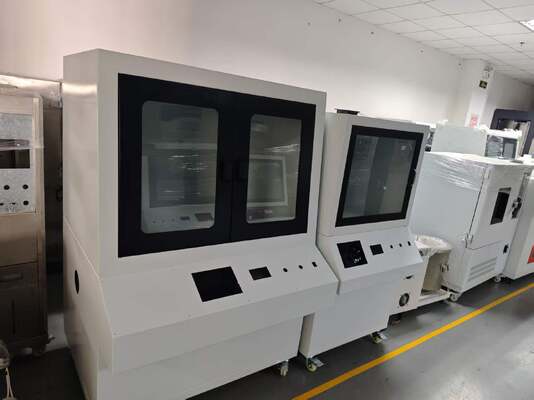

GB/T 12656 Test Method for Power Frequency Voltage Breakdown of Capacitor Paper

GB/T 12656 Test Method for Power Frequency Voltage Breakdown of Capacitor Paper

meet the standard :

GB/T 1408-2006 Test Method for Electrical Strength of Insulation Materials
GB/T3333 Test Method for Power Frequency Voltage Breakdown of Cable Paper
HG/T 3330 Determination of breakdown strength of insulation paint film
GB/T 12656 Test Method for Power Frequency Voltage Breakdown of Capacitor Paper
GB/T1695-2005 Vulcanized Rubber - Test for Power Frequency Voltage Breakdown Strength and Voltage Endurance Strength

Scope of application:

Mainly suitable for testing the breakdown strength and voltage resistance of solid insulation materials (such as plastics, rubber, laminates, films, resins, mica, ceramics, glass, insulation paints, and other insulation materials and components) under power frequency voltage or DC voltage.

Product features:

High voltage equipment voltage acquisition requires a relatively high acquisition system. Our company's voltage breakdown tester control part adopts PLC control from Germany, which has strong anti-interference ability. It uses photoelectric isolation data lines and computer communication to ensure the safe operation of the equipment and computer at the moment of breakdown

Technical parameters:
Electrical capacity 3KVA
Voltage accuracy ≤ 1.5%
Main Material Sheet Metal
Output voltage AC/DC-50KV
Leakage current 0-100mA
Boosting rate 0.1KV/S-5KV/S
Breakdown judgment stop: voltage judgment stop/current judgment stop

System composition:
Voltage regulation module: This module is mainly used for voltage regulation and can adjust the boost rate. It has high voltage zero limit and high voltage boost limit. The main hardware components include voltage regulators, motors, and other parts. The software is easy to operate and can display the boost curve and leakage current dynamic curve in real time. At the same time, the boost rate is infinitely adjustable, and the boost rate can be adjusted according to one's own needs, making the boost rate truly uniform and accurate. After breakdown, it automatically stops, records test results, displays test data, makes accurate judgments, and can save, analyze, and print test data.
High voltage module: This module mainly uses a high voltage generator to boost the voltage from low voltage at a set rate. The core components mainly consist of transformers and matching anti-interference accessories.
Test module: This section mainly consists of supporting test electrodes, test oil tanks, and test brackets, which can be carried out in a high-temperature testing environment according to user needs.
Control module: This instrument is controlled by computer upper computer software and is a brand new third-generation dielectric strength testing instrument independently developed by our company. The core control system of this instrument is controlled by PLC, and the data acquisition part is completed by digital integration module. The communication with the computer and data acquisition are completed by photoelectric isolation line, effectively solving the anti-interference problem during the test process. Voltage acquisition and current acquisition are completed by high-precision sensors.
