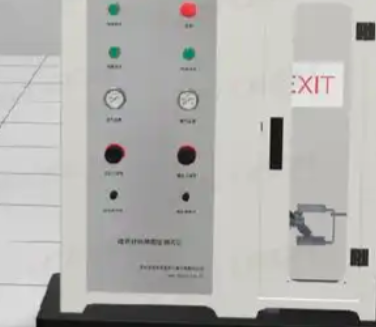

CF601 Safety Protection System Cable Flammability Tester for IEC 60332-1 Flammability Testing Equipment

The Cable Flammability Tester evaluates fire performance of single vertical wires and cables, designed in strict compliance with IEC 60332-1 and UL 1581 VW-1 standards. The apparatus uses a calibrated 500W Tirrill burner applying a precisely controlled flame to vertically mounted cable specimens, measuring afterflame time, char length, and cotton indicator ignition. The large-volume combustion chamber ensures uniform air flow and prevents test interference from ambient conditions, while the integrated timer system provides 0.1-second measurement accuracy. Essential for cable and wire manufacturers requiring regulatory compliance testing and product development validation. Engineered with comprehensive laboratory safety features including emergency stop button, gas leak detection sensor, integrated fume extraction system with activated carbon filter, overheat auto-shutoff protection, flame-retardant chamber construction, and safety interlock door mechanism that prevents operation when the test chamber is open. This equipment provides maximum operator protection during high-temperature flammability testing procedures.
