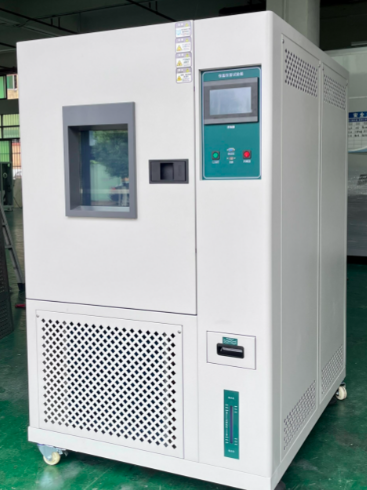

DX8315A UV Aging Test Chamber

1 Set
MOQ
US$2000-$30000
Price
DX8315A UV Aging Test Chamber
Features Gallery Product Description Chat Now
Features
Specifications
Power: Electronic,220V/50Hz,±10%,220V 50HZ,220V Or 380V AC±10% 50/60Hz
Usage: Universal Testing Machine,Auto Testing Machine,Tensile Testing Machine,Strength Tester,Compression Stress Relaxation Test Equipment
Product Name: Electronic Rubber Tensile Tester,Ozone Testing Equipment,Aging Testing Chamber,LINPIN 500L Lab Ozone Gas Test Equipment For Rubber Ozone Test,ISO 4649 DIN Rubber And Plastic Abrasion Resistance Tester
Warranty: 12 Months,1 Year,2 Years;life-long Maintenance,24 Months
Power Supply: AC220V 10% 50HZ,220V 50Hz,50-60HZ,Default As European Standard AC 100V - 240V,220V/380V/110V
Application: Leather,Aging Testing Chamber,rubber Plastic Leather,textile,Paper
Name: Emc Testing Equipment,Insulation Gloves Boots Withstand Voltage Dielectric Test Set,Automatic Rubber Plastic Melt Flow Index Test Equipment,Ozone Environmental Test Chamber
Color: Blue,According To The Client's Demands,Request,Blue And White
Function: Condensation,OZONE TEST,withstand Voltage Test,UV,water Spray
Weight: Weight Accuracy,300kg,150kg
Standard: BS.EN.ASTM.IEC.ISO,BS.EN.ASTM,IEC60529
Temperature Range: 0°C-70°C,15-1300 Degree,RT+10°C~70°C
Certification: ISO/ASTM/UL/CE,ROHS/CE/ISO9001
Ozone Concentration: 1~1000PPHM (adjusted),50-500ppm
Keywords: Ozone Aging Test Chamber,Rubber Ozone Testing Equipment
Abrasion Stroke: 40m Equal To Roller Wheel Turns Number 84,40 ± 0.2M
Load Accuracy: Within ±1%,±1% Or ±0.5%
Display: LCD Display,Computer Display
Oem: Yes,Acceptable
Highlight:

UV aging test chamber

,

rubber UV test equipment

,

DX8315A UV chamber

Basic Infomation
Place of Origin: China
Brand Name: daxian
Certification: ISO,CE
Model Number: 8315A
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: D/A,D/P,T/T,L/C
Supply Ability: 5 units per month
Product Description

This machine complies with EN ISO 12543‑4:2011 standard.

Application
This equipment is mainly used for UV aging test of laminated glass.

Detailed Technical Parameters
Work chamber dimension: 1100mm × 1100mm × 1000mm
Specimen test size: 300mm × 300mm
Test specimen quantity: 9 pcs
Sample surface temperature control range: 45 ℃ ± 5 ℃
Light source: OSRAM Ultra Vitalux 300W (domestic alternative available)
Quantity of UV lamps: 16 pcs
Total radiation intensity on specimen surface: 900 W/m² ±100 W/m²
Distance from sample to light source: more than 500 mm
Specified testing duration: 2000 h
Noise level: ≤75 dB
Fan power: ≤25 W × 4
Compressor power: 2.5 HP
Installed total power: 9 KW
Power supply: AC 380V / 50Hz, three‑phase five‑wire system
