DX8315A 1100x1100x1000mm UV Accelerated Aging Chamber 9pcs Batch Laminated Glass Testing Machine

1 Set
MOQ
USD 5000-15000 / Set
Price
DX8315A 1100x1100x1000mm UV Accelerated Aging Chamber 9pcs Batch Laminated Glass Testing Machine
Features Gallery Product Description Chat Now
Features
Specifications
Work Box Size: 1100mm × 1100mm × 1000mm
Test Size: 300 × 300mm
Test Quantity: 9pcs
Temperature Control Range: 45℃ ± 5℃
Light Source: OSRAM Ultra Vitalux 300W
Number Of UV Lamps: 16
Radiation Intensity: 900W/m² ± 100 W/m²
Sample To Light Source Distance: > 500mm
Testing Time: 2000h
Interference Sound: ≤ 75db
Fan Power: ≤ 25W × 4
Compressor Power: 2.5HP
Installation Power: 9KW
Power Supply: AC380V/50HZ, Three-Phase 5-Wire System
Standard: EEN ISO 12543-4-2011
Application: UV Aging Test For Laminated Glass
Highlight:

UV accelerated aging chamber 1100x1100x1000mm

,

laminated glass testing machine 9pcs batch

,

environmental test chamber with warranty
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Ecer
Certification: ISO 9001:2015, CE, EEN ISO 12543-4-2011
Model Number: DX8315A
Payment & Shipping Terms
Packaging Details: Export-grade plywood case with shock-proof foam insert, vacuum-packed UV lamps
Delivery Time: 15-30 working days after order confirmation
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50 Sets per Month
Product Description

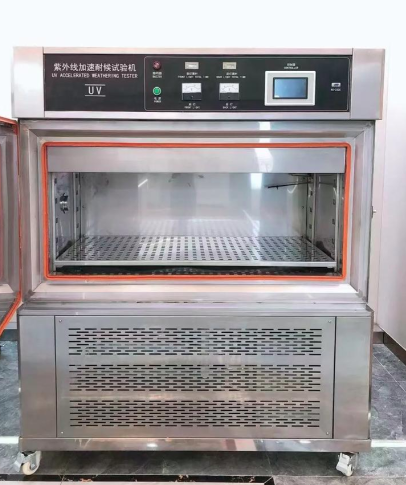

DX8315A Large-Capacity UV Accelerated Aging Chamber

The DX8315A UV Accelerated Aging Chamber offers an expansive 1100mm * 1100mm * 1000mm work box, enabling simultaneous testing of up to 9 specimens (300 * 300mm each). This high-throughput design dramatically improves laboratory efficiency for laminated glass manufacturers and third-party testing facilities.

Key Features

  • ✅ Spacious work box: 1100mm * 1100mm * 1000mm
  • ✅ 9-specimen simultaneous testing (300 * 300mm each)
  • ✅ 16 * OSRAM Ultra Vitalux 300W UV lamps
  • ✅ 900W/m² ± 100 W/m² radiation intensity
  • ✅ 45℃ ± 5℃ sample surface temperature control
  • ✅ 2000h testing duration support
  • ✅ AC380V/50HZ three-phase 5-wire power supply
  • ✅ Compliant with EEN ISO 12543-4-2011

Application

Designed for high-volume laminated glass UV aging testing in automotive glass production, architectural glass certification, and quality control laboratories requiring batch processing capabilities.
