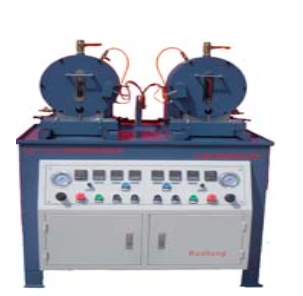

Oil seal rotation testing machine

Oil seal rotation testing machine
Features and Applications: The RH-7018 series oil seal rotation performance testing machine is suitable for testing and researching the sealing performance of various rotary oil seals. The oil seal is installed on the testing machine, and the main shaft rotates at a certain speed. After a certain period of operation, observe whether the oil seal leaks. Two oil seals can be tested at a time, and the testing shaft can be rotated forward or backward. The structure of this machine is reasonable, the design is novel, the starting performance is good, the starting torque is large, the speed range is wide, the speed change rate is small, the noise is low, and the operation is convenient. Meets the requirements of standards such as GB/T 14273 "Performance Test Method for Rotary Shaft Lip Seals".
Technical Parameters
1. Spindle speed: 8000r/min
(can also be determined according to user requirements)
2. Spindle runout error: less than ± 0.03mm
3. Axis offset adjustment: 0mm~5mm
4. Tested oil seal shaft hole range: Ø 7mm~Ø 200mm
5. Temperature control range: normal temperature~120 ℃
6. Control mode: RH-7018A variable frequency speed regulation, pneumatic pressurization, automatic control of variable frequency speed regulation during the test cycle, pneumatic pressurization, PLC control
7. Motor power: 2.2kw × 2
8. Power supply: AC380V three-phase four wire system (required)
Must have a neutral wire) 50Hz
9. Dimensions: 1200mm × 850mm × 1500mm
10. Net weight: 420kg
