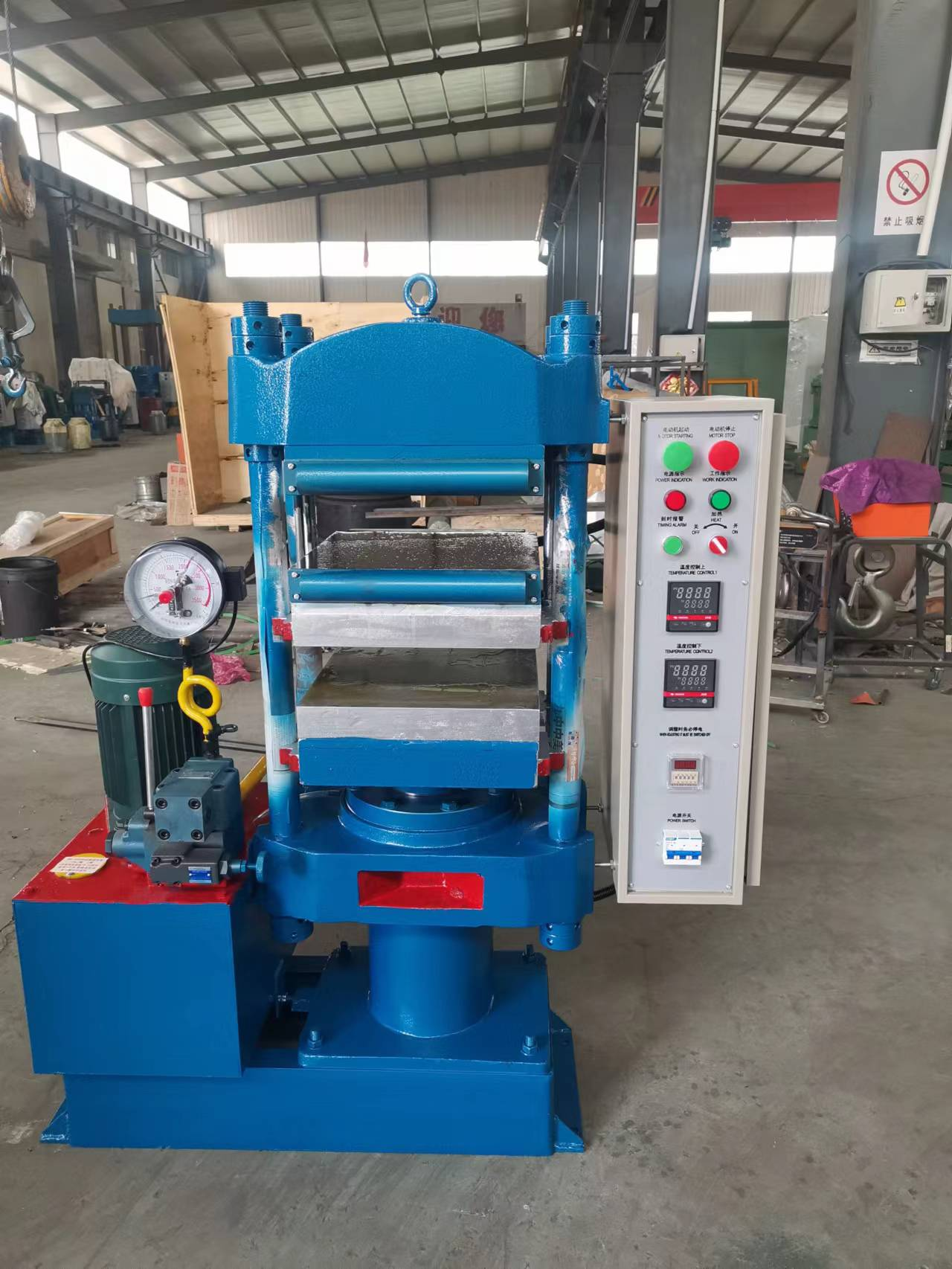

25T 300 × 300 × 1 vulcanizing machine

25T 300 × 300 × 1 vulcanizing machine
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

25T vulcanizing machine

,

300x300 vulcanizing press

,

rubber vulcanizing equipment
Basic Infomation
Brand Name: DAXIAN
Payment & Shipping Terms
Product Description

Technical Parameters

1. Nominal clamping force: 0.25 MN

2. Hot platen size: 300×300 mm

3. Hot platen thickness: 50 mm

4. Working layers: 2 layers

5. Quantity of hot platens: 3 pcs

 6. Heating mode: one‑layer electric heating, one‑layer water cooling

7. Heating temperature: adjustable from ambient temperature to 200 °C

 8. Temperature control mode: digital display meter

9. Specific pressure: 28 kg/cm²

10. Hot platen opening: 120 mm

 11. Plunger stroke: 250 mm

12. Plunger diameter: Φ152 mm

13. Oil cylinder quantity: 1 set

14. System hydraulic pressure: 14 MPa

15. Structure type: four‑column type

16. Column diameter: Φ45 mm

17. Power supply: 380 V, three‑phase four‑wire

 18. Motor power: 2.2 kW

19. Control mode: manual control


function
Button up, manual exhaust, automatic pressure compensation, automatic constant temperature, sulfurization timing, alarm upon arrival, manual descent
