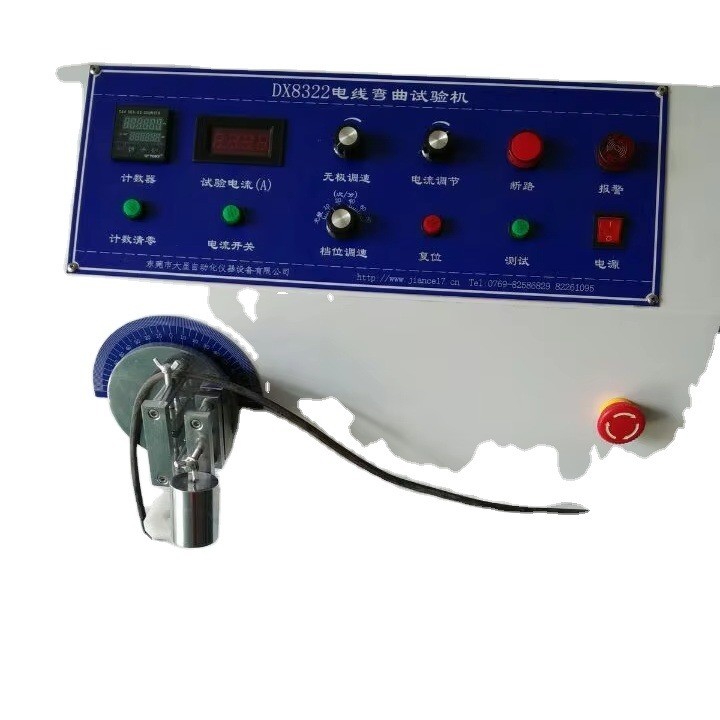

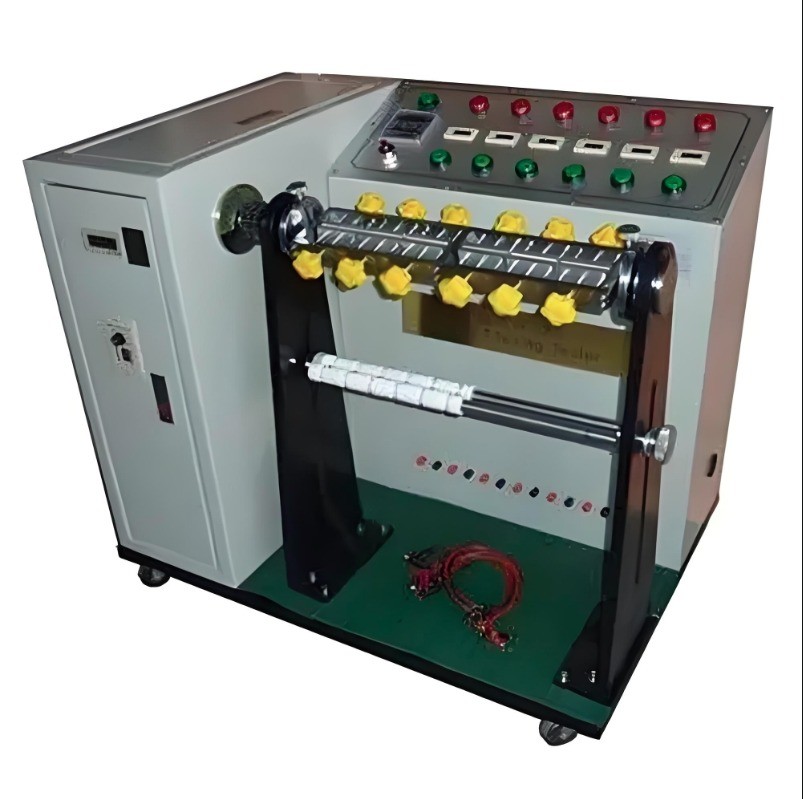

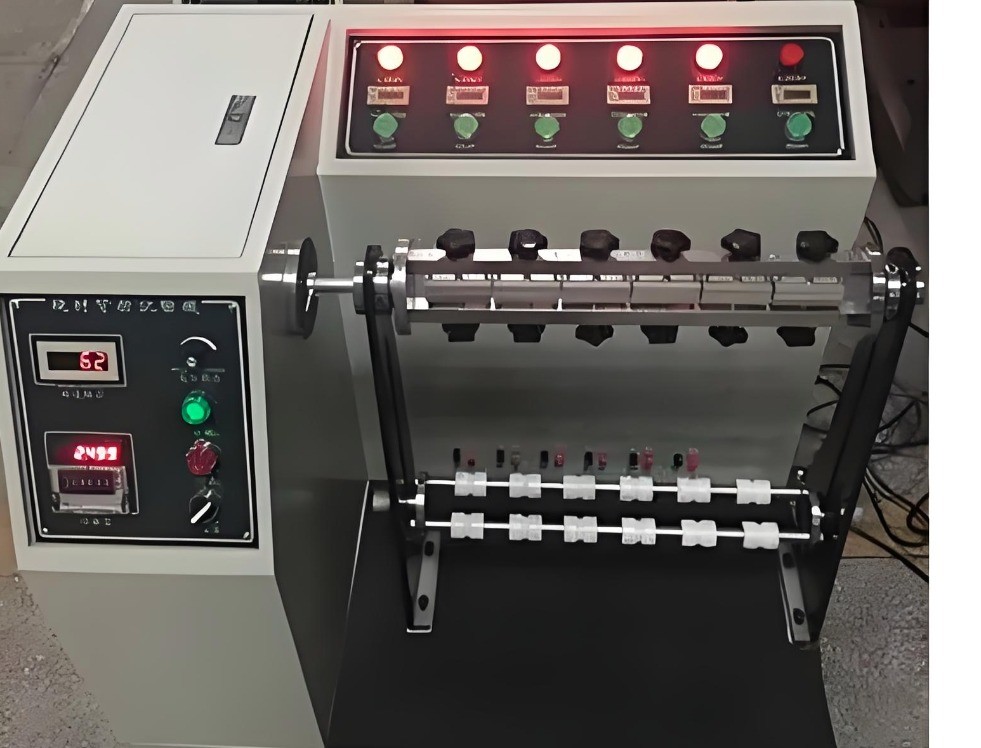

Repeated Electric Wire Bending Test Machine 1.1kW Suitable For Metal Wires

Technical parameters:

1. Sample diameter Φ 0.3- φ 10mm

2. Sample length 150-200mm

3. Bending angle ± 90 °

4. Bending speed<60 times/min

5. Counting range 0-9999

6. Motor power 1.1kW

7. External dimensions 1000 * 600 * 330mm

8. Testing machine weight 110Kg

Test method: Suitable for repeated bending test of metal wires with a diameter or thickness of 0.3mm-10mm; Repeated bending test is a repeated bending test in which one end of the specimen is fixed, bent 90 ° around a cylindrical support with a specified radius, and then bent in the opposite direction.

Compliant with standards: Compliant with GB/T4909.5-2009 and GB/T238-2002, mainly used for repeated bending tests of metal wires, including steel, aluminum, and copper, to test the performance of metal wires in withstanding plastic deformation during repeated bending and the defects displayed. After being equipped with a plate clamping device, bending tests can also be conducted on the plate specimens.

Scope of application: Widely used in the quality inspection and testing industry, as well as in manufacturers of steel wire ropes, aluminum, copper, wires and cables.

Suitable for repeated bending tests of metal wires with a diameter or thickness of 0.3mm-10mm; Test the ability to withstand plastic deformation during repeated bending. Repeated bending test is a repeated bending test in which one end of the specimen is fixed, bent 90 ° around a cylindrical support with a specified radius, and then bent in the opposite direction.

Technical parameters:

1. Sample diameter Φ 0.3- φ 10mm

2. Sample length 150-200mm

3. Bending angle ± 90 °

4. Bending speed<60 times/min

5. Counting range 0-9999

6. Motor power 1.1kW

7. External dimensions 1000 * 600 * 330mm

8. The weight of the testing machine is about 210Kg
