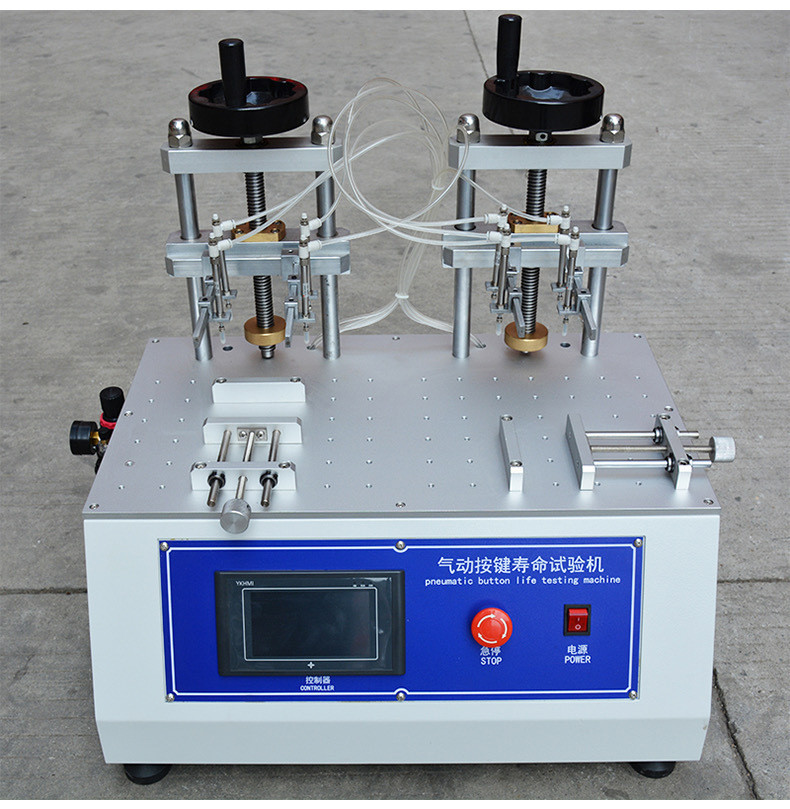

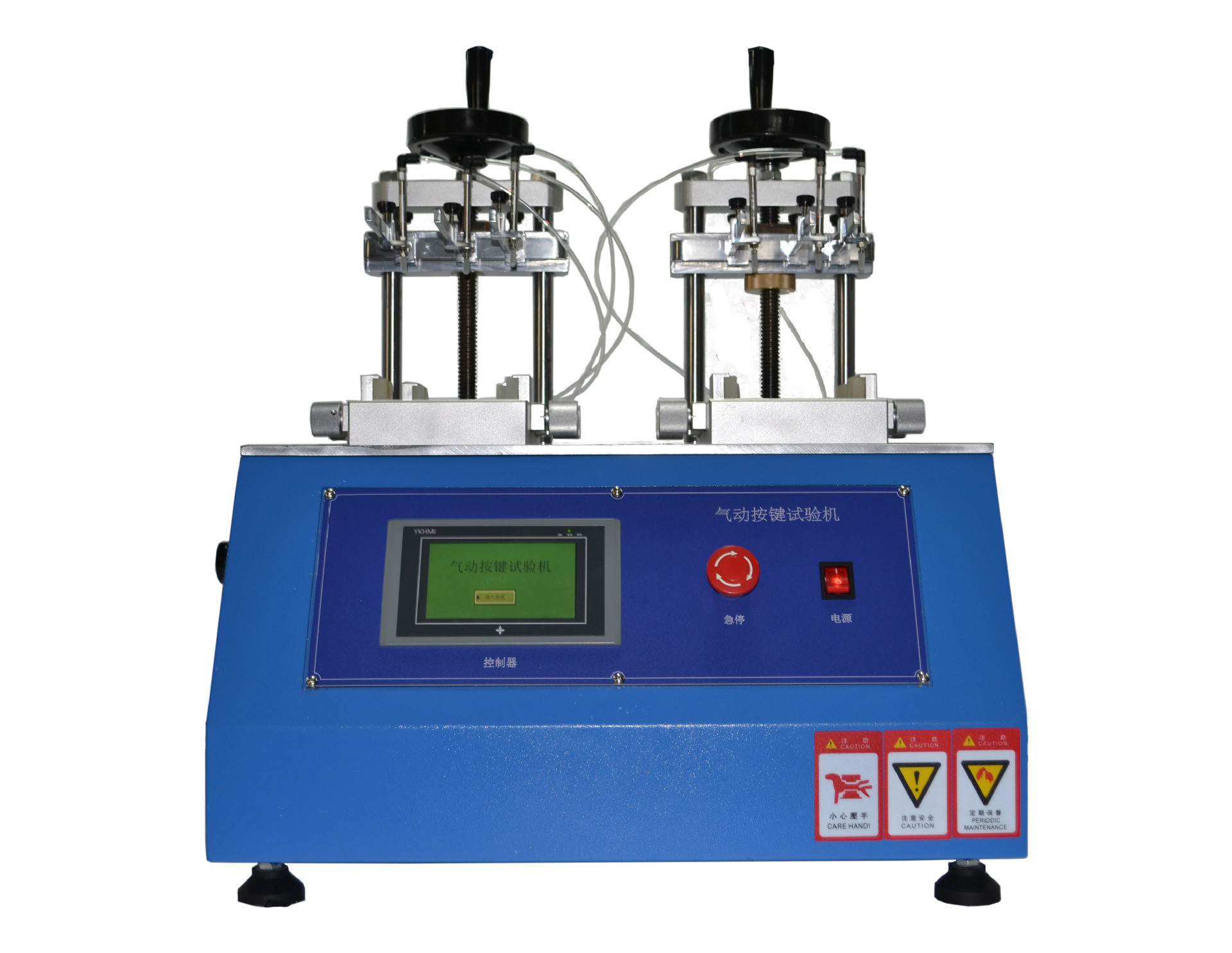

Pneumatic key life testers are widely used to test the service life of various keys, switches, and keyboards.
The pneumatic key life testing machine uses the Japanese SMC cylinder transmission to drive the keys up and down, so that the keys or keyboards and the probe have relative movements. Good clamping method, make your test accurate and productive, the probe can be moved in all directions, touch screen control, can accurately count, and automatically stop when the set number of times is reached.
[Technical Parameters]
Test station: 2 samples can be measured at the same time, and each sample has 4 buttons
Control mode: touch screen setting input direct action, simple and convenient action
Action mode: The cylinder drives the probe to do up and down reciprocating motion, which can be operated at the same time or 1-2-3-4 in order
Test speed: 1-10 times/min, manually adjustable
Test phone thickness: 10~50mm is acceptable
Clamping fixtures: clamping both sides of the lower cover
Height adjustment: Manually and directly adjustable
Machine size: 500×450×520mm
Power supply: 220V
Weight: about 60kg
Our advantages:
1. Professional technical support.
2. Rich experience in loading a large number of containers in Chinese seaports.
3. Fast shipping by well-known shipping company.
4. Best service with email after shipment.
5. We are a professional testing equipment manufacturer in China, with rich experience and skills, and also with the best quality products.
6. Timely after-sales service
Our Services
Our services:
1. High quality assurance.
2. Shipment of professional documents.
3. Packed according to your requirements, photos are attached before shipment.
4. Reply within 48 hours, 3 working days
5. Professional after-sales service of our engineers.
6. Warranty period is 12 months.
