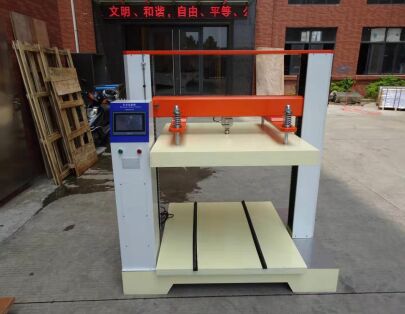

Carton Compression Testing Machine It Is A Basic Instrument For Testing The Compressive Strength Performance Of Corrugated Boxes (I.E., Packaging Testing Equipment)

Product Introduction: It is a basic instrument for testing the compressive strength performance of corrugated boxes (i.e., packaging testing equipment), suitable for compressive strength tests, compliance tests and stacking strength tests of various corrugated boxes.
Product features:
After the test is completed, it has an automatic return function, automatically determines the crushing force and automatically saves the test data
2. Three settable speeds, full Chinese LCD display operation interface, and multiple units to choose from.
3. Relevant data can be input and the compressive strength can be automatically converted. It has a built-in packaging stacking test function. The force and time can be directly set, and the machine will automatically stop after the test is completed.
4. Three working modes:
Strength test: It can measure the maximum compressive resistance of the box body.
Fixed value test: The overall performance of the box can be tested according to the set pressure.
Stacking test: According to the requirements stipulated by national standards, stacking tests under different conditions such as 12 hours and 24 hours can be conducted.
Comply with standards:
GB/T 4857.4-92 Methods for pressure testing of packaged transport packages
GB/T 4857.3-92 Test Method for Static Load Stacking of packaging and transport packages
Technical parameters:
Capacity selection: 0-1T (customizable according to customer requirements)
Accuracy level 1
Control mode: Touch screen
Force units switch to kgf, gf, N, kN, lbf
The stress units are switched to MPa, kPa, kgf/cm2, lbf/in2
Displacement units: mm, cm, in
The force resolution is 1/100,000
Display resolution 0.001N
The machine stroke is 1000
The size of the pressure plate is 1000*1000
The test speed can be freely input from 5mm to 100mm/min
The software functions can be interchanged between Chinese and English languages
The shutdown modes include overload shutdown, emergency stop button, automatic shutdown when the specimen is damaged, and automatic shutdown when upper and lower limit Settings are set
Safety devices overload protection and limit element protection devices
Machine power AC variable frequency motor drive controller
High-precision ball screw for mechanical systems
Power supply: AC220V/50HZ to 60HZ 4A
The machine weighs approximately 650 kilograms
The performance features include the ability to set the percentage fracture value, automatic shutdown, access to the menu to select 4 different speeds, support for 20 test results, and the ability to view the average value and individual test results of all tests

Hardware performance features:
1. 32-bit embedded processing chip, with a fast instruction cycle;
2 Strain measurement accuracy is greater than 4 grades, that is, the resolution is greater than 20,000 yards.
3 The software coefficient is used for file calibration (correction). Effectively correct the linearity of the sensor;
4.4 frequency-doubled photoelectric encoder with bidirectional counting in both forward and reverse directions, high resolution;
5 The display adopts a large-screen monochrome LCD with a 192×64 dot matrix, which can show more information.
6.1 RS232 serial ports, which can be connected to other devices;
7.1 parallel printing ports, which can be connected to micro printers or dot matrix printers;
8.8 control keys (5 function keys and 3 reusable keys), simple operation;
9 Display function: At the end of the test, it can automatically display and remember the maximum force during the test process.
10 Save output: Up to 20 test results can be recorded.

Random standard accessories
One one-year warranty and one Chinese operation manual.
2. Two rolls of printing paper will be randomly given away.
3. One high-precision load sensor;
4. One micro printer (capable of printing test reports).
5. One power cord;

Safety device
1. Travel protection: Set upper and lower limit protection starts to prevent exceeding the preset travel.
2. Force protection: The system can set the maximum force value to prevent exceeding the sensor calibration value.
3. Emergency stop device: An emergency stop switch is provided on the right side of the base to handle unexpected situations.

Job Requirements
Room temperature: 25℃
2. Power supply voltage: 220V. The power supply should be reliably grounded.
3. The working environment is clean, free from strong vibration sources, and the main unit is stably supported.
Note: The above parameters are for standard models. If you have any special requirements, our company can design the most suitable solution according to your needs!
