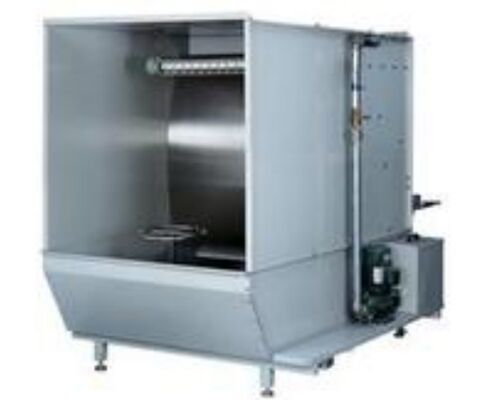

Water Curtain Cabinetis Mainly Used As An Environmental Protection Equipment For Handling Spray Painting Exhaust Gases In Spray Painting Assembly Line Workshops In Various Industries

II. Functions and Working Principle
The environmentally friendly water curtain cabinet (spray painting table) is mainly used as an environmental protection equipment for handling spray painting exhaust gases in spray painting assembly line workshops in various industries. Its working principle is that a self-suction pump circulates water and pumps it evenly down onto the water curtain plate. The exhaust gas (painting materials) sprayed by the spray gun is hit by the water on the water curtain plate and then flows into the water drain below. A small portion of the exhaust gas (painting materials) is discharged outside the workshop through the exhaust duct by the fan on the top. This ensures that there is little exhaust gas (painting materials) in the workshop, providing a better working environment for everyone. The main feature is that the remaining paint powder during spray painting can be directly sprayed onto the water pool or the water curtain surface. The smell generated during spray painting and the small amount of unabsorbed paint powder are filtered by multiple layers of water curtains and then discharged outside the spray painting room through the exhaust fan, thereby achieving the purpose of purifying the spray painting working environment and protecting personal health. It can also enhance the smoothness of the surface of the painted workpieces.
II. Equipment Parameters: 1
2. Type: Single-sided water curtain type
3. Internal dimensions of the equipment: W1500XD1200XH1800mm. Width, depth, height (including water pool)
4. External dimensions of the equipment (approximate): W1500XD1400XH2250mm. Width, depth, height (height does not include fan)
5. Water pool plate: National standard 1.2mm cold-rolled steel plate, oil-pressed welding. Water pool height is approximately: 300mm
6. Side plate: National standard 1.2mm cold-rolled steel plate, oil-pressed forming. Side plate height is approximately: 2400mm
7. Top plate: National standard 1.2mm cold-rolled steel plate, oil-pressed forming
8. Water basin plate: Made of 201# stainless steel plate, oil-pressed combination
9. Distance between water curtain plate and cabinet opening: Maximum size: 400mm
10. Bottom: 1.5X50X50 iron square tubes welded for reinforcement.
11. Installation of base frame: M12X100 adjustable foot cups, for adjusting level
12. Filter water tank: National standard 1.5mm cold-rolled steel plate, oil-pressed welding, 400*300MM, equipped with filter screen
13. Connection points: Connection plates and plates are connected by screws
14. Spray water collection type: Spray water washing
15. Circulation pipeline: (Iron) pipeline, diameter 63MM, 2 inches
16. Fan: 3P 380V vertical fan ×1 unit (Jiu Zhou)
17. Water pump: 3P 380V 50Hz water pump ×1 unit
18. Explosion-proof fluorescent lamp: 40W ×1 set (double tube)
19. Control box: One set (Zhengtai)
20. Power supply: 3-phase 4-wire
