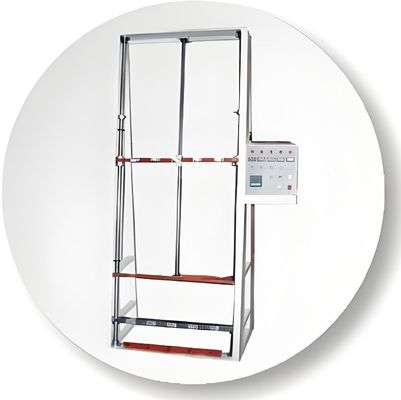

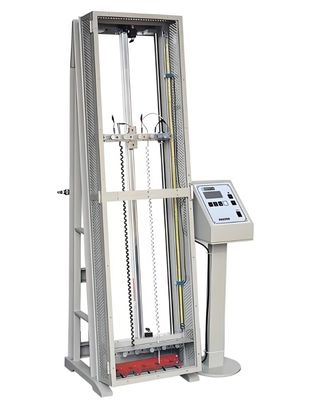

This machine is specifically designed to test the service life of winding wires. During testing, the specimen is subjected to continuous reciprocating stretching and contraction under pneumatic force while being energized, When the current is interrupted or reaches the set number of times, inspect the damaged area and the number of times it expands and expands.
Technical parameters:
Test materials:5 (pcs)
Expansion spacing of 300-1800mm
Expansion and contraction speed of 10-30 c.p.m
Air pressure source 7kg/cm²
Counter 6 digits
Volume (W×D×H) 90 × 60 × 200cm
Electric control box 28 × 30 × 112cm
Weight 170kg
Power supply 1∮AC 220V 2A
