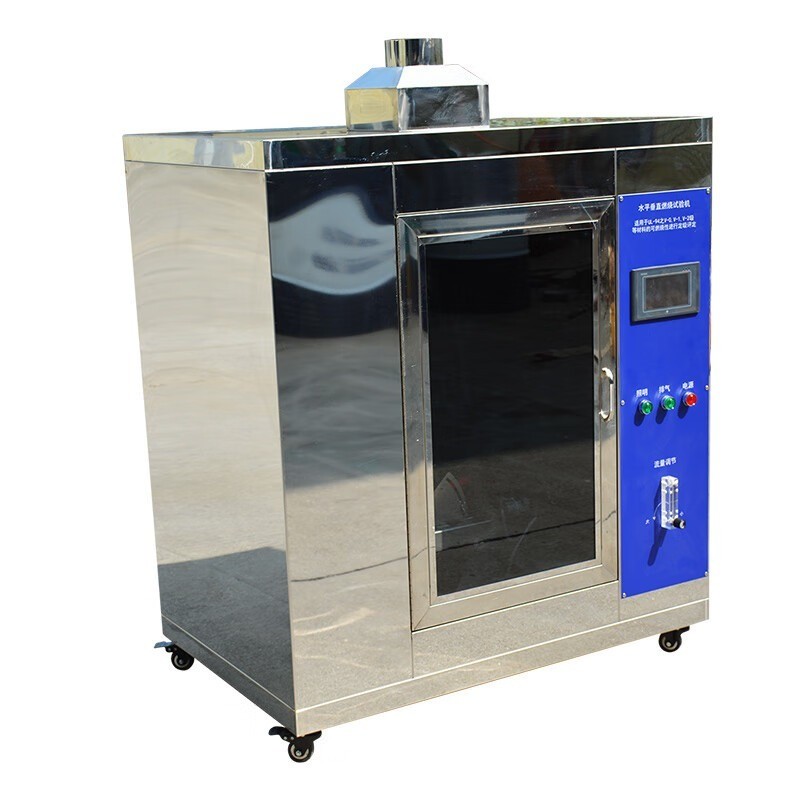

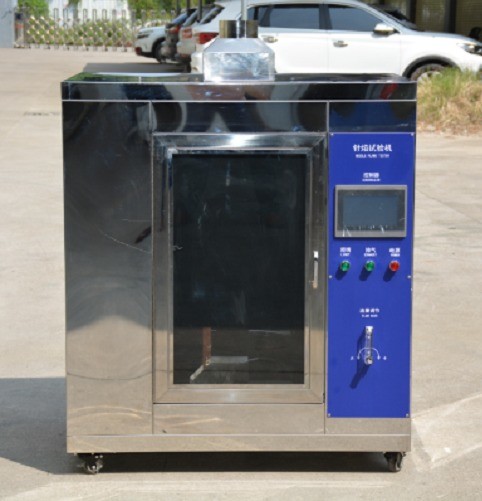

AC220V 50Hz Needle Flame Test Apparatus Flame Retardant Tester For Electronic Components

The needle flame tester is suitable for testing the flame retardant performance of electronic components, electrical devices, mechanical parts, injection molded parts and other electrical products. This machine simulates the small flame generated inside the product under fault conditions, and uses simulation technology to evaluate the fire hazard.

The needle flame tester is composed of three parts: the needle flame burner, the workroom and the temperature measuring device.

This machine conforms to IEC60695-2-2 (2004), GB5169.5-2008, GB4706.1 and other test standards.

Working voltage: AC220V, 50Hz;

Flame application time: adjustable (0~999.9S);

Burning time: 0~999.9S, automatic recording, random pause;

Flame height: 12±1mm adjustable;

Flame temperature measurement: from 100°C±5°C to 700°C±3°C the time is 23.5S±1S, temperature display: 0-1000°C±0.5°C;

Gas source type: butane (user-supplied);

Flame application angle: 0~45° adjustable;

The gas volume can be adjusted (flow meter);

 Dimensions: 1100X1150X550mm (internal volume greater than 0.5 cubic meters,

One adapter plate, five pieces of silk paper, and one pine board

1. We guarantee that the goods fully comply with the quality, specifications and performance requirements stipulated in the contract;

2. Before delivery, we will conduct accurate and comprehensive testing of the products; Packing according to your requirements, pictures are attached before shipment for your confirmation, delivery is made on schedule, and professional shipping documents are provided;

3. We will provide you with quality service immediately, reply within 48 hours after receiving the quality message, and provide appropriate solutions within 3 working days;

4. After acceptance, our engineers will provide professional and technical services free of charge, such as video guidance and teaching, and on-site guidance and teaching if necessary;

5. We provide a 12-month warranty period, and in the event of quality problems during the product warranty period (not caused by human factors), we guarantee to provide free repair, maintenance and replacement of damaged and defective parts services;

Our advantages:

1. Professional technical support.

2. Rich experience in loading a large number of containers in Chinese seaports.

3. Fast shipping by well-known shipping company.

4. Best service with email after shipment.

5. We are a professional testing equipment manufacturer in China, with rich experience and skills, and also have the best quality products.

6. Timely after-sales service.
