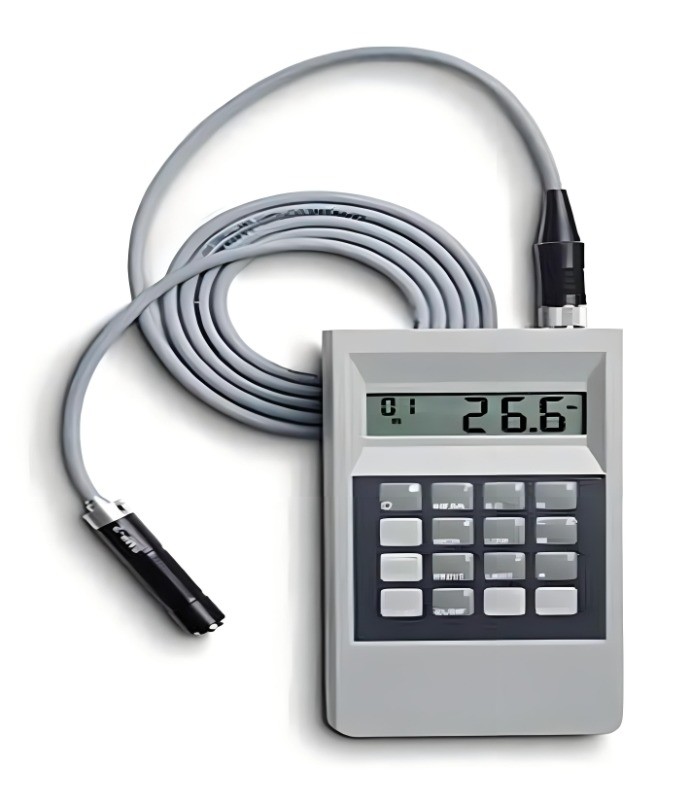

1. Introduction:
The handheld coating thickness gauge is a portable measuring instrument that can quickly, undamaged, and accurately measure the thickness of coatings and coatings. It can be used in both laboratories and engineering sites.
2. Scope of application:
This instrument adopts magnetic and eddy current thickness measurement methods, which can non-destructive measure the thickness of non-conductive coatings (such as oxide film, enamel, rubber, paint, plastic, etc.) on non-magnetic metal substrates (such as copper, aluminum, zinc, tin, etc.). This instrument has the characteristics of small measurement error, high reliability, good stability, and easy operation
Hand held coating thickness gauge: widely used in manufacturing, metal processing, chemical industry, commercial inspection and other testing fields. It is an essential instrument for the material protection profession
3. Instrument features:
Small design, easy to carry
Fully intelligent design, easy to operate
Fast measurement and good repeatability
Zero point calibration, two point calibration
Single measurement and continuous measurement
LCD digital display
There is a buzzing sound during the operation process to prompt
Delete individual suspicious data that appears in the measurement
Two probe designs suitable for different detection locations
Equipped with power undervoltage indication function
Comes with a random power charger that can charge two batteries
Equipped with automatic shutdown function
4. Main technical indicators:
Operating environment temperature: 0-40 ℃
Power supply: 9V * 1
Statistical function (single measurement): average, maximum, minimum, number of measurements
Minimum substrate: 10 * 10mm
Minimum curvature: convex 5mm; Concave 25mm
Thinnest body: 0.5mm
External dimensions: 125 × 74 × 33
Weight: 280G
Measurement range: 0-1000 μ M (optional)
Measurement accuracy: Zero point calibration,+(3% h+1.5)
Two point calibration:+(1% -3%) H+1.5
Display accuracy: 0.1
5. The main functions of the handheld coating thickness gauge are:
Two calibration methods: one point calibration and two point calibration.
Basic calibration display resolution:
0.1 μ M (measurement range less than 100μM)
1 μ M (measurement range greater than 100μM)
Set five statistics and store 459 data points
There are two measurement methods: continuous measurement and single measurement
There are two shutdown methods: manual shutdown and automatic shutdown
Limits can be set: automatic alarms can be triggered for measured values outside the limit, and a histogram can be used to analyze a batch of measured values;
Has deletion function: can delete large errors and incorrect settings;
With power undervoltage indication function
Can work while charging
Error prompt function
6. Basic configuration of handheld coating thickness gauge:
Host |
1 |
N1 measuring head |
1 |
Calibration standard piece |
1box |
Batteries |
2 |
1. Ensure the high quality of the product.
2. Packaging can be done according to customer requirements and pictures can be attached before shipment.
3. Transport professional documents
4. Provide professional product consultation before sales, and we guarantee to answer any professional technical questions you may have within 48 hours; Provide timely product technical services after sales, and provide solutions within three working days.
5. Our engineers provide professional after-sales service
6. The warranty period is 12 months. During the warranty period, we are responsible for providing free maintenance, upkeep, and replacement of damaged and defective parts (under normal use) for the user's equipment. After the free warranty ends, service fees will be charged at your discretion.
7. Provide the fastest response to maintenance and assistance requests from users. After the user submits a maintenance request, ensure to provide professional technical support in the shortest possible time and in the fastest way possible.
