Product name:
|

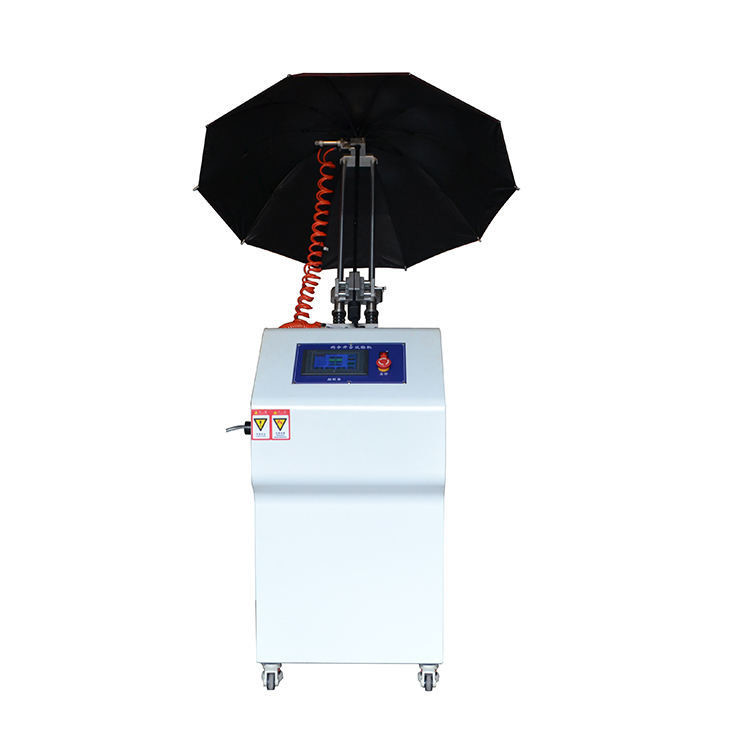

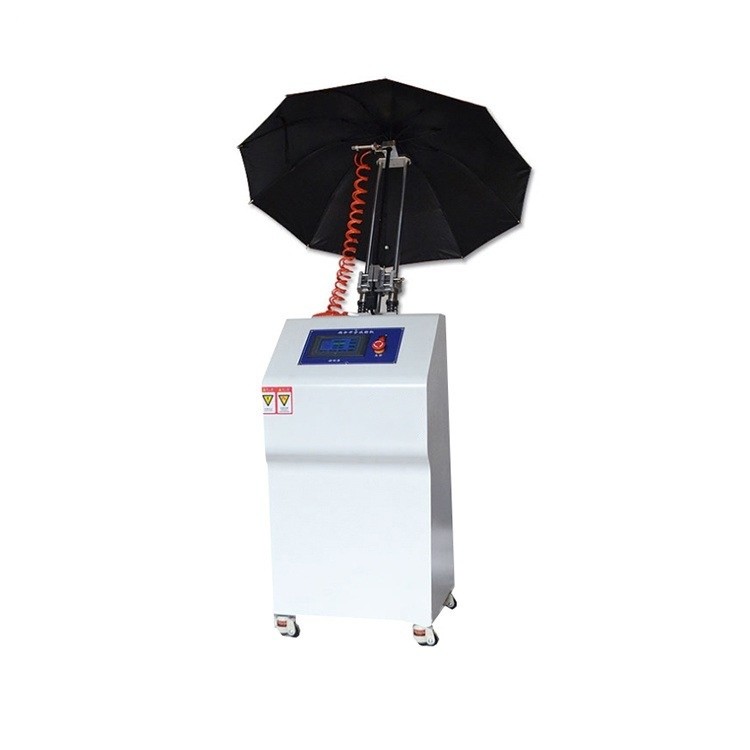

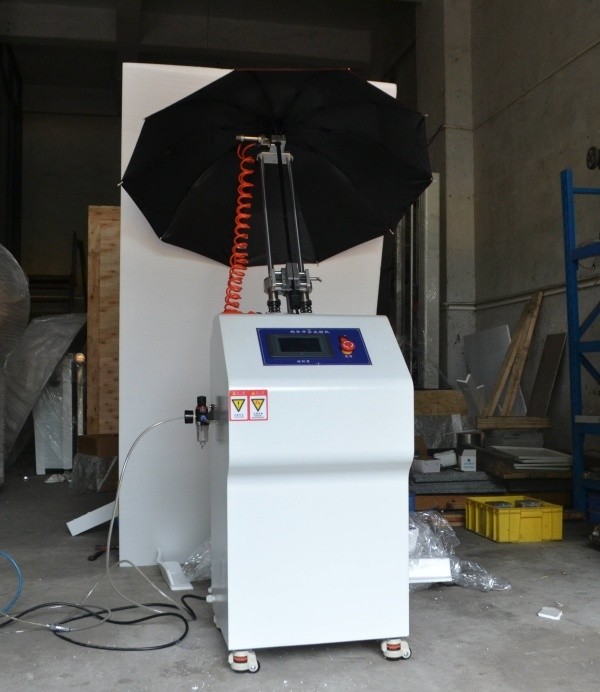

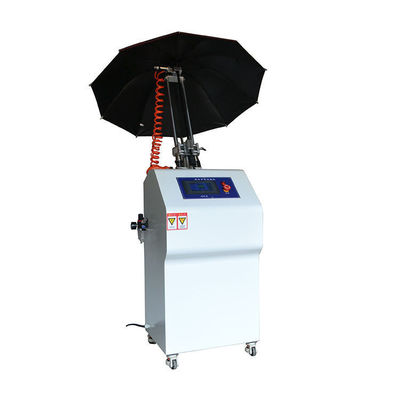

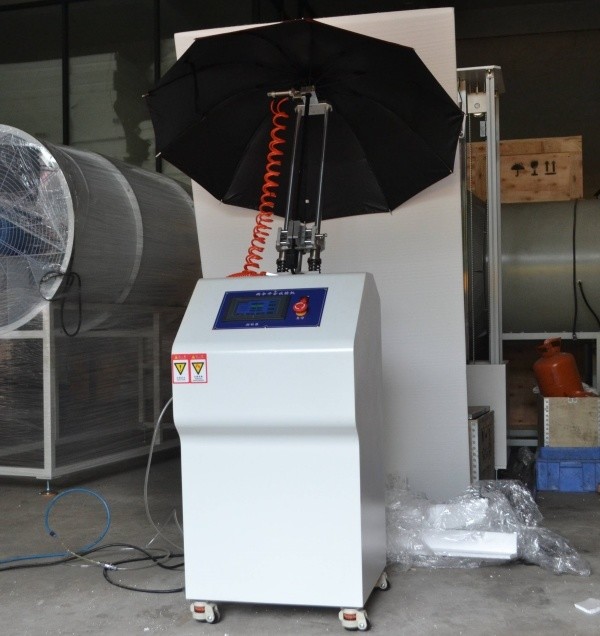

Umbrella continuous opening and closing life testing machine
|
Overview:
|
The umbrella opening and closing life testing machine is one of the umbrella testing machine series. This machine uses a cylinder
to expand and contract to simulate the manual opening and closing of the umbrella. The cylinder drives to tighten the umbrella rod, and detects whether the umbrella will be damaged (switch failure). Umbrella disk defect, spring failure, umbrella fracture, broken connection, etc.), to provide reliable and beneficial evidence for improving product quality. |
Standard:
|
On the basis of standard:GB/T23147-2008
|
Technical Parameters:
|
Stroke:within 700mm Adjustable
Speed:5-10 times /min Adjustable Snap stroke:20mm Control:PLC control Count:0-999999 times can be set Air source:Exceed 6kg/cm2 Power:220V Machine size(L×W×H):600×600×1600mm Machine weight:80KG |
