Features

Specifications

Warranty: 1 Year

Customized Support: OEM, ODM, OBM, Software Reengineering

Place Of Origin: Guangdong, China

Model Number: CF8610

Power: Electronic

Sample Sliding Diameter: 900mm

Machine Standard: EN17092

Weight Of The Equipment: 1083kg

Pressure Control System Power Supply: AC380V 3kw

EN17092 Tester Size: 1.3m 1.5m 1.6m

Highlight:

Fabric Abrasion Resistance Testing Machine

Motorcycle Protective Clothing fabric abrasion tester

AC380V Abrasion Resistance Testing Machine

Basic Infomation

Place of Origin: China

Brand Name: CHENGFENG

Certification: ISO,CE

Payment & Shipping Terms

Packaging Details: Wooden cases

Delivery Time: 10 Work Days

Payment Terms: T/T,Cash,L/C,Western Union,MoneyGram

Supply Ability: 5 units per month

Gallery

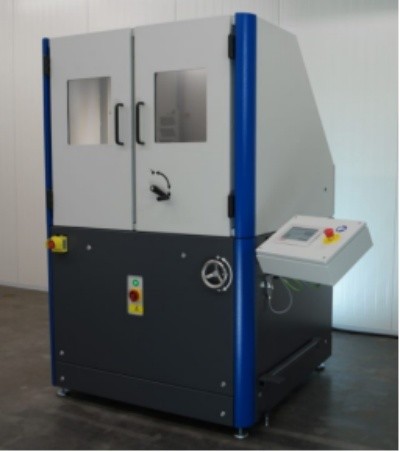

AC380V Fabric Abrasion Resistance Testing Machine For Motorcycle Protective Clothing

Product Description

Specification

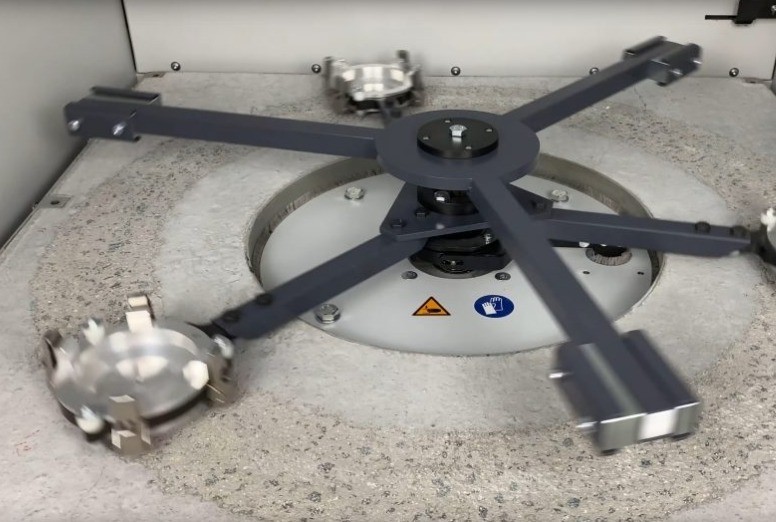

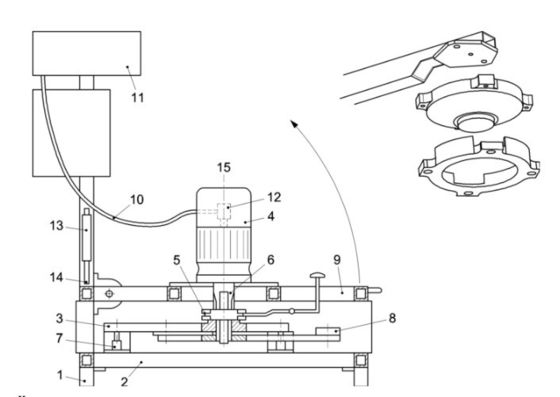

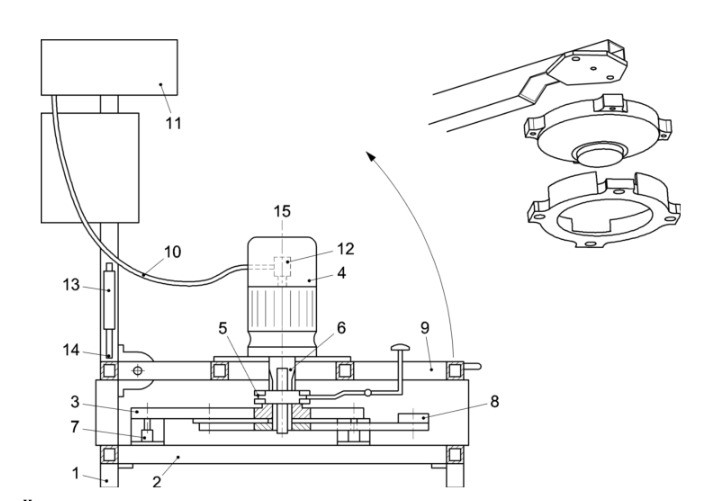

EN 17092-1 Test Equipment Overview:	Impact abrasion resistance: Used to test the impact friction performance of protective clothing for motorcycle drivers. This test simulates the stress that is placed on the protective garments when worn by an average rider (with a body mass of 75kg and a height of 1.75m), when sliding from variable initial speeds to standstill on a real concrete road surface. All removable liners (for example, waterproof or thermal) are removed from the garment and the weakest combination(s) are tested. In one run, three specimens of the material(s) are mounted in holders in warp, weft and at 45 degrees. They are then attached to rotating arms positioned above a concrete tile. Once the desired speed has been reached, the specimens impact on the surface and come to a natural stop. If the specimens do not hole, the test is repeated a further two times. To pass, no holes with an opening of 5mm or more in any direction are to be present on the layer closest to the body.
Standard :	Testing apparatus for prEN 17092-1:2017.
EN 17092-1 Test Equipment Technical Parameters:	1) Sample carrier number of samples: 3 2) Sample sliding diameter: 900mm 3) Drop height: (10±1)mm 4) Static pressure on sample: 18,75kPa 5) Weight of the sample carrier: 10,83kg
Fabric testing equipment series	EN 17092-1 Test Equipment

1. Unique selling point: 12 years of professional research and development, only solving problems for customers. 2. Professional team: A technical research and development team with 12 years of experience, leading in professional knowledge and practical skills. 3. Quality assurance: The company strictly controls quality standards, meets customer standard requirements, and exceeds customer expectations. 4. Innovation ability: Develop products that meet customer needs, and years of experience make product development forward-looking and leading. 5. Competitive advantages: reliable quality, flexible and applicable equipment performance, reasonable equipment prices, high delivery speed, and guaranteed customer after-sales service. 6. Provide customized solutions for customers: fully understand customer needs, provide personalized solutions, and completely solve customer problems. 7. Reliability and credibility: The company operates steadily for a long time, winning the long-term trust of customers and solving their concerns.

Packing & Delivery

FAQ

Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?
A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
