Home /Products/Industrial Automation Equipment/Electronic High Temperature Tensile Strength Testing Machine 0.01kN High Accuracy

Electronic High Temperature Tensile Strength Testing Machine 0.01kN High Accuracy

1 Set
MOQ
US$2000-$30000
Price
Electronic High Temperature Tensile Strength Testing Machine 0.01kN High Accuracy
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM, OBM, Software Reengineering
Place Of Origin: Guangdong, China
Model Number: CF9264
Test Force Measuring Range KN: 4%-100%FS
Test Force Resolution: 0.01kN
Max Compression Space: 380mm
Shear Specimen Diameter: 10 Mm
Pump Motor Power: 1.1KW
Net Weight: 1700kg
Highlight:

High Temperature Tensile Strength Testing Machine

,

Tensile Strength Testing Machine 0.01kN

,

tensile strength tester 0.01kN
Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T,Cash,L/C,Western Union,MoneyGram
Supply Ability: 5 units per month
Product Description

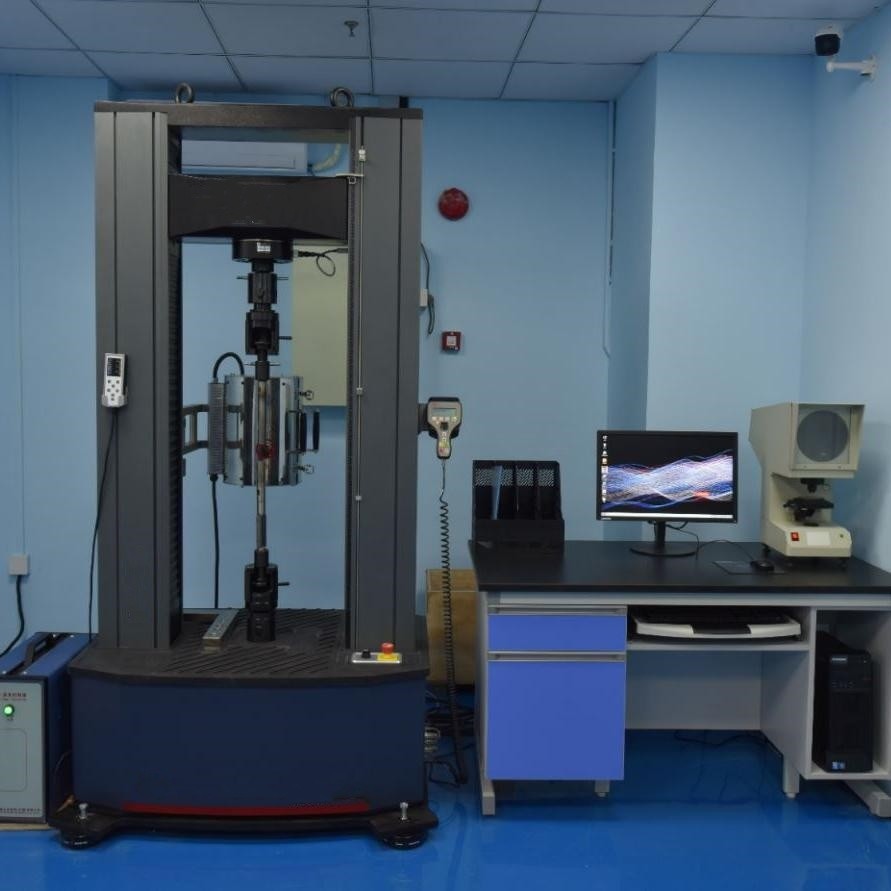

Electronic High Temperature Tensile Strength Testing Machine 0.01kN High Accuracy 0

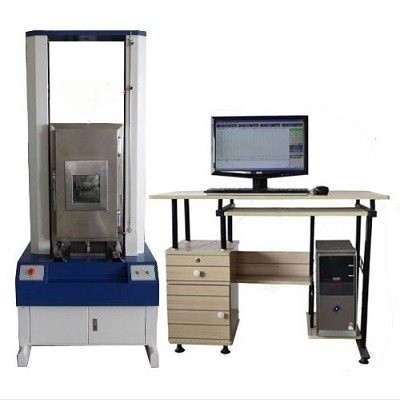

Electronic High Temperature Tensile Strength Testing Machine 0.01kN High Accuracy 1

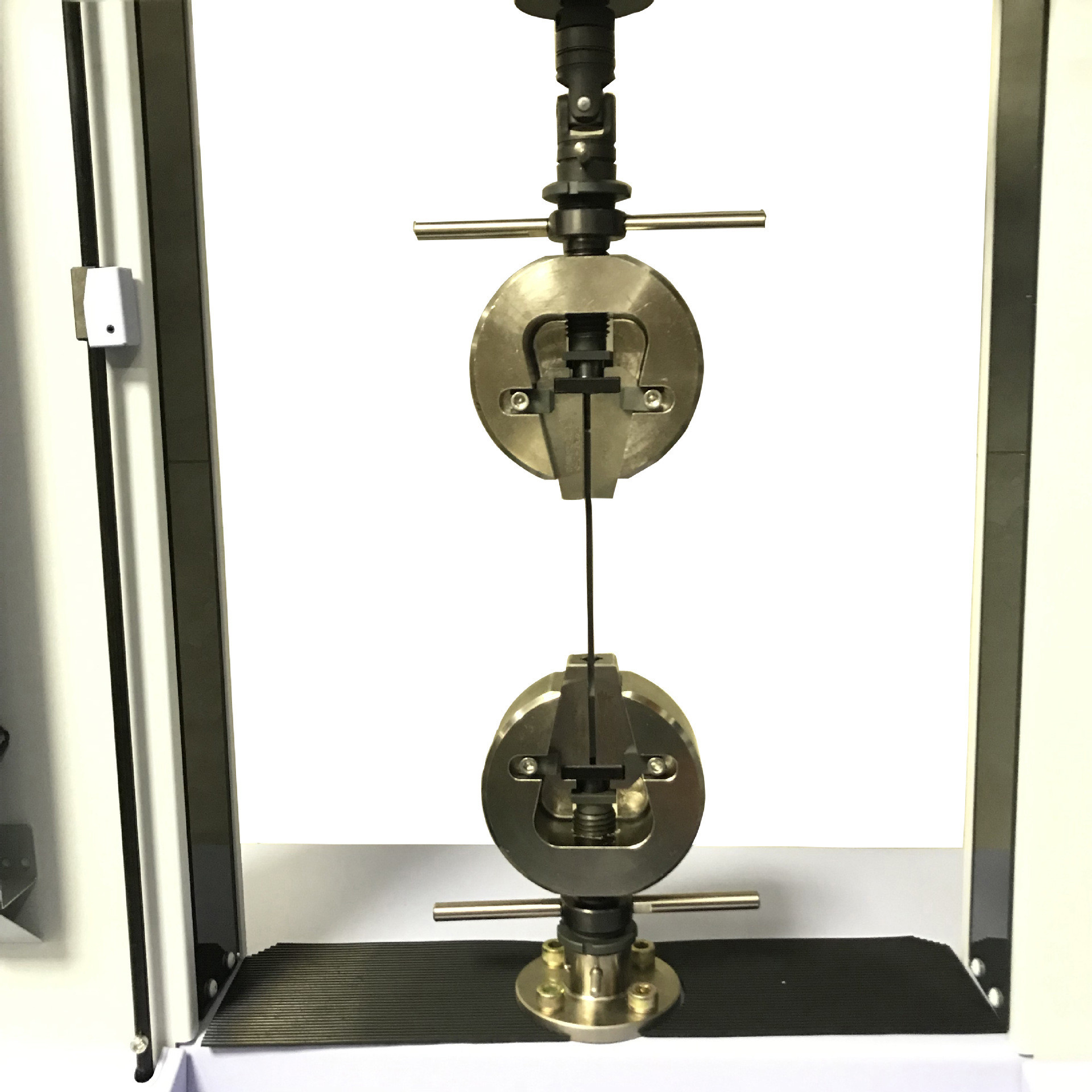

Electronic High Temperature Tensile Strength Testing Machine 0.01kN High Accuracy 2
Specification
Introduction:
Used to a variety of metal materials, tensile, compression, bending, shearing accompanied by increased shear test can be done, can be used as plastic, concrete, cement and other non-metallic materials, compression tests, with simple accessories to complete the
chain tape , wire, welding rod, tile's wide range of performance tests and components.This machine adopt under the fuel
tank-mounted machine, low profile, light weight, especially for the engineering construction sector.
Host:
Adopt oil cylinder under mounted type host, stretching space is at the top of host, compression test space is between the at the
work table and the crossbar .
Fixture: Will provide the suitable fixture according to the customer request, please kindly note.
Transmission system:
Down beam go up and down by the use of motor reducer, chain drive mechanism, vice screw drive, to achieve tensile, compression of
space to adjust.
Hydraulic System:
The oil tank is sucked through the filter screen and be inhaled pump oil ,through the petroleum pipeline of oil pump transport to
oil valve,When the hand wheel to send off the oil, due to the role of oil will push the piston, the oil from the return pipe to
tank, when the hand wheel to open get the oil, then the working fluid into the fuel tank through the tubing, pressure tubing
through and through oil return valve to tank.
Control system:
Electronic force measurement, liquid crystal display test force - time curve, test power, peak test power, has obvious
characteristics of the material yield strength yield the experimental data easy and intuitive;
Through digital button input sample numbers, cross-sectional area, can be directly measured the material tensile strength, yield
strength and other mechanical properties; can query the experimental results, print (with micro-printer)
Through digital button input sample numbers, cross-sectional area, can be directly measured the material tensile strength, yield
strength and other mechanical properties; can query the experimental results, print (with micro-printer).
Technical specifications:
Range:whole journey didn't sub-file ,equivalent 3 grade
Test force measuring range KN:4%-100%FS
Test Force showed the relative error:≤indicating value±1%
Test Force Resolution:0.01kN
Displacement measurement resolution mm:0.01
Max compression space:380mm
Shear specimen diameter:10 mm
Upper and lower compression plate size mm:Φ160(option 204×204)
The maximum distance between the fulcrum bending:450
Pump motor power:1.1KW
Beam moves up and down motor fixed rate:0.75 KW
Net weight:1700kg
Safety protection device:
When the test force more than 3% of the maximum test force, the overload protection, oil pump motor shut down.
When the piston rises to the upper limit position, stroke protection, pump motor shut down.


1. Unique selling point: 12 years of professional research and development, only solving problems for customers. 2. Professional team: A technical research and development team with 12 years of experience, leading in professional knowledge and practical skills. 3. Quality assurance: The company strictly controls quality standards, meets customer standard requirements, and exceeds customer expectations. 4. Innovation ability: Develop products that meet customer needs, and years of experience make product development forward-looking and leading. 5. Competitive advantages: reliable quality, flexible and applicable equipment performance, reasonable equipment prices, high delivery speed, and guaranteed customer after-sales service. 6. Provide customized solutions for customers: fully understand customer needs, provide personalized solutions, and completely solve customer problems. 7. Reliability and credibility: The company operates steadily for a long time, winning the long-term trust of customers and solving their concerns.
Packing & Delivery

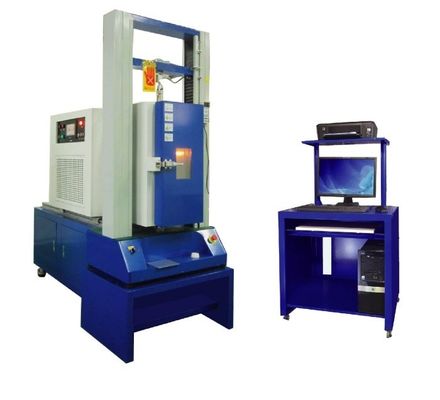

Electronic High Temperature Tensile Strength Testing Machine 0.01kN High Accuracy 3
FAQ
Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?
A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
