CFR 1633 Mattress Combustion Testing Equipment Heat Release Rate Test Device

CFR 1633 Mattress combustion heat release rate test device

Compliant: Complies with 16 CFR 1633 United States Government Standard for Flammability of Mattresses 16 CFR Part 1633 "Standard for the flammability (open flame) of mattresses sets" 16 CFR 1633 Mattress kit flammability standard (open flame test) test standard requirements.

Scope of application:

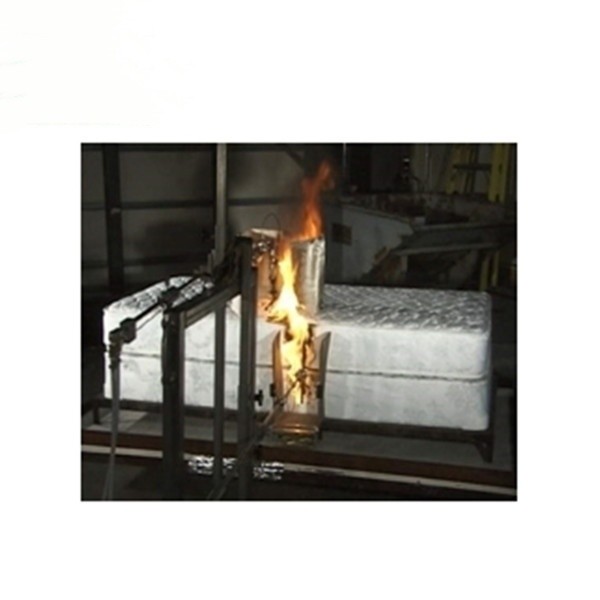

It is mainly suitable for assessing the combustion and heat release of a mattress or mattress set when it is subjected to an ignition source, similar to that of burning sheets;

16 CFR 1633 is a U.S. federal standard that all manufacturers and importers of mattresses and mattress sets must comply with.

Performance Parameters:

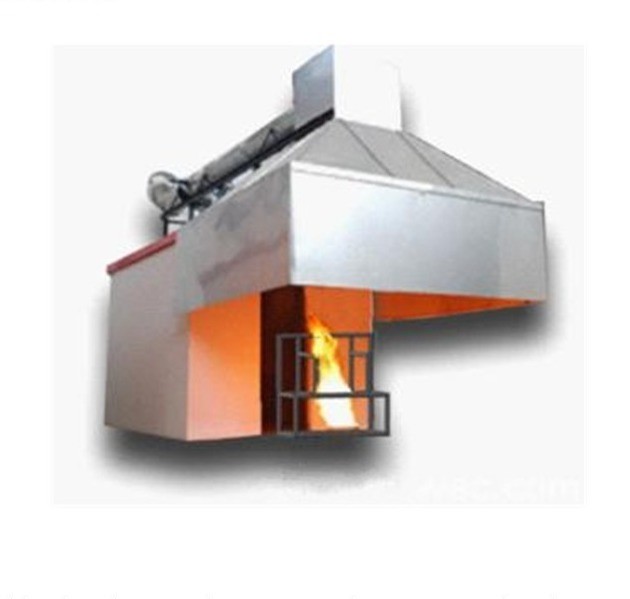

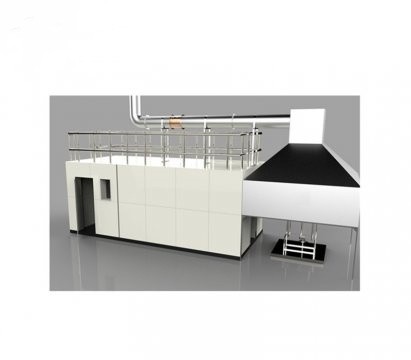

1. Size of combustion chamber and gas collection hood: length 3700× width 3100× height 2438mm;

2. Gas analyzer:

    CO2 Measurement range: 0~6.0%, accuracy: ±0.1%;

    Carbon monoxide Measurement range: 0~1.0%, accuracy: ±0.02%.

    Oxygen Analyzer: Paramagnetic Oxygen Analyzer, O2 Measurement Range: 0-25%

    Repeatability: <±0.01%

    Zero drift: ≤±0.2%/month

    Range drift: ≤0.5%/month

    Linearity: <±0.1%

    Response time: T90≤2.5 seconds

    RS485 communication interface

3. Burner device: including 1 mattress burner device, 1 sofa burner device and 1 soft chair burner device.

4. Waste gas treatment device: the burned waste gas meets the direct emission requirements after treatment.

5. Gas supply system:

      Combustion gas: propane, purity more than 95% (provided by the user)

     Gas flow accuracy: ≤0.1L/min (when the flow rate is 12.9L/min); ≤ 0.05L/min (at 6.6L/min flow)

6. Video system: meet the requirements of the whole on-site video system required in the standard.

7. Power supply voltage: 220V±10%, 50Hz;

Our advantages:

1. Professional technical support.

2. Rich experience in loading a large number of containers in Chinese seaports.

3. Fast shipping by well-known shipping company.

4. Best service with email after shipment.

5. We are a professional testing equipment manufacturer in China, with rich experience and skills, and also with the best quality products.

6. Timely after-sales service

After-sales service :

1. We guarantee that the goods fully comply with the quality, specifications and performance requirements stipulated in the contract;

2. Before delivery, we will conduct accurate and comprehensive testing of the products; Packing according to your requirements, pictures are attached before shipment for your confirmation, delivery is made on schedule, and professional shipping documents are provided;

3. We will provide you with quality service immediately, reply within 48 hours after receiving the quality message, and provide appropriate solutions within 3 working days;

4. After acceptance, our engineers will provide professional and technical services free of charge, such as video guidance and teaching, and on-site guidance and teaching if necessary;

5. We provide a 12-month warranty period, and in the event of quality problems during the product warranty period (not caused by human factors), we guarantee to provide free repair, maintenance and replacement of damaged and defective parts services;
