Flooring Material Radiation Heat Flux Testing Device Complies With The Test Standards Of GB/T11785-2005 And ISO9239-1

Scope of application

It is suitable for testing floor materials that are placed horizontally with a small flame and exposed to an inclined thermal radiation field under specified conditions. It is suitable for all kinds of flooring materials. Such as: textiles, carpets, cork boards, wood boards, rubber boards, plastic flooring and floor spraying materials. This device can reflect the combustion performance of the floor covering material, including the base material used. Changes in the backing material, base material or other aspects of the floor covering material may affect the test results. It is used to test and describe the combustion characteristics of the floor covering material in response to fire and heat under laboratory control conditions.

Compliance with standards: Complies with the test standards of GB/T11785-2005 and ISO9239-1 "Determination of Fire Performance of Paving Materials - Radiant Heat Source Method".

Technical parameters
The measurement range of the heat flux meter is: (0-15) Kw/m ²
Accuracy of the heat flux meter: ±0.2Kw/m ²
Heat flux meter accuracy: <±3%;
The range of the thermal radiation high-temperature meter is 400-600℃, with an accuracy of ±0.5℃.
Blackbody temperature error: ±5℃
Smoke exhaust velocity: (2.5±0.2)m/s;
Smoke exhaust capacity: (39-85) m ³ /min
The size of the porous refractory material radiation plate is 300mm×450mm, and it can withstand a high temperature of approximately 900℃.
Thermocouple: K-type stainless steel armored thermocouple with a diameter of 3.2mm;
Heat flux distribution requirements: At 200mm: (9.1±0.4) KW/m ²;
At 400mm: (5.0±0.4) KW/m ²;
At 600mm: (2.4±0.2) KW/m ²;
Combustion gas: Propane gas (provided by the user);
Combustion gas flow rate: (0.026 ± 0.002)L/S;
Combustion burner: Outer diameter ￠10mm, inner diameter ￠6mm, with 35 holes ￠0.7mm drilled on the burner tube.
Flame height: Adjustable from 60 to 120mm;
Ignition system: High-voltage electronic ignition;
Powerful exhaust system: This machine is equipped with a powerful exhaust fan. After the test is completed, start the exhaust fan system to expel the waste gas outdoors.
Material of control box/combustion box: Made of high-quality (t=1.2mm)304 stainless steel plate, processed by CNC machine tools, with an elegant and generous arc shape.
Blowtorch: Self-made by our company, made of 304 stainless steel, fully complies with the requirements of the GB/T11785 standard.
Other mechanical parts are made of 304 stainless steel or A3 material with thickened electroplating, which is anti-corrosion and anti-rust.

Power supply voltage: AC220V±10%, 50Hz;
Maximum operating power: 5KW
Combustion chamber dimensions: L1420*W1200*H2300 (mm)
Control box dimensions: Length × width × height (2.2×1.2×2.4) m;
Equipment weight: 350Kg.

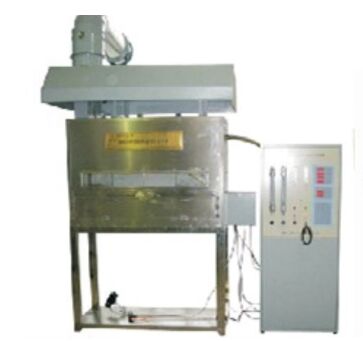

Equipment composition: It is mainly composed of two parts: the combustion box and the control box.

Main technical indicators
The radiation box can be tilted at 30 degrees and is adjustable
The imported heat flow meter measures the thermal radiation flux
The gas flow velocity in the flue is (2.5±0.2) m/s
The water temperature for the experimental cooling water source is 15℃ to 25℃
The radiation fluxes at the nine points of the radiation panel should all meet the corresponding specifications (see the standard requirements).
The exhaust fan is steplessly adjustable

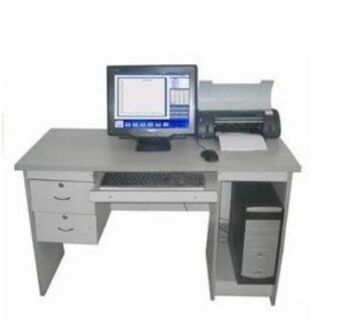

Features: Computer-controlled; "Automatic timing; Data processing record printing;
Timing accuracy: <1s/h;
