Wire Swing Testing Machine Complies With The Relevant Standards Such As UL817

Product Introduction

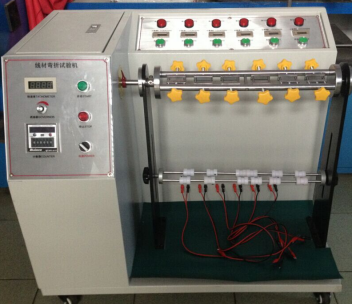

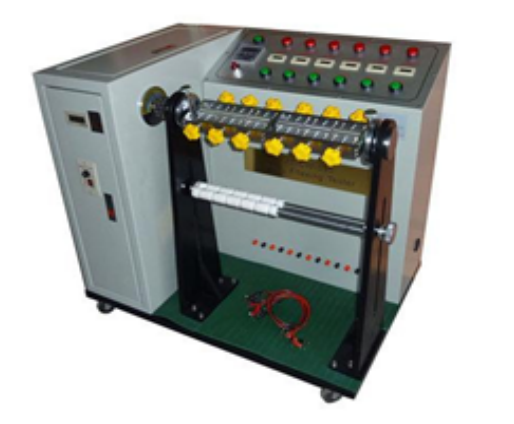

The wire swing testing machine is also known as the wire bending testing machine. This machine complies with the relevant standards such as UL817, "General Safety Requirements for Flexible Wire Components and Power Flexible Wires". It is suitable for relevant manufacturers and quality inspection departments to conduct bending tests on power cords and DC cords. It is used to test the folding endurance and performance of wires, cables and various products under certain speeds, angles, weights, frequencies and other conditions.

Main parameters
Test item: The folding endurance strength of AC plug leads and other Cable wires
2. Fix the sample on the fixture, apply a certain load, and move the fixture left and right during the test. "Jingyi
After setting the number of times, check the disconnection rate. Or when it cannot be powered on, check its total number of swings
. This machine can automatically count. When the test material is bent to the point where it cannot be powered on, the instrument will automatically stop working.
3. Fixtures: 6 sets; Swing Angle: Continuously adjustable from 10 to 180 degrees
4. Swing speed: Adjustable from 10 to 60 c.P.
5. Counters: 6 separate counters /1 total counter
6. Load weights: 50, 100, 200, 300, 500g
Select 6 for each group (a total of 5 groups)
7. Volume: 86*52*82cm
8. Weight: Approximately 130kg
9. Power Supply: 220V, 50/60Hz, 10A
10. Stepless speed regulation
11. The digital tube directly displays the speed
Features of this machine: The speed is input through standard keys and displayed digitally, making operation convenient!
