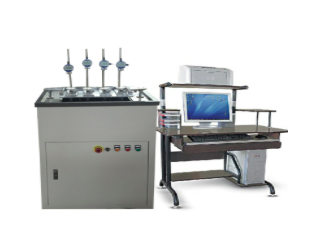

Hot deformation Vicat temperature tester (four channel computer type)

Hot deformation Vicat temperature tester
The hot deformation Vicat temperature tester is suitable for testing the Vicat softening point temperature and hot deformation temperature of polymer materials,
As an indicator for controlling quality and identifying the thermal performance of new varieties, deformation is measured by deformation sensors and temperature is controlled
Set the heating rate of the instrument, and the sample holder will automatically rise and fall. Four samples can be tested at once. Controlled by PC for experimental operation
The entire process was carried out using  graphical software
Component interface, flexible data processing methods, modular VB programming approach, and perfect user reporting.
Novel design, beautiful appearance, and high reliability. Complies with GB/T 1633 "Softening Temperature of Thermoplastic (VST)
GB/T 1634 "Test Method for Thermal Deformation Temperature of Plastic under Bending Load", GB 8802 "Hardness
Method for determination of Vicat softening temperature of polyvinyl chloride (PVC-U) pipes and fittings "and ISO75, ISO306
ISO 2507 and other standard requirements.
Technical Specifications:
1. Temperature range: Room temperature -350 ℃
2. Heating rate: (12 ± 1) ℃/6min [(120 ± 10) ℃/h]
(5 ± 0.5)℃/6min[(50 ± 5)℃/h]
3. Temperature error: ± 0.1 ℃
4. Deformation measurement range: 0mm -1mm
5. Deformation measurement error: 0.01mm
6. Heating medium: Methyl silicone oil
7. Heating power: 4KW
8. Cooling method: Natural cooling above 150 ℃
Water cooling or natural cooling below 150 ℃
9. Power supply: AC220V 20A 50Hz
10. Dimensions: 720mm × 700mm × 1380mm
11. Net weight: 180kg
12. Report content: Print relevant parameters and temperature deformation curves.
