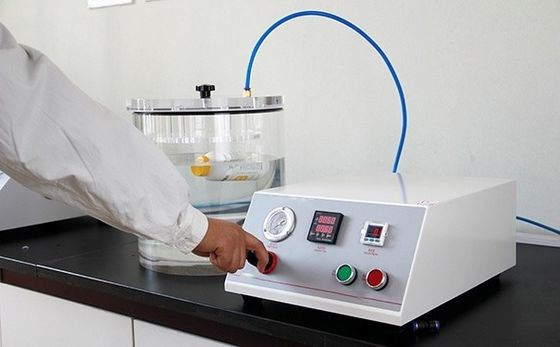

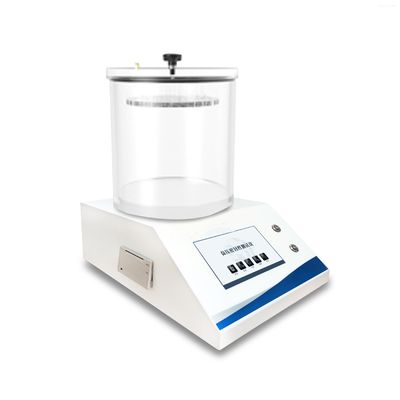

Leak Testing Machine, Suitable for the Sealing test of Packaging Bags, Bottles, Tubes, Cans, Boxes, Etc.
Product use:
|
It is suitable for the sealing test of packaging bags, bottles, tubes, cans, boxes, etc. in food, pharmaceutical, medical
equipment, daily cosmetics, automobiles, electronic components, stationery and other industries. It can also be used to test the sealing performance of the specimen after the drop and pressure test |
Test Principle:
|
By vacuuming the vacuum chamber, the internal and external pressure difference of the sample immersed in water is generated, and the gas escape in the sample is observed, so as to determine the sealing performance of the sample; By vacuuming the vacuum chamber, the internal and external pressure difference of the sample is generated, and the shape of the sample is restored after the expansion of the sample and the release of the vacuum, so as to determine the sealing performance of the sample.
|
Features:
|
1. LED digital control, experimental process automation
2. Pressure setting and holding time 3. PVC operation panel, film buttons, more convenient operation 4. High quality thickened plexiglass sealed barrel with wall thickness of 15mm 5. Digital preset test vacuum degree and vacuum holding time 6. Precision pneumatic components, superior sealing performance 7. Automatic constant pressure air supply, no need for manual operation |
Technical Parameters:
|
1. True space: -90~0kPa
2. Accuracy: grade 1 3. Effective size of vacuum chamber: Φ270mm×270 mm (H) (standard) Note: Other sizes can be customized. 4. Air pressure: 0.7MPa (air source provided by user) 5. Air source interface: Φ8 polyurethane pipe 6. Dimensions: 460mm(L)×360mm(B)×530mm(H) 7. Power supply: AC 220V 50Hz 8. Net weight: 15kg Standard configuration: main machine, experimental sealed barrel, air source line According to standards: GB/T 15171, ASTM D3078 |
