Digital Display Cantilever Beam Impact Testing Machine For Quality Inspection Of Research

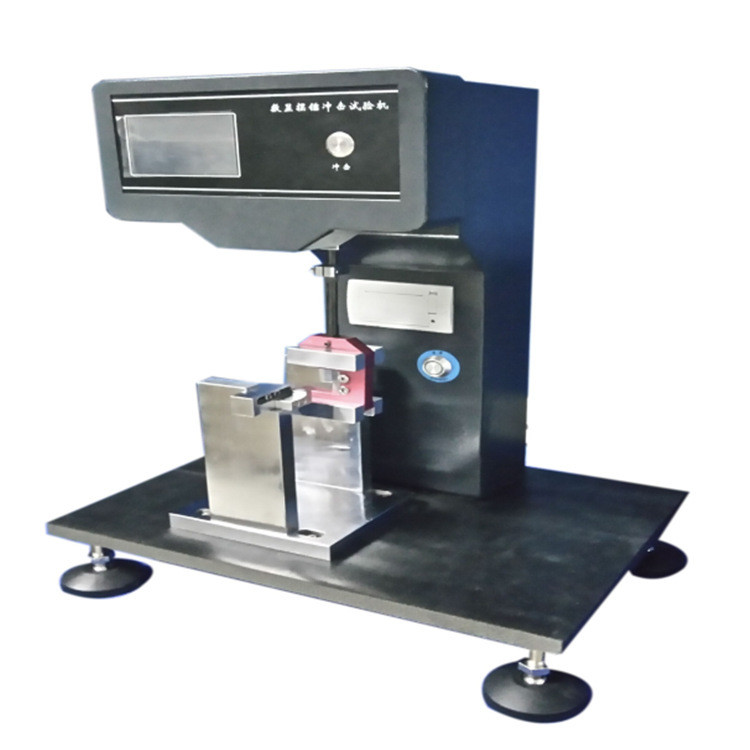

Digital display cantilever beam impact testing machine

The machine conforms to the international standard ISO180-1992 "Determination of Impact Strength of Cantilever Beams of Plastic-Hard Materials"; The national standard GB/T1843-1996 "Impact Test Method for Rigid Plastic Cantilever Beams" and the mechanical industry standard JB/T8761-1998 "Plastic Cantilever Impact Testing Machine".

The cantilever beam impact testing machine is used to determine the impact toughness of non-metallic materials such as plastics, reinforced nylon, fiberglass, ceramics, cast stones, plastic appliances, and insulating materials. It is a common equipment for quality inspection of research and development institution, colleges and universities, and non-metallic material manufacturers, and the machine is an instrument with simple structure, convenient operation and high test accuracy. The machine meets the requirements of ISO179---92, GB1043 –93 standards. The electronic impact testing machine adopts the angle measurement technology of circular grating, which has the characteristics of high precision, good stability and large measurement range, digital measurement of impact strength, pre-elevation angle, lift angle, and average value, automatic correction of energy loss, printing test report and other functions.

Technical Specifications:

  1. Impact speed: 3.5m/s

  2. Pendulum energy: 1J, 2.75J, 5.5J

  3. Pendulum lifting angle: 150

  4. The distance from the center of the pendulum to the impact blade: 335mm

  5. The distance from the impact blade to the upper plane of the jaw: 22mm

  6. Radius of blade fillet: R=0.8mm

  7. The sample type conforms to GB1843-80 and ISO180-8

  8. Standard configuration

  Category  Name     Quantity

  Mainframe Impact testing machine  1

  Attachment box  1J impact pendulum  1

                           2.75J impact weight  1

                          5.5J impact weights  1

                         Align the template  1

                         Mover              1

Our company exclusively uses new materials to make swing arms, which are higher in strength than steel and lighter in weight than aluminum

Other energy 11J and 22J need to be selected
