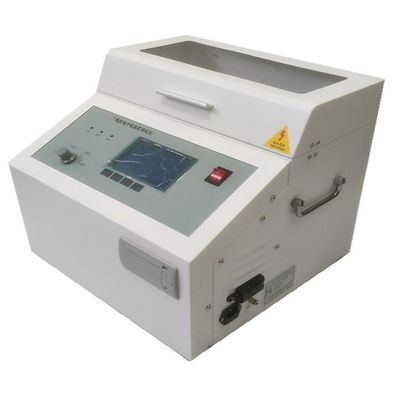

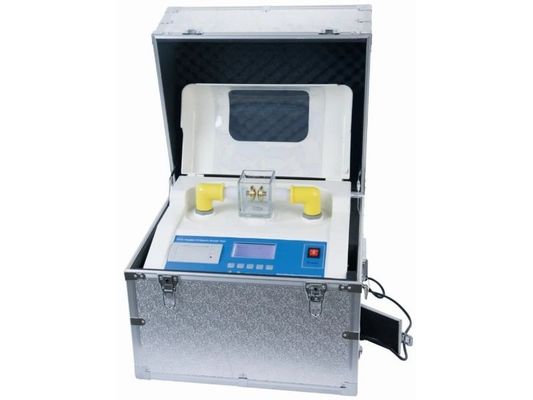

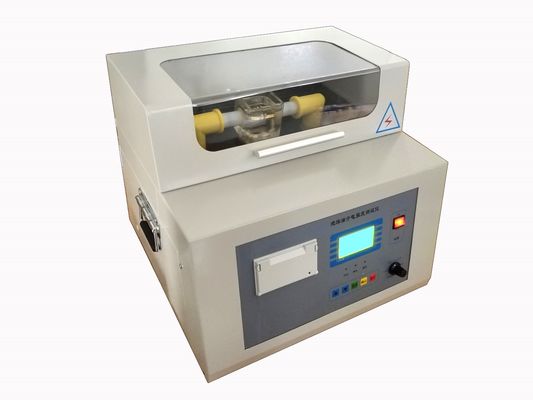

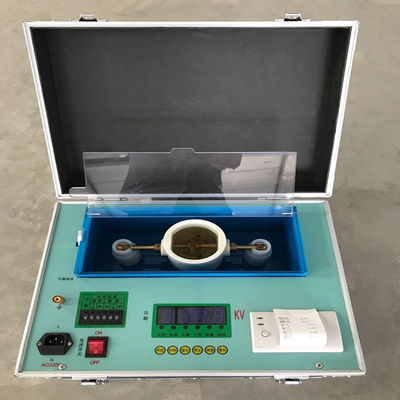

Insulating Oil Dielectric Strength Testing Machine, for Voltage Breakdown and Electrical Strength Tests of High Insulating Oil
Product features:
|
1. This instrument is equipped with an automatic detection function, such as automatically entering the reset state when the
machine is turned on to execute the voltage regulator back to zero; 2. A micro panel printer is used to automatically or manually print out the test results; 3. According to the user's needs, the number of tests, stirring and standing time, and the voice-controlled light control can be changed to remind continuous printing and non-printing; 4. This instrument adopts automatic magnon stirring to eliminate the unevenness and bubbles of oil samples; |
Standard:
|
The insulating oil dielectric strength tester is designed according to the requirements of international IEC-156 and national
standard GB507-86<>, DL/T846.7-2004, IS6792/BS5874, ASTMD1816, ASTMD877, ASTMD1816 and other standards, |
Application:
|
It is used for voltage breakdown and electrical strength tests of high insulating oil, insulating silicone oil and fluid-like
insulating medium, and is used to evaluate the electrical properties of insulating materials. |
Technical Parameters:
|
Power supply: AC380V ±10%, 50HZ ±5%
Rest time: 0-10 minutes and 39 seconds Measuring range: AC 0-80KV Conditions of use: Ambient temperature 5°C-40°C Current limit: 50mA Relative humidity: 1. ≤75% non-condensing Measurement accuracy: 1% Oil cup clearance: 2.5mm (diameter of oil cup feeler gauge) Voltage regulation speed: 2KV/S±10% 0.5~5kv/s (adjustable) Volume: 415×315×315mm Scheduled settings: 1-10 times Weight: 28kg Stirring time: 0-1 minute 39 seconds |
