Features

Specifications

Warranty: 1 Year

Model Number: CF9302

Power: Electronic

Standard: GB/T 1409-2006, IEC 60250, JB 7770

Ambient Temperatur: (0~+40)°C

Relative Humidity: RH<80%

Q Value Measurement Range: 5~999

Inductance Measurement Range: 0.1μH~1H In Seven Ranges

Capacitance Measurement Range: 1PF~460PF

Highlight:

1MHz dielectric constant tester

1MHz Dielectric Constant Measurement Equipment

High Frequencies dielectric constant tester

Basic Infomation

Place of Origin: China

Brand Name: CHENGFENG

Certification: ISO,CE

Payment & Shipping Terms

Packaging Details: Wooden cases

Delivery Time: 10 Work Days

Payment Terms: T/T,Cash,L/C,Western Union,MoneyGram

Supply Ability: 5 units per month

Gallery

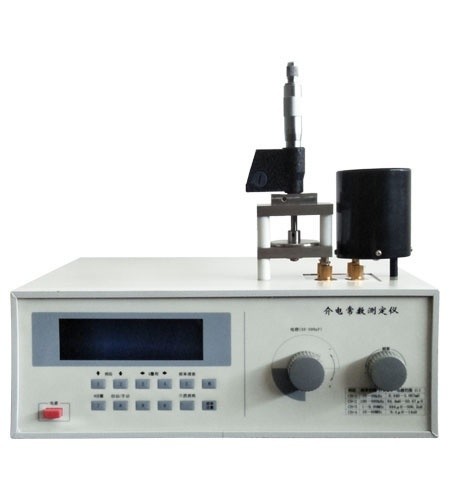

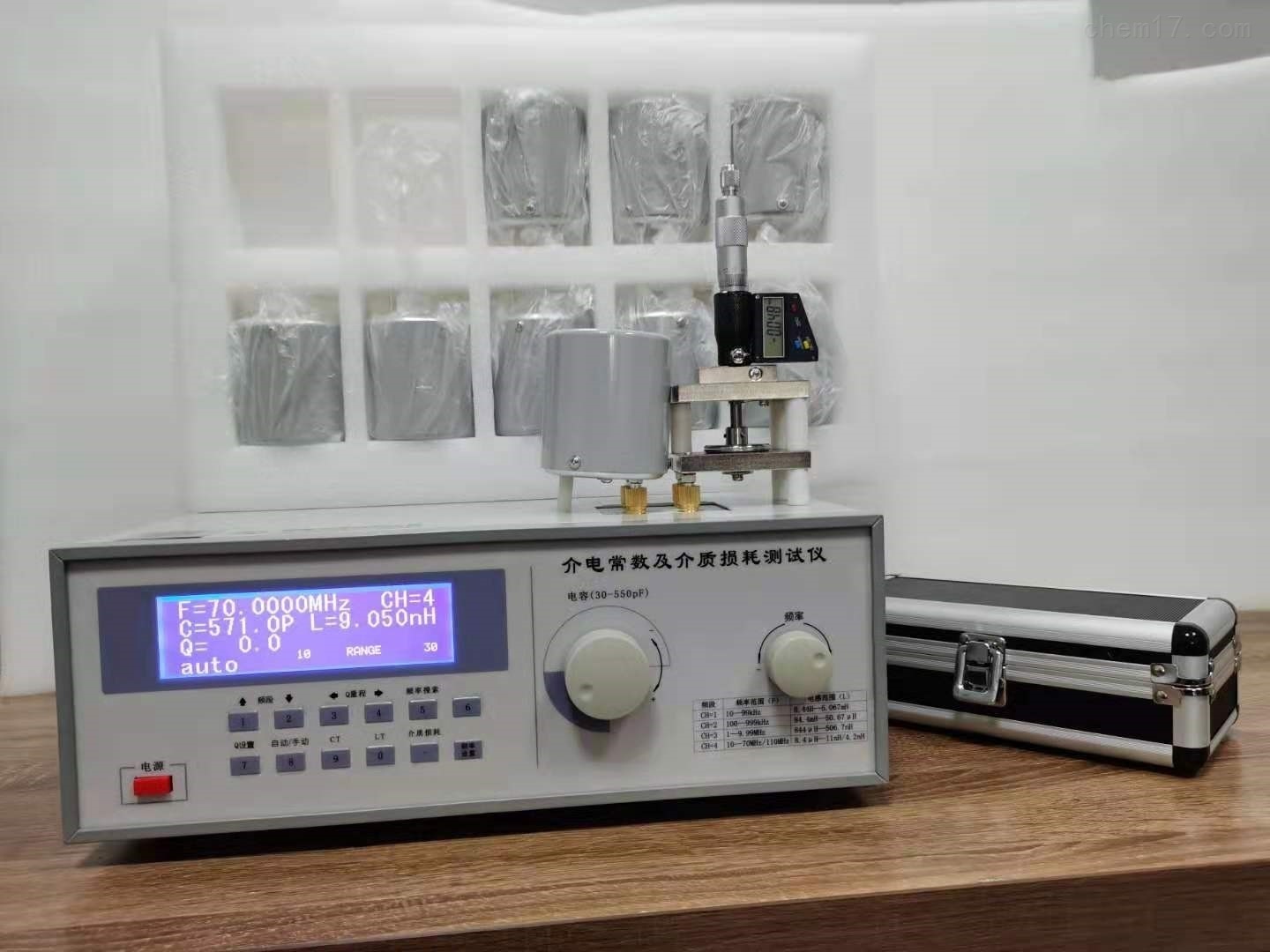

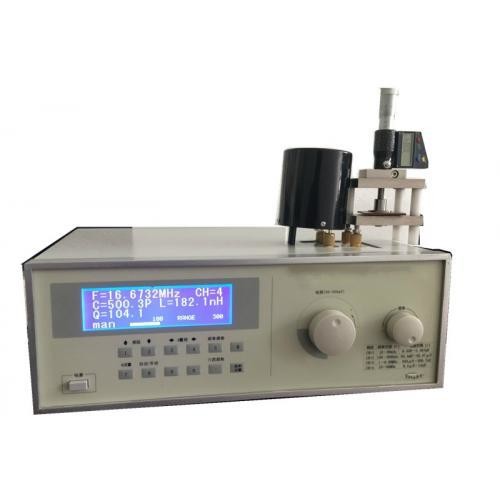

High Frequencies 1MHz Dielectric Constant Measurement Equipment For Insulating Materials

Product Description

Dielectric Constant Testing Equipment, Suitable for Testing Insulating Materials at High Frequencies (1MHz)

Specification

Product name:	CF9302 Dielectric Constant Testing Equipment
Instrument Introduction:	It is designed and manufactured in accordance with GB/T 1409-2006 "Test Method for Measuring Permittivity and Dielectric Dissipation Factor of Electrical Insulating Materials at Power Frequency, Audio, High Frequency (Including Meter Wave Wavelength)" (equivalent to IEC 60250), and conforms to JB 7770 and other test methods.
Application:	It is suitable for testing insulating materials at high frequencies (1MHz).
Technical Parameters:	1 Q value measurement range: 5~999 Q-range binning: 30, 100, 300, 999, automatic shift or manual shift Error: 25kHz~10MHz ≤5%±2% of full value 10MHz~50MHz ≤7%±2% of full value 2. Inductance measurement range: 0.1μH~1H in seven ranges 3. Capacitance measurement range: 1PF~460PF Main capacitance adjustment range: 40PF~500 PF Accuracy: 150PF or less±1.5PF 150PF or more±1% Trimmer capacitance adjustment range: -3PF~0PF~+3PF Accuracy: ±0.2PF 4. Frequency coverage: 25 kHz~50MHz in seven segments Indication error: 2×10-4±2 words 5. Power supply: 220V± 22V 50Hz± 2.5Hz 25W 6. Ambient temperature: (0~+40)°C 7 Relative humidity: RH<80% 8. Dimensions: 380mm× 132mm×280mm 9 Weight: about 7kg

Company Profile

Customer Photos

1. Unique selling point: 12 years of professional research and development, only solving problems for customers. 2. Professional team: A technical research and development team with 12 years of experience, leading in professional knowledge and practical skills. 3. Quality assurance: The company strictly controls quality standards, meets customer standard requirements, and exceeds customer expectations. 4. Innovation ability: Develop products that meet customer needs, and years of experience make product development forward-looking and leading. 5. Competitive advantages: reliable quality, flexible and applicable equipment performance, reasonable equipment prices, high delivery speed, and guaranteed customer after-sales service. 6. Provide customized solutions for customers: fully understand customer needs, provide personalized solutions, and completely solve customer problems. 7. Reliability and credibility: The company operates steadily for a long time, winning the long-term trust of customers and solving their concerns.

Packing & Delivery

FAQ

Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?
A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
