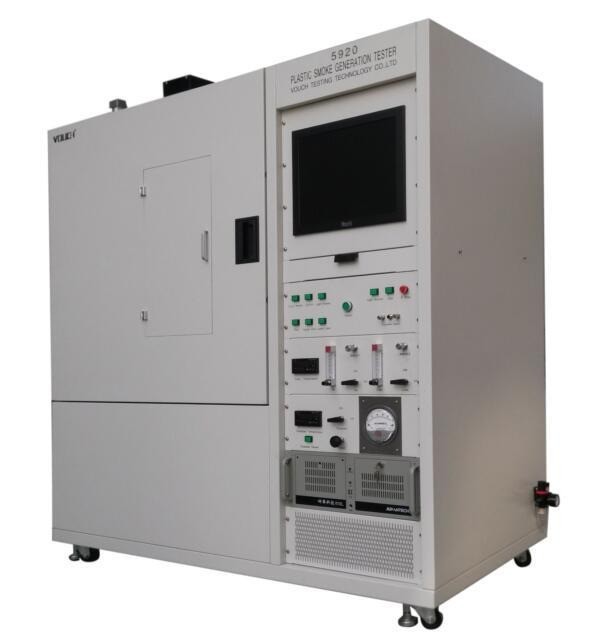

CF8368 Plastic Smoke Density Tester Machine AC200V-240V 50Hz

Scope of application: Suitable for measuring the specific optical density of smoke generated during plastic combustion, and taking the maximum specific optical density as the test result. It is used to evaluate the smoking performance of plastics under specified conditions.

The plastic smoke density tester is a new type of testing equipment developed based on the technical conditions specified in the standard GB/8323.2-2008 and ISO5659-2 "Plastic smoke generation - Part 2: Single chamber method for measuring smoke density".

Main parameters: The entire instrument consists of a closed test chamber, a photometer measurement system, a radiation cone, a combustion system, an igniter, a test box, a bracket, a temperature measuring instrument, and smoke density testing software; The circuit is developed using a microcontroller, with high technical content and stable performance. This instrument is suitable for all plastics and can also be used for the evaluation of other materials (such as rubber, textile coverings, painted surfaces, wood, and other materials). It is widely used in production factories and research and testing units in the plastic and solid materials industries.
