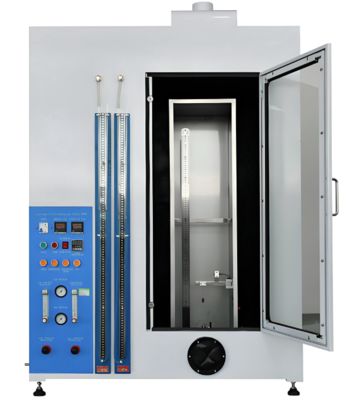

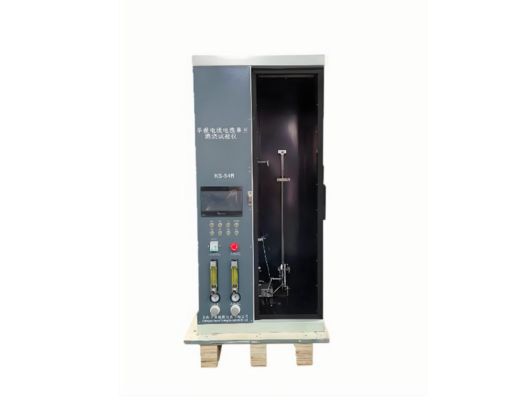

The inspection machine uses a Bunsen burner of specified size and a specific gas source (propane). The test sample in a vertical position is ignited at a certain flame height and a certain burning Angle at regular intervals. The flammability and fire hazard of the test sample are evaluated based on the duration of ignition, burning and burning length of the test sample. The operation is simple and the measured values are accurate.
Complies with GB/T18380.11-2008/lEC60332-1-1, GB/T18380.12-2008/lEC60332-1-2, GB/T18380.13-2008/1EC60332-1-3.
The safety test items for the combustion performance of simulated single wires and cables as stipulated in standards such as GB/T18380.21-2008/1EC60332-2-1,GB/T18380.22-2008/lEC60332-2-2,GB/ T5169.14-2007, and JBT 4278.5-2011.
Burner: 12mm±0.5mm, approximately 100mm in length
Test inclination Angle: 45°
Flame height: Adjustable from 20mm±2mm to 175mm+1mm
Ignition time: Adjustable from 0 to 999.9s±0.1s
Burning duration: 0-999.9S±0.1s
Combustion gas: 98% propane gas
Flow and pressure: Equipped with dual flow gauges and pressure gauges
Temperature test range: 0 to 1000℃
Thermocouple: 0.5mm armored (Type K) thermocouple
Test background: Black background
Test process: The test program is automatically controlled without an exhaust fan
Reference standards: GB/T18380.11~13-2008/1EC60332-1-1~3, GB/T18380.21~22-2008/1EC60332-2-1~2, JBT 4278.5-2011, GBT5169.14-2007
Studio dimensions: 300mm wide ×450mm deep ×1250mm high 15. External dimensions of the equipment: 700mm wide ×450mm deep ×1500mm high
