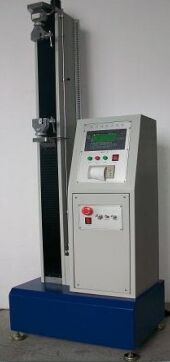

1KN Tensile Testing Machine Is Suitable For Conducting Various Tests Such As Tensile, Compressive, Bending, Shearing, Peeling (90 Degrees And 180 Degrees

Product Introduction
This machine is suitable for conducting various tests such as tensile, compressive, bending, shearing, peeling (90 degrees and 180 degrees), and tearing on materials and products in industries like textiles, rubber, plastics, synthetic leather, tapes, adhesive products, plastic films, composite materials, electronics, and metals, to determine the quality of the products.
This machine is a simple tensile testing machine with a simple structure and convenient operation. It can be placed on a workbench for testing. It adopts an electronic control system. The speed-regulating motor is controlled to rotate through a speed regulator, and then the speed is reduced by a variable-speed mechanical mechanism. This drives the T-screw to move the load sensor up and down, thereby completing the tensile or compressive test of the specimen. The force value is output by the sensor and fed back to the display. The test displacement is displayed in real time.
It can store the results of 10 test reference points, automatically calculate their average value, automatically capture the maximum value, and the force value at the time of fracture.
The machine is equipped with a thermal printer and can automatically output the test results. (Optional
This machine is characterized by its simple and convenient operation, and is particularly suitable as a detection instrument for controlling product quality on production lines. This series of models is mainly suitable for the testing of non-metallic and metallic materials with a test load of less than 2000N.
Machine dimensions and parameters
Test load: 1KN

2. Power supply voltage (V) : 220±20%

3. Maximum current: 5A

4. Power: 1.5KW

Capacity options: 2,5,10,20,50,100,200 kg
The force measurement accuracy is within ± 0.5% of the indicated value
The display mode is a liquid crystal screen with Chinese display and film touch keys
Switch units to Kg, lb, and N
The data sampling frequency is 200times/sec
The maximum load resolution of the testing machine is 1/± 25,000 codes, with no distinction between internal and external gears, and the resolution remains constant throughout the entire process
Basic configuration of load sensors: Tension and compression sensors (for maximum load)
The effective test width is 150mm
Effective stretching space: 650mm/800mm/1000mm
The test speed range is 50-300mm/min with stepless speed regulation and 5 fixed speeds (special test speeds can also be customized according to customer requirements).
The displacement measurement accuracy is within ± 0.5% of the indicated value
The breakpoint ratio is set from 0 to 99%. Users can set the appropriate fracture downtime according to different materials
Test bench safety device, upper and lower travel limit device
Overload protection: When the load exceeds the maximum by 10%, the machine will automatically protect itself
The fixture configuration includes a set of tensile fixtures
The main unit measures 450×500×1400mm
The main unit weighs approximately 60 kilograms
Power supply: 220V/50Hz

Power supply equipment and precautions
1. Power Supply :AC1￠3W 220V 50HZ ※ Voltage fluctuation allowable value: ±10% of the rated voltage
2. Maximum load capacity: 1.5KVA
3. Maximum operating current: 10A
Performance guarantee: Ambient temperature range :+5℃ to +55℃ (excluding the minimum achievable temperature, maximum thermal load capacity and cooling time)
