Electronic voltage breakdown testing machine

1 Set
MOQ
Negotiate
Price

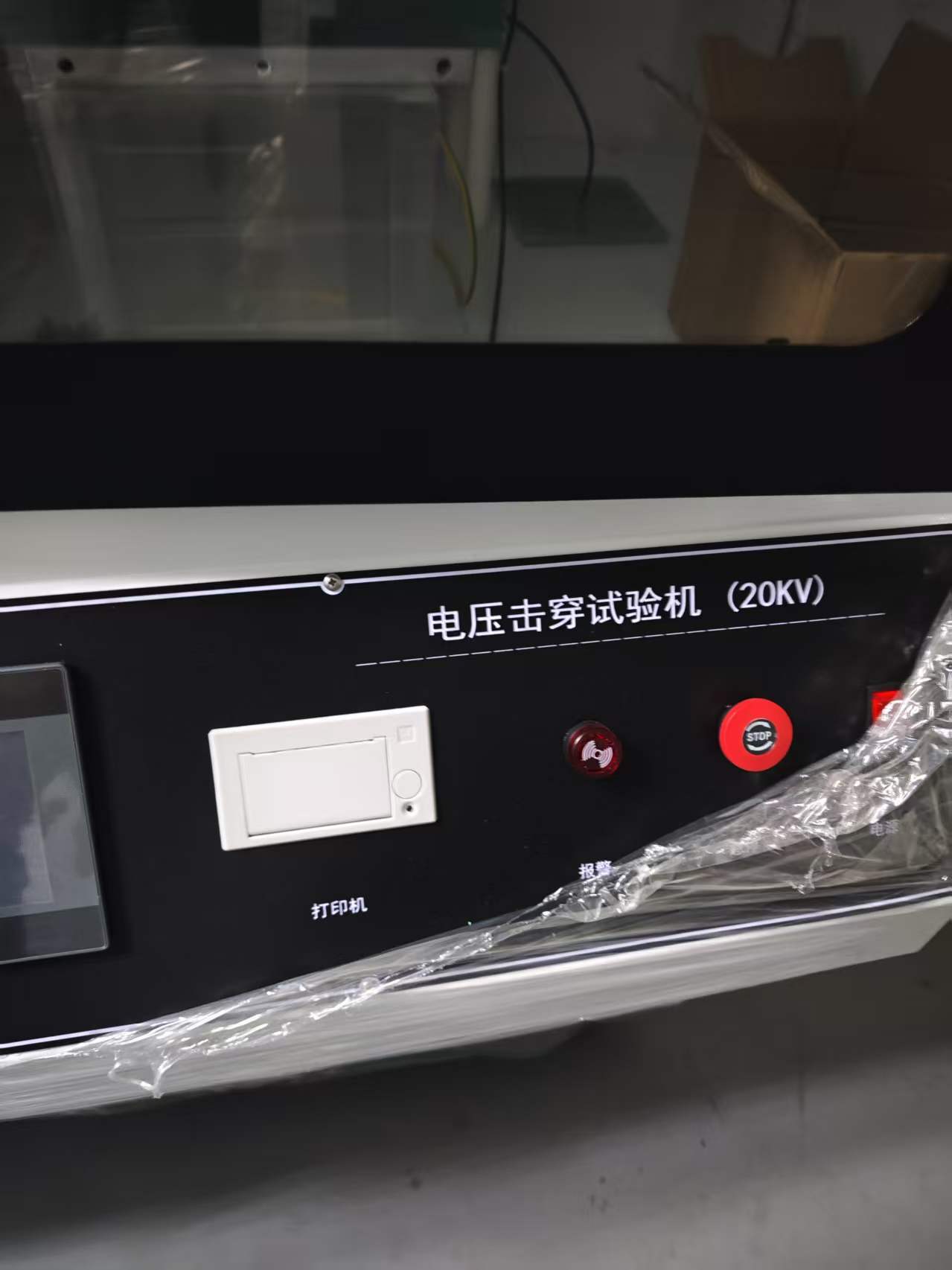

Electronic voltage breakdown testing machine
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Place Of Origin: Guangdong, China
Transformer Capacity: 10 KVA
Breakdown Voltage: 0~50kV
Test Voltage: AC 0~50 KV Continuously Adjustable DC 0~50 KV Continuously Adjustable
Boost Speed Regulation: For Electrical Automatic Speed Regulation
Voltage Measurement Accuracy: ≤ 2%
Test Method: DC Test, AC Test
Boosting Method: Automatic Program-controlled Voltage Boost
Frequency Of Power Supply: 50Hz Sine Wave
Source: 220V 50Hz
Highlight:

electronic voltage breakdown tester

,

cable testing equipment with warranty

,

high voltage breakdown testing machine
Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: GB/T ,HG/T
Model Number: 1030
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T,Cash,L/C, Western Union, MoneyGram
Supply Ability: 5 units per month
Product Description



Electronic voltage breakdown testing machine



Technical Parameter :



Test voltage: AC 0~50 kV continuously adjustable DC 0~50 kV continuously adjustable
Transformer capacity: 10 KVA
Breakdown voltage: 0~50kV
Boosting speed: divided into 6 gears: 50, 100, 200, 500, 1000, 2000 (V/S)
Boost speed regulation: for electrical automatic speed regulation
Voltage measurement accuracy: ≤ 2%
Leakage current selection: 1-20 mA
Test methods: DC test, AC test
Boosting method: automatic programmable boosting
Power frequency: 50Hz sine wave
Power supply: 220V 50Hz
Programmable settings and ladder testing
Includes software, not computer
USB-C to USB-A adapter: 1 piece





Standard accessories:
Test host: 1 unit
Test electrodes: 2 sets (GB/T 1408.1)
Test oil tank: 1 unit
Discharge system: 1 set
Software: 1 set of plugs with European style plugs
