DX8315A 45 Degrees Celsius UV Weathering Chamber 300x300mm Specimen Laminated Glass Aging Tester

1 Set
MOQ
USD 5000-15000 / Set
Price
DX8315A 45 Degrees Celsius UV Weathering Chamber 300x300mm Specimen Laminated Glass Aging Tester
Features Gallery Product Description Chat Now
Features
Specifications
Work Box Size: 1100mm × 1100mm × 1000mm
Test Size: 300 × 300mm
Test Quantity: 9pcs
Temperature Control Range: 45℃ ± 5℃
Light Source: OSRAM Ultra Vitalux 300W
Number Of UV Lamps: 16
Radiation Intensity: 900W/m² ± 100 W/m²
Sample To Light Source Distance: > 500mm
Testing Time: 2000h
Interference Sound: ≤ 75db
Fan Power: ≤ 25W × 4
Compressor Power: 2.5HP
Installation Power: 9KW
Power Supply: AC380V/50HZ, Three-Phase 5-Wire System
Standard: EEN ISO 12543-4-2011
Application: UV Aging Test For Laminated Glass
Highlight:

45 degrees Celsius UV weathering chamber

,

300x300mm laminated glass aging tester

,

environmental test chamber with warranty
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Ecer
Certification: ISO 9001:2015, CE, EEN ISO 12543-4-2011
Model Number: DX8315A
Payment & Shipping Terms
Packaging Details: Export-grade plywood case with shock-proof foam insert, vacuum-packed UV lamps
Delivery Time: 15-30 working days after order confirmation
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 Sets per Month
Product Description

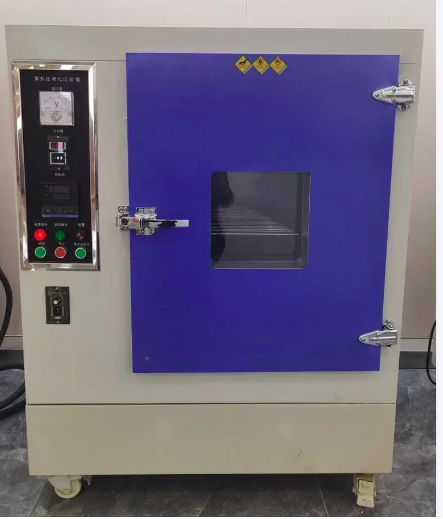

DX8315A Precision Temperature UV Weathering Chamber

The DX8315A UV Weathering Chamber features advanced temperature regulation maintaining 45℃ ± 5℃ precisely on the sample surface, critical for reproducible laminated glass aging tests. Each of the 9 specimen positions accommodates 300 * 300mm samples, with consistent temperature distribution across the entire work area.

Key Features

  • ✅ Precision temperature control: 45℃ ± 5℃ on specimen surface
  • ✅ Specimen size: 300 * 300mm (9 positions)
  • ✅ 16 * OSRAM Ultra Vitalux 300W UV lamps
  • ✅ 900W/m² ± 100 W/m² radiation intensity
  • ✅ 1100mm * 1100mm * 1000mm work box
  • ✅ 2000h continuous operation
  • ✅ 2.5HP compressor for stable thermal management
  • ✅ EEN ISO 12543-4-2011 certified

Application

Optimized for precision UV aging of laminated glass where temperature consistency is critical. Suitable for quality assurance in architectural glass, automotive windshield production, and materials research laboratories.
