Home /Products/Environmental Test Chamber/DX8315A Laboratory UV Aging Chamber 5 Wire System 9KW Power Laminated Glass Weathering Tester

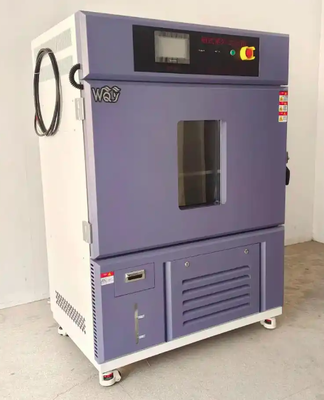

DX8315A Laboratory UV Aging Chamber 5 Wire System 9KW Power Laminated Glass Weathering Tester

1 Set
MOQ
USD 5000-15000 / Set
Price
DX8315A Laboratory UV Aging Chamber 5 Wire System 9KW Power Laminated Glass Weathering Tester
Features Gallery Product Description Chat Now
Features
Specifications
Work Box Size: 1100mm × 1100mm × 1000mm
Test Size: 300 × 300mm
Test Quantity: 9pcs
Temperature Control Range: 45℃ ± 5℃
Light Source: OSRAM Ultra Vitalux 300W
Number Of UV Lamps: 16
Radiation Intensity: 900W/m² ± 100 W/m²
Sample To Light Source Distance: > 500mm
Testing Time: 2000h
Interference Sound: ≤ 75db
Fan Power: ≤ 25W × 4
Compressor Power: 2.5HP
Installation Power: 9KW
Power Supply: AC380V/50HZ, Three-Phase 5-Wire System
Standard: EEN ISO 12543-4-2011
Application: UV Aging Test For Laminated Glass
Highlight:

Laboratory UV Aging Chamber

,

5 Wire System Weathering Tester

,

Laminated Glass UV Tester
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Ecer
Certification: ISO 9001:2015, CE, EEN ISO 12543-4-2011
Model Number: DX8315A
Payment & Shipping Terms
Packaging Details: Export-grade plywood case with shock-proof foam insert, vacuum-packed UV lamps
Delivery Time: 15-30 working days after order confirmation
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50 Sets per Month
Product Description

DX8315A Laboratory-Grade UV Aging Chamber — 5-Wire 9KW

The DX8315A Laboratory UV Aging Chamber is built on a robust AC380V/50HZ three-phase 5-wire electrical system delivering 9KW of stable power. This professional laboratory configuration ensures reliable operation for demanding laminated glass weathering protocols in testing and certification environments.

Key Features

  • ✅ AC380V/50HZ three-phase 5-wire system
  • ✅ 9KW installation power capacity
  • ✅ 16 * OSRAM Ultra Vitalux 300W UV lamps
  • ✅ 900W/m² ± 100 W/m² radiation intensity
  • ✅ 45℃ ± 5℃ precision temperature control
  • ✅ 1100mm * 1100mm * 1000mm work box
  • ✅ 2000h continuous testing
  • ✅ EEN ISO 12543-4-2011 compliant

Application

Engineered for professional laboratory laminated glass UV aging in third-party testing facilities, university research centers, and corporate QA laboratories where reliable power infrastructure and standardized test protocols are essential.

Tag:

environmental test equipment

uv irradiation test machine

uv aging test chamber
