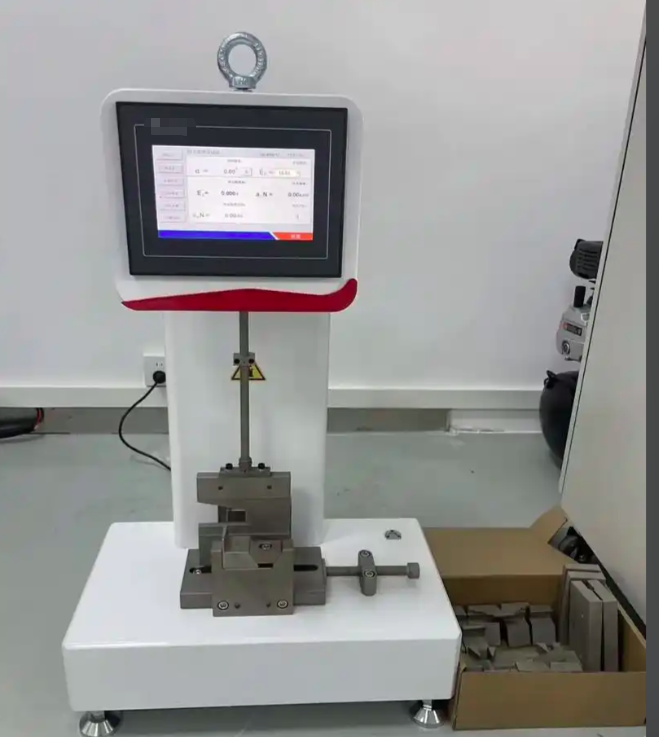

simply supported beam impact testing machine

Product details of simply supported beam impact testing machine
The simply supported beam impact testing machine is mainly used for measuring the impact toughness of non-metallic materials such as hard plastic sheets, pipes, profiles, reinforced nylon, fiberglass, ceramics, cast stones, and electrical insulation materials. Meets the requirements of GB/T1043 "Impact Test Method for Rigid Plastic Simply Supported Beams" and ISO179, ISO9854-1, DIN8078, DIN53453, etc. It has the characteristics of stable and reliable performance, high accuracy, and easy use. It can directly calculate impact energy, save 60 historical data, convert 6 units, display on two screens, and can display practical angles and peak angles or energy. It is an ideal testing equipment for chemical industry, scientific research units, colleges and universities, quality inspection departments, and professional manufacturer laboratories.
Technical Specifications:
1. Impact speed: 3.8m/s
2. Impact energy: 7.5J 15.0J 25.0J 50.0J
3. Pre swing angle of pendulum: 150 °
4. Strike center distance: 395mm
5. Impact swing moment: T7.5=4.01924Nm T15=8.03848Nm
T25=13.39746Nm T50=26.79492Nm
6. Jaw spacing: 60mm 70mm 62mm 95mm
7. Impact blade fillet: R2mm ± 0.5mm
8. Angle measurement accuracy: 0.2 degrees
9. Energy Calculation:
Classification: 4 levels
Method: Energy E=Potential Energy - Loss
Accuracy: 0.05% of the displayed value
10. Energy units: J, kgmm, kgcm, kgm, lbft, lbin are interchangeable
11. Temperature: -10 ℃ to 40 ℃
12. Power supply: AC220V 50Hz
