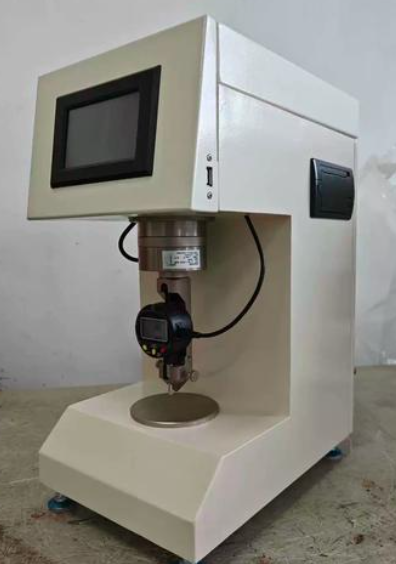

Plastic ball indentation hardness tester

The plastic ball indentation hardness tester is designed and manufactured according to GB3398-82 and DIN53-456 standards, and meets the requirements of ISO2039 standard. It can be used to determine the hardness of automotive engineering plastics ABS and other plastics used in various industries. This instrument measures the ability of polymer materials to resist being pressed in by another rigid object that is considered to have no elastic deformation. This machine is controlled by a microprocessor and has advantages such as integration and digitization. It is a new type of intelligent instrument. The instrument's LCD Chinese display can automatically load and has multiple functions such as automatic timing and digital displacement detection.
1, Main technical parameters and their accuracy
1. The test load is divided into six levels: 9.8N (preloading), 49N, 132N, 358N, 612N, 961N
2. Steel ball indenter: Φ 5mm, Φ 10mm
3. Indentation depth indication division value: 0.001mm
4. Allowable height of sample: 30mm
5. Distance from head to machine wall: 100mm
6. Indication accuracy: ± 4%
7. Timing range: 10~90s, timing accuracy ± 0.5%
8. Effective measurement range: 0.150~0.350mm
9. Rack deformation: ≤ 0.05mm
2, Main configuration and accessories
1. One host
2. One printer
3. Load one motor
4. One set of transmission system
5. One Chinese LCD touch screen
6. One high-precision force sensor
7. One high-precision digital deformation meter
8. One 5mm indenter
9. One 10mm indenter
10. One set of control software
11. One power cord
12. One set of random files
3, Volume length x width x height 350 x 400 x 700
4, Weight 50KG
