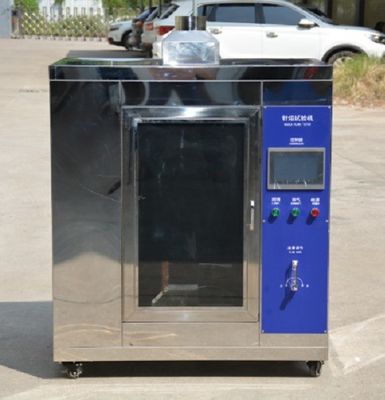

Needle flame tester for testing the flame retardant performance of electronic components

The needle flame tester is suitable for testing the flame retardant performance of electronic components, electrical devices, mechanical parts, injection molded parts and other electrical products. This machine simulates the small flame generated inside the product under fault conditions, and uses simulation technology to evaluate the fire hazard.

Needle height: more than 35mm (inner diameter 0.5, outer diameter 0.9);

The gas volume can be adjusted (flow meter);

 Dimensions: 1100X1150X550mm (internal volume greater than 0.5 cubic meters,

Thermocouple: 0.5 armored nickel-chromium/nickel-aluminum wire, K indexing, imported from the United Kingdom, insulated to the ground;

One adapter plate, five pieces of silk paper, and one pine board

This machine conforms to IEC60695-2-2 (2004), GB5169.5-2008, GB4706.1 and other test standards.

Working voltage: AC220V, 50Hz;

Flame application time: adjustable (0~999.9S);

Burning time: 0~999.9S, automatic recording, random pause;

Flame height: 12±1mm adjustable;

Flame temperature measurement: from 100°C±5°C to 700°C±3°C the time is 23.5S±1S, temperature display: 0-1000°C±0.5°C;

Gas source type: butane (user-supplied);

Flame application angle: 0~45° adjustable;
