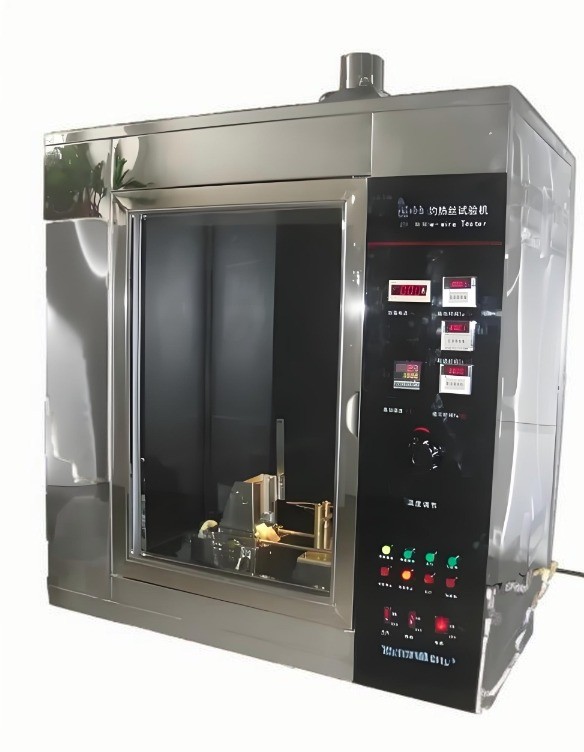

Hot Wire Testing Machine test the Stability of Electronic and Electrical Products During Operation
item
|
value
|
Customized support
|
OEM, ODM, OBM, Software reengineering
|
Place of Origin
|
China
|
|
Guangdong
|
Warranty
|
1 Year
|
Brand Name
|
CHENGFENG
|
Model Number
|
CF8383
|
Heating current
|
the current is between 120~150A(960℃)
|
Temperature measuring device:
|
0.5mm armored fine wire thermocouple
|
Test chamber volume
|
0.5M³, D60x W95xH 90cm
|
Glowing wire
|
A 4.0mm diameter ring is made of nickel/chromium wire
|
Boundary dimensions
|
D61x W120x H105cm
|
Standard
|
IEC60695-2-10:2000,GB2099,VDE 0620
|
Outer box material
|
Mirror stainless steel
|
Gas source
|
Butane gas (provided by the user).
|
Flame height
|
The test flame height is 12mm
|
Test sample movement speed
|
10mm/s~25mm/s.
|
