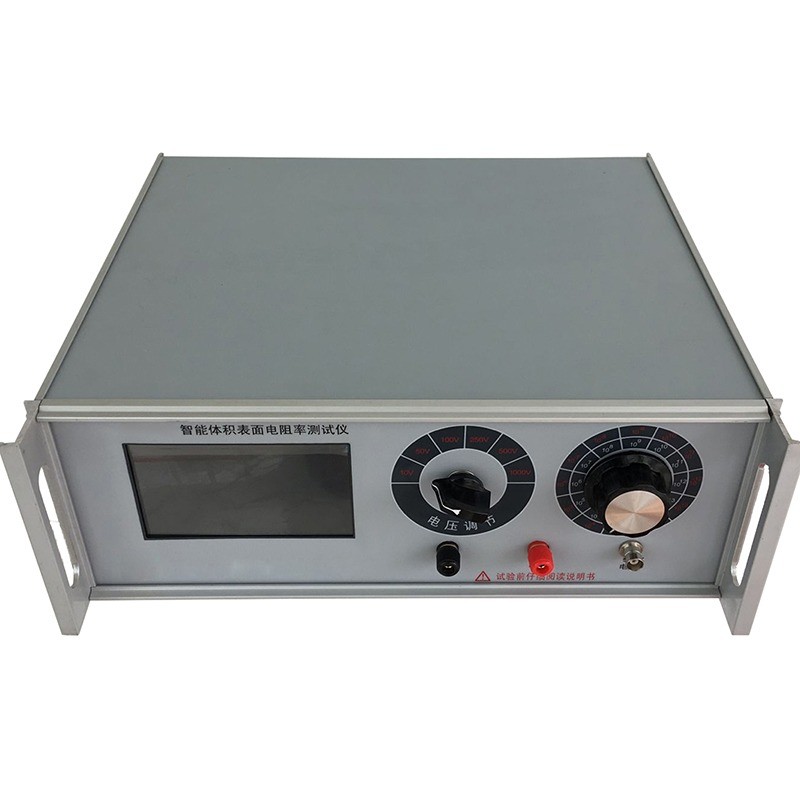

DX8488 Insulation Material Volume Resistance (Surface Resistance) Tester

CN¥1,428.58/boxes >=1 boxes
Price
DX8488 Insulation Material Volume Resistance (Surface Resistance) Tester
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM, OBM, Software Reengineering
Place Of Origin: Guangdong, China
Brand Name: DAXIAN
Model Number: DX8488
Time Setting: 0~99S Adjustable
Resistance Measurement Range:: 0-2 10e17Ω. M
Measurement Voltage: 10V, 25V, 50V, 100V, 250V, 500V, 1000V
Standards: ASTM D257-2007
Weight: 15kg
External Dimensions: 500 350 250(mm
Power Supply: AC220V 50HZ
Highlight:

DX8488 insulation resistance tester

,

surface resistance measurement equipment

,

industrial volume resistance tester

Basic Infomation
Payment & Shipping Terms
Product Description

Suitable for measuring the insulation resistance of high resistance insulation materials, electrical products, various components, rubber and plastic used in wires and cables. The optional electrode box can measure the surface resistance and volume resistance of insulation materials.

Complies with the standards ASTM D257-2007 Volume Resistivity and GBT 1410-2006 Test Methods for Material Volume Resistivity and Surface Resistivity.

Main technical specification :

Measurement voltage: 10V, 25V, 50V, 100V (8500-9000), 250V, 500V, 1000V (1.3-1.4) optional

Resistance measurement range: 0-2×10e17Ω. m

Time setting: 0~99S adjustable

Power supply: AC220V 50HZ

External dimensions: 500×three hundred and fifty×250 (mm)

Weight: 15kg



DX8488 Insulation Material Volume Resistance (Surface Resistance) Tester 0





Volume resistance/surface resistance test electrode

(1) Back electrode (2) Inner electrode (3) Circular outer electrode (4) Tested sample





















Our Services

1. Ensure the high quality of the product.

2. Packaging can be done according to customer requirements and pictures can be attached before shipment.

3. Transport professional documents

4. Provide professional product consultation before sales, and we guarantee to answer any professional technical questions you may have within 48 hours; Provide timely product technical services after sales, and provide solutions within three working days.

5. Our engineers provide professional after-sales service

6. The warranty period is 12 months. During the warranty period, we are responsible for providing free maintenance, upkeep, and replacement of damaged and defective parts (under normal use) for the user's equipment. After the free warranty ends, service fees will be charged at your discretion.

7. Provide the fastest response to maintenance and assistance requests from users. After the user submits a maintenance request, ensure to provide professional technical support in the shortest possible time and in the fastest way possible.



DX8488 Insulation Material Volume Resistance (Surface Resistance) Tester 1
