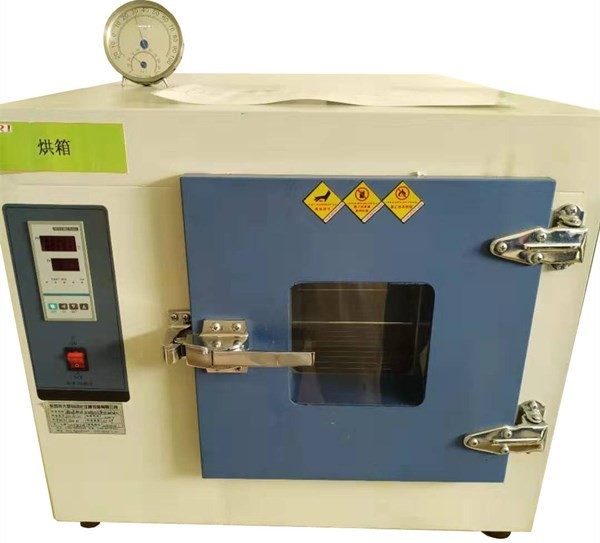

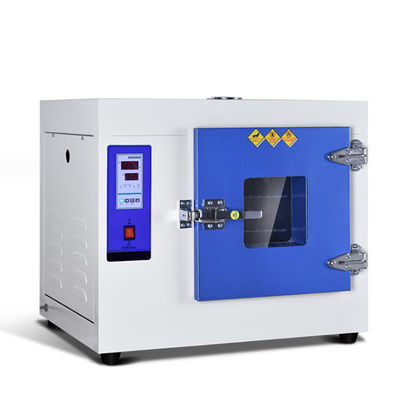

Product overview and usage
This product uses circulating air for constant temperature drying, with a high degree of intelligence, no need for special supervision, and the temperature is adjusted according to the user's intelligent automatic control, so as to achieve the drying effect in the shortest time. Its working temperature can be from room temperature to the maximum, and the working temperature can be arbitrarily selected within this range, and the temperature can be kept constant by the automatic control system in the box after selection. It is equipped with an electric blower to promote the mechanical convection of indoor hot air and make the indoor temperature more uniform.
Performance indicators
Note: When the ambient temperature is +5~+35°C, the performance is stabilized for 2 hours without test load. In addition, the temperature rise and fall time refers to the performance of the power supply voltage with a normal supply voltage and an ambient temperature of +25±5°C.
Equipment structure
This equipment is composed of imported high-quality library board, and the high-efficiency insulation cotton is used as the insulation layer material between the studio and the box shell, which has good insulation effect and is safe and environmentally friendly. Open the exhaust valve on the top of the box to exchange the hot and cold air in the studio, and the temperature control is automatically adjusted by the thermal expansion controller or digital display instrument. All electrical operating equipment is installed in the control layer on the side of the box. There are side doors in the control level that can be removed for inspection or repair of wiring.
1. Temperature performance index
Temperature range RT ~ +220 °C
Temperature fluctuation: ≤±2°C
Temperature uniformity: ≤±5°C
Temperature rise time RT~ 200 °C within 30 minutes (no load)
2. Box material and internal and external dimensions of the box
Exterior materials: high-quality imported cold-rolled steel plate baking paint
Interior material: 304# steel plate
Thermal insulation material: high-quality insulation cotton
Dimensions (m) Inner dimensions IH 1.2 × IW 0.8 × ID 0.8 M
The outer dimensions are about IH 1.85 × IW 1.35 × ID 1.1 M
Internal capacity: 800L
3. Device configuration
(1) Power supply: AC380V 50Hz
Allowable voltage fluctuation range: ±5% of rated value
(However, the operating range is ±10%)
(2) Maximum load capacity: 12KW
(3) Maximum current: 60A
(4) When placing the box, pay attention to the distance from the wall should be greater than 100mm.
Detailed technical data
Workroom size: mm 1800mm×1200mm×800mm
Technical parameters
Temperature range RT+10℃~+200℃
Volatility/Uniformity ±0.5℃/2±℃
Rate of warming 3°C/min nonlinear
Cabinet material
Outer box material High-quality imported cold-rolled steel plate
Inner box material High quality 304 steel plate
Insulation Superfine thermal insulation foam/rigid polyurethane foam
Door sealing Double-layer high and low temperature resistance, anti-aging and hardened refined silicone sealing strip
Heat and cold exchange system
Controllers
Imported intelligent temperature control instruments It has the function of P.I.D automatic calculation, and has high accuracy
Temperature sensor Platinum resistor PT100Ω/MV
Circulatory system Temperature-resistant and low-noise motor, single-cycle, elongated shaft, stainless steel multi-leaf centrifugal blade
Heating method Isolated stainless steel heating tubes
Timer function 0.1~99.99(S,M,H)
Security devices Power leakage, over-temperature protection (with audible prompt), fast fuse
Standard configuration 2 layer disks
Supply voltage AC 380V·50HZ
Use ambient temperature 15℃~+30℃≤85%R.H
Main configurations:
Name Quantity Specification Material
Outer box material 1 High-quality electrostatic spraying
Cold-rolled steel plate Inner box material 1 Stainless steel plate
Insulation 1 High density Rigid polyurethane foam
Door sealing 1 Double-layer high and low temperature resistance, anti-aging and hardening refining Silicone seals
Controller 1 Intelligent P.I.D
Temperature sensor 1 Platinum resistors
Motor 1 Temperature-resistant and low-noise type
Multi-leaf centrifugal blades 1 Single-cycle, extended shaft Stainless steel
Stainless steel heating tubes 1 Isolated
Boxes and equipment
1. Equipment
Original imported Omron temperature control (plus over-temperature meter) button controller
Running time: 0~9999 minutes
It is controlled by a high-power relay heating element
The temperature controller adopts imported P+I+D mode to control the temperature heating
The control system of the whole machine adopts the design of electromagnetic contactor
Digital display high-precision timer, the length of baking time at constant temperature can be set
Multi-color indicator light to indicate the use of the oven
It has the function of over-temperature or baking completion indication, and has an indicator light alarm system
Equipped with an over-temperature preventer, it automatically protects and stops heating after abnormal over-temperature
No fuse switch protection, automatic power stop when abnormal overload
2. Heating system
The left and right sides of the box are equipped with Taiwan nickel-chromium heating pipes
Blower: Centrifugal multi-blade fan
Wind transportation mode: 1 set of 2HP long-axis motor left and right horizontal and transverse air transportation to ensure uniform temperature.
Heater: Anti-vibration Anti-Collision Fin Heater (Nichrome)
Temperature Sensor: PT100 RTD (Dry Bulb)
3. Ventilation system
The left and right sides have an 80MM vent, the ventilation effect is remarkable.
Safety devices
Temperature overrise preventer (to protect the test product and test chamber)
High-speed loop protector (protection of heating circuits)
Motor (blower) overload thermal relay (protection blower overload)
Circuit breakers that protect electric motors
Ancillary functions
Timer function (auto-start and auto-stop)
Alarm display function
