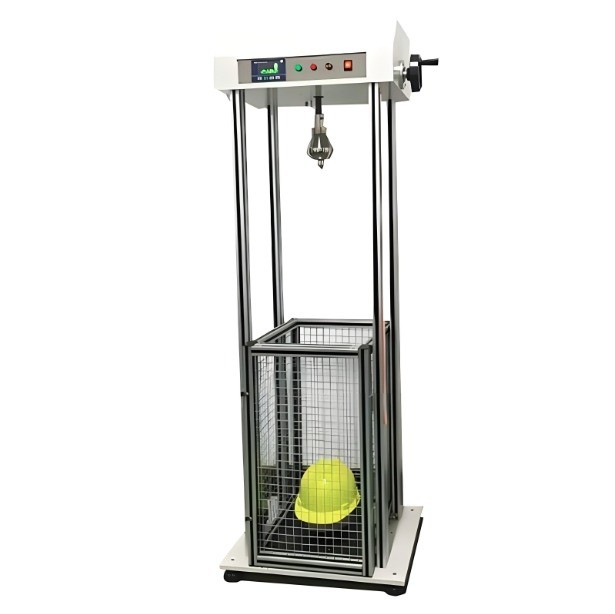

CF9028 Helmet Impact and Penetration Resistance Tester GB/T2812-2006

1 Set
MOQ
US$2000-$30000
Price
CF9028 Helmet Impact and Penetration Resistance Tester GB/T2812-2006
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM, OBM, Software Reengineering
Place Of Origin: Guangdong, China
Model Number: CF9028
Weight Of Impact Hammer: 5 Kilograms
Weight Of Puncture Resistant Knife: 3 Kilograms
The Impact Head Is Hemispherical: 96mm
Force Measurement Range: 0-60000 N
Highlight:

Impact and Penetration Resistance Tester

,

GB/T2812-2006 Helmet Tester

Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T,Cash,L/C,Western Union,MoneyGram
Supply Ability: 5 units per month
Product Description

Compliant with standards: According to GB/T2812-2006, it also meets the requirements of the European standard EN397 test standard.



Scope of application: Specialized in testing the impact resistance and penetration resistance of safety helmets. The aluminum headform wearing the safety helmet is mounted on a highly sensitive force sensor, and then impacted from a height of 1m using a 5kg steel hammer. The force value at the moment of impact is measured by the highly sensitive force sensor to determine the impact absorption performance of the safety helmet. After replacing the impact hammer head, the penetration resistance test can be conducted.



Main features: The impact and wear resistance testing machine for safety helmets is equipped with LCD display, which is safe to use, reliable, and has high measurement accuracy.

Main technical parameters and their accuracy:

1. Weight of impact hammer: 5 kilograms

2. Weight of puncture resistant knife: 3 kilograms

3. The impact head is hemispherical:  96mm

4. Aluminum head mold: one for size 2 and one for size 5 respectively

5. Impact method: guided descent

6. Impact height: 1m, 2m, 2.5m (optional)

7. Force measurement range: 0-60000 N

8. Force sensor: precision piezoelectric type

9. Display method: LED LCD displays at noon, automatically maintains maximum force value, and prints test data

10. Frequency response range: 5--1000Hz

11. Lifting device: Electric lifting with upper and lower limit positions

12. Penetration resistance impact hammer weight: 3+0.050kg

13. Penetration resistance impact hammer cone angle: 60 °

14. Penetration resistance impact hammer tip radius: r=0.5 mm



Main configuration sheet

One computer

A set of computer control software

One color inkjet printer

One test host

Aluminum head mold: one for size 2 and one for size 5 respectively

Force sensor: precision piezoelectric type

Lifting device: Electric lifting with upper and lower limit positions

Compliant with standards: According to GB/T2812-2006, it also meets the requirements of the European standard EN397 test standard.

Scope of application: Specialized in testing the impact resistance and penetration resistance of safety helmets. The aluminum headform wearing the safety helmet is mounted on a highly sensitive force sensor, and then impacted from a height of 1m using a 5kg steel hammer. The force value at the moment of impact is measured by the highly sensitive force sensor to determine the impact absorption performance of the safety helmet. After replacing the impact hammer head, the penetration resistance test can be conducted.

Main features: The impact and wear resistance testing machine for safety helmets is equipped with LCD display, which is safe to use, reliable, and has high measurement accuracy.

Main technical parameters and their accuracy:

1. Weight of impact hammer: 5 kilograms

2. Weight of puncture resistant knife: 3 kilograms

3. The impact head is hemispherical:  96mm

4. Aluminum head mold: one for size 2 and one for size 5 respectively

5. Impact method: guided descent

6. Impact height: 1m, 2m, 2.5m (optional)

7. Force measurement range: 0-60000 N

8. Force sensor: precision piezoelectric type

9. Display method: LED LCD displays at noon, automatically maintains maximum force value, and prints test data

10. Frequency response range: 5--1000Hz

11. Lifting device: Electric lifting with upper and lower limit positions

12. Penetration resistance impact hammer weight: 3+0.050kg

13. Penetration resistance impact hammer cone angle: 60 °

14. Penetration resistance impact hammer tip radius: r=0.5 mm



Main configuration sheet

One computer

A set of computer control software

One color inkjet printer

One test host

Aluminum head mold: one for size 2 and one for size 5 respectively

Force sensor: precision piezoelectric type

Lifting device: Electric lifting with upper and lower limit positions



Our Services

1. Ensure the high quality of the product.

2. Packaging can be done according to customer requirements and pictures can be attached before shipment.

3. Transport professional documents

4. Provide professional product consultation before sales, and we guarantee to answer any professional technical questions you may have within 48 hours; Provide timely product technical services after sales, and provide solutions within three working days.

5. Our engineers provide professional after-sales service

6. The warranty period is 12 months. During the warranty period, we are responsible for providing free maintenance, upkeep, and replacement of damaged and defective parts (under normal use) for the user's equipment. After the free warranty ends, service fees will be charged at your discretion.

7. Provide the fastest response to maintenance and assistance requests from users. After the user submits a maintenance request, ensure to provide professional technical support in the shortest possible time and in the fastest way possible.
