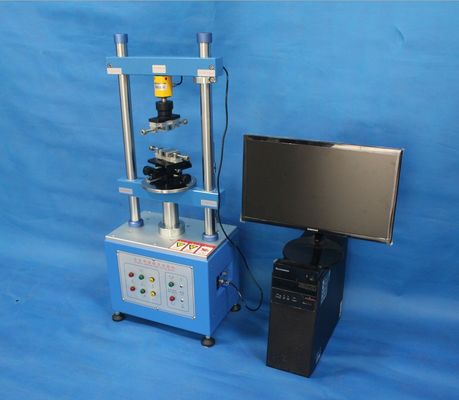

Fully Automatic Plugging Force Testing Machine

1 Set
MOQ
US$2000-$30000
Price
Fully Automatic Plugging Force Testing Machine
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 YEAR
Customized Support: OEM, ODM, OBM, Software Reengineering
Place Of Origin: Guangdong, China
Brand Name: CHENGFENG
Function: For The Insertion Force And Pull-out Force Test
Dimension: 360*260*940(mm)
Weight: 76kg
Power Supply: 220V
Highlight:

Plugging Force Testing Machine

,

Fully Automatic Force Testing Machine

Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T,Cash,L/C,Western Union,MoneyGram
Supply Ability: 5 units per month

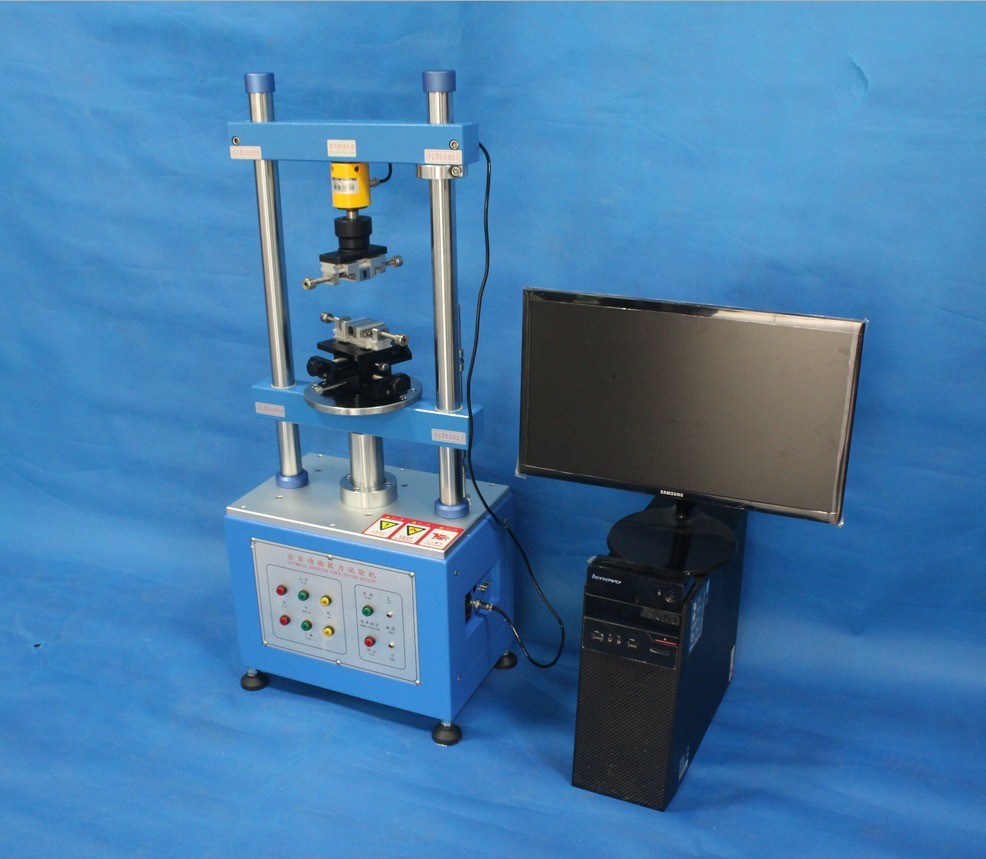

Product Description

1. Functional use:

The automatic plugging force testing machine is suitable for the insertion force and pull-out force test of various connectors and other products, and will be able to obtain a completely accurate plugging force test, using Windows, Windows Chinese screen setting, the operation is simple and convenient, and all data can be stored (test conditions, displacement curves, life curves, inspection reports--- etc.).

At the same time, it solves the fixture problem of various connector tests, and the male and female connectors can be automatically aligned during the test, and there will be no unilateral problem.



2. Technical parameters

Maximum load: 50kg

Minimum resolution: 0.01gf

Maximum measuring stroke: 150mm

Speed range: 0-300mm/min

X, Y axis moving range: 0-75mm

Transmission mechanism: ball screw

Appearance size: 360*260*940mm

Minimum trimming distance: 0.01mm

Weight: 76kg

Power supply: 220V



3. Introduction of testing machine software:

3.1 Main test items:

 Test of attenuation curve analysis of connector mating and unplugging life;

 Connector whole row plugging test, single PIN retention force test;

 Plugging force and displacement, and pull-out force and displacement test of connector products;

 Connector single-hole plugging test, connector Normal Force test;

 General compression and tensile failure test;

3.2 Main features:

 Printable and stored graphics (plugging displacement diagram, life curve diagram, inspection report);

 Beyond the original design, humanized machine surface test;

 The test data is stored on the hard disk (each data can be stored for unlimited times);

 The test conditions can be set by the computer screen, which is convenient and fast (including plugging and unplugging stroke, speed, pause time, etc.);

 The content of the header of the inspection report can be modified at any time (both Chinese and English);

 The inspection report can be transferred to . WORD, EXCEL, PDF for editing;

 With the dynamic impedance test system, the dynamic impedance can be tested at the same time as the plugging force and the "load-stroke-impedance curve" can be drawn.



4. Instrument protection device:

a. Instrument overload protection

b. Emergency stop device, upper and lower stroke limiting device.

c. The maximum value of the software setting parameter limits the upper limit protection.

5. The list of standard configurations of the instrument is as follows:

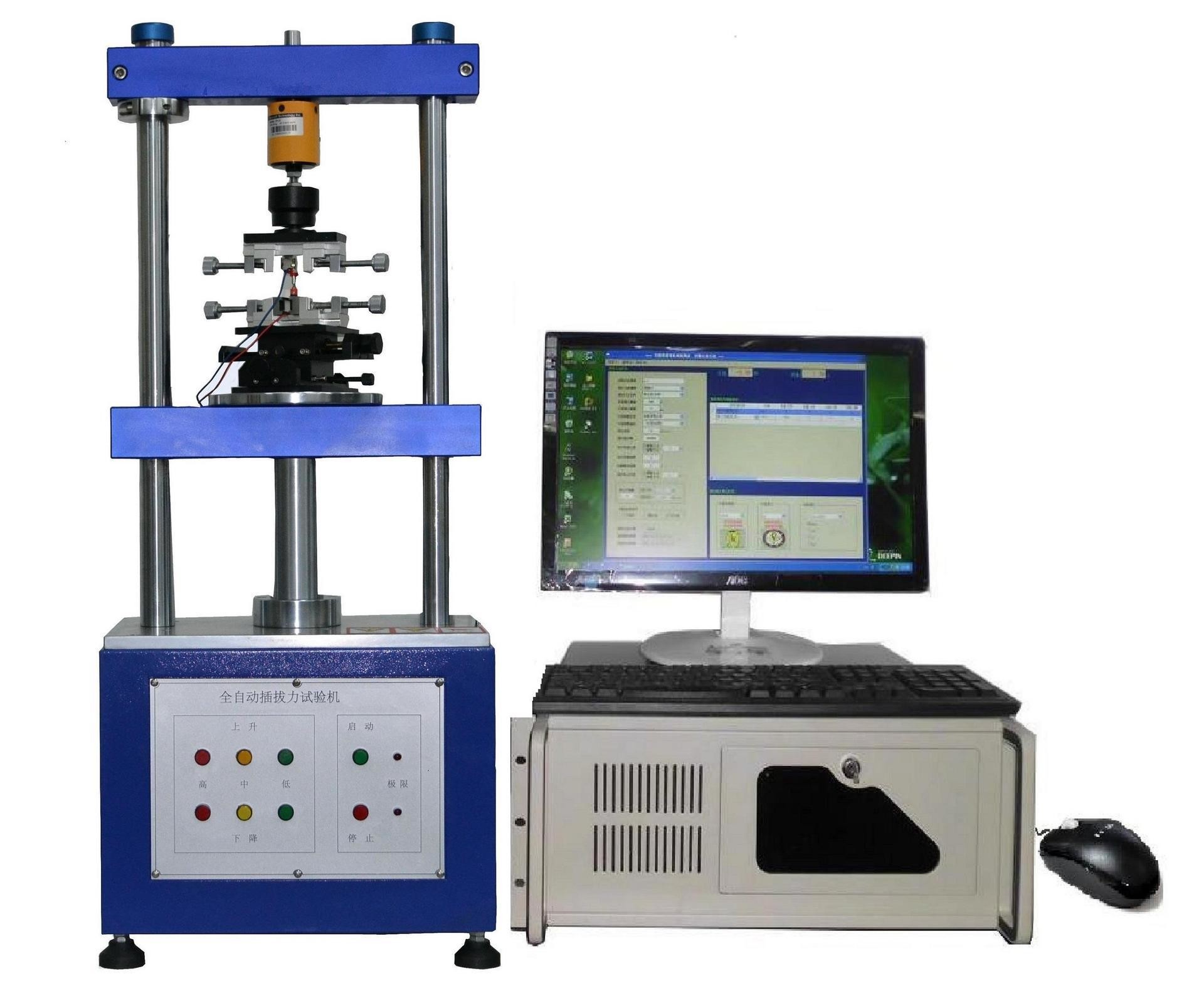

a.1220S test body

b. Control system: industrial computer, 17-inch LCD monitor

c. Load element 20kg

6. Interface diagram of instrument operation software

6.1 After opening the software package, the interface diagram of the main operating platform

Fully Automatic Plugging Force Testing Machine 0

6.2 Enter the measurement execution screen, curve graphics and data display interface

Fully Automatic Plugging Force Testing Machine 1

6.3 Automatically generated text report interface

Fully Automatic Plugging Force Testing Machine 2

After-sales service :

1. We guarantee that the goods fully comply with the quality, specifications and performance requirements stipulated in the contract;

2. Before delivery, we will conduct accurate and comprehensive testing of the products; Packing according to your requirements, pictures are attached before shipment for your confirmation, delivery is made on schedule, and professional shipping documents are provided;

3. We will provide you with quality service immediately, reply within 48 hours after receiving the quality message, and provide appropriate solutions within 3 working days;

4. After acceptance, our engineers will provide professional and technical services free of charge, such as video guidance and teaching, and on-site guidance and teaching if necessary;

5. We provide a 12-month warranty period, and in the event of quality problems during the product warranty period (not caused by human factors), we guarantee to provide free repair, maintenance and replacement of damaged and defective parts services;

In the event of any technical failure outside the warranty period, we will provide free telephone consultation services, and can also carry out paid repair and maintenance services;
